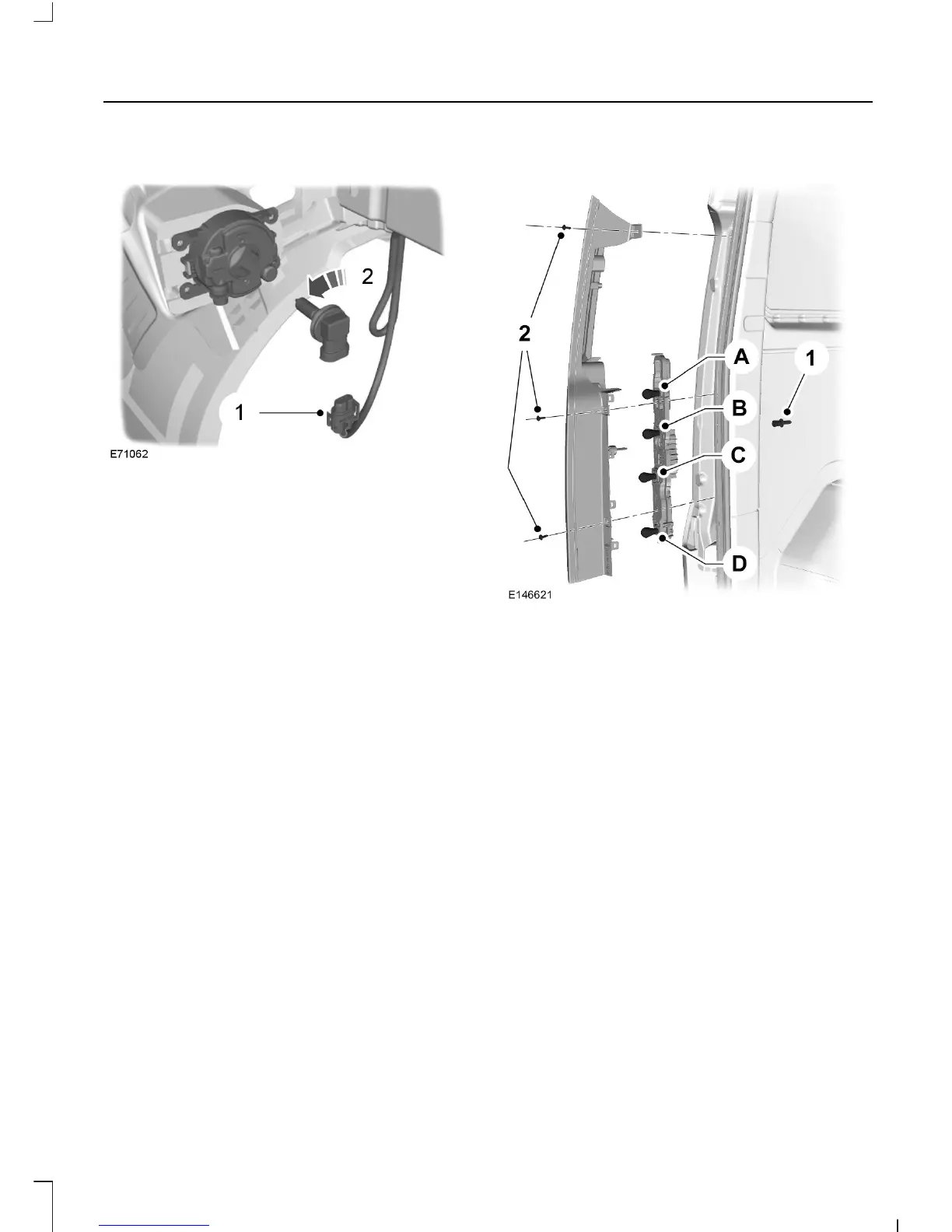

Front Fog Lamps
1. Disconnect the electrical connector.
2. Turn the bulb holder counterclockwise
and remove it.
Note: You cannot separate the bulb from
the bulb holder.
Rear Lamps
Tail and brake lampA
Direction indicatorB
Reversing lampC
Fog lampD
1. Remove the nut.
2. Remove the screws.
3. Remove the lamp and unclip the bulb
holder.
4. Gently press the bulb into the bulb
holder, turn it counterclockwise and
remove it.
157
Tourneo Custom/Transit Custom (TTF)
Maintenance
