Ford TRANSIT CUSTOM - Passengers Compartment Fuse Box

To Next Page

To Previous Page

Circuits switchedRelay

Low speed cooling fanR15

Not usedR16

Powertrain control moduleR17

High speed cooling fanR18

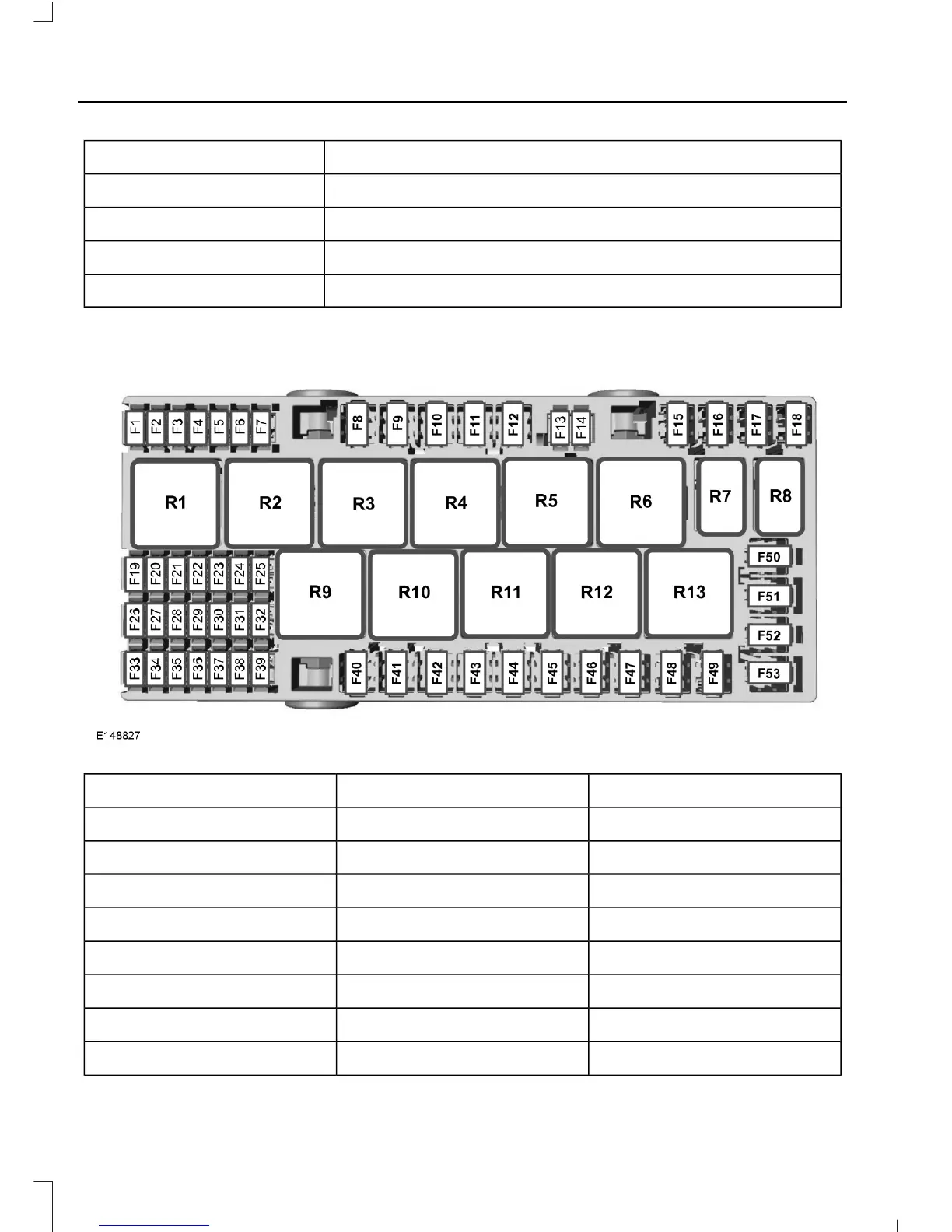

Passenger's Compartment Fuse Box

Circuits protectedFuse ratingFuse

Airbag module10 A1

Anti-lock braking system5 A2

Heated mirrors10 A3

Not used-4

Fuel fired heater20 A5

Tachograph5 A6

Not used-7

230V power outlet40 A8

138

Tourneo Custom/Transit Custom (TTF)
