Note: You may have to remove a cover to
gain access to the bulb.

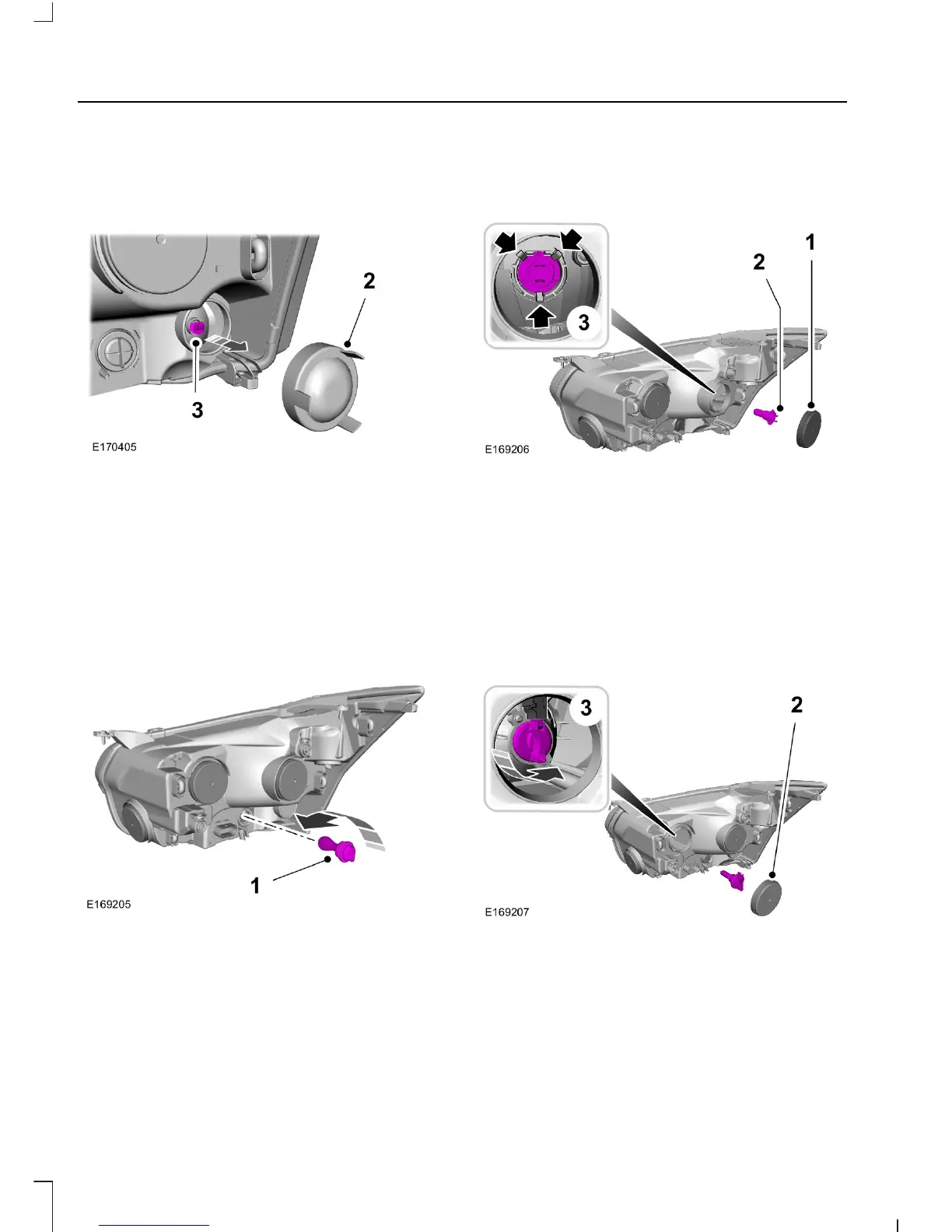

Side Lamp
1. Remove the headlamp. See
Removing a Headlamp (page 164).
2. Remove the cover.
3. Remove the bulb holder by pulling it
straight out. Remove the bulb.
Direction Indicator
Remove the headlamp. See Removing a
Headlamp (page 164).
1. Turn the bulb holder counterclockwise
and remove it.
2. Press the bulb in and turn the bulb
counterclockwise to remove it.
Headlamp Low Beam
Remove the headlamp. See Removing a
Headlamp (page 164).
1. Remove the cover.
2. Disconnect the electrical connector.
3. Pull the bulb straight out past the
retaining clips.
Note: Do not touch the glass of the bulb.
Headlamp High Beam
1. Remove the headlamp. See
Removing a Headlamp (page 164).
2. Remove the cover.
3. Turn the bulb counterclockwise and
remove it.
Note: Do not touch the glass of the bulb.
Note: You cannot separate the bulb from
the bulb holder.
166
Transit (TTG) Vehicles Built From: 19-06-2014, Vehicles Built Up To: 31-12-2014, EK3J-19A321-AKA (CG3612en) enGBR, Edition date: 04/2014, First Printing
Maintenance
