Ford Transit - Sliding Windows; Rear Quarter Windows

Note: Do not clean the housing or glass of
any mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products.
You can adjust the interior mirror to your
preference. Some mirrors also have a
second pivot point. This lets you move the
mirror head up or down and from side to
side.
Pull the tab below the mirror toward you
to reduce glare at night.
Auto-Dimming Mirror (If Equipped)
Note: Do not block the sensors on the front
and back of the mirror. Mirror performance
may be affected. A rear center passenger or
raised rear center head restraint may also
block light from reaching the sensor.
The mirror will dim automatically to reduce
glare when bright lights are detected from
behind your vehicle. It will automatically
return to normal reflection when you select
reverse gear to make sure you have a clear
view when backing up.

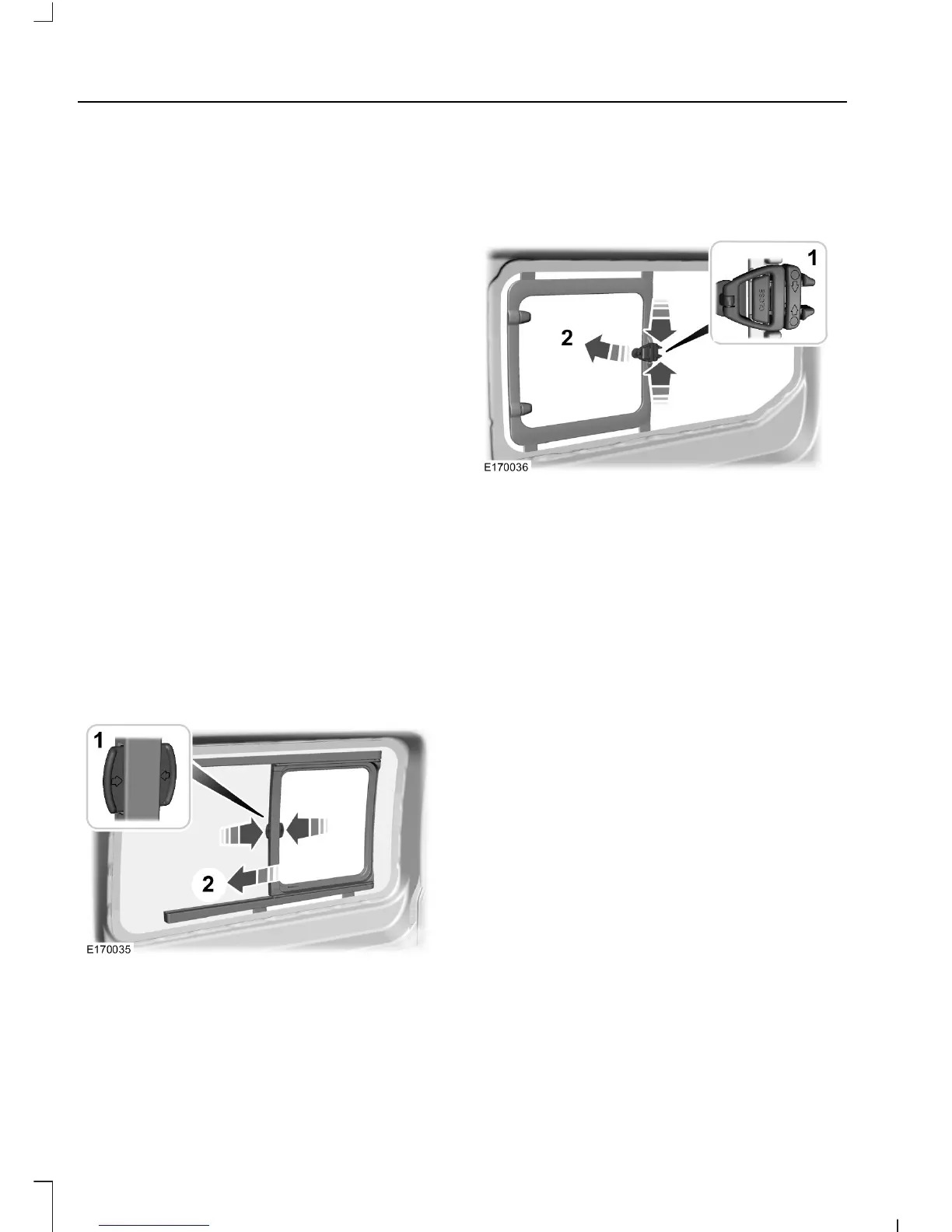

SLIDING WINDOWS
1. Press and hold the unlock button.
2. Slide the window.
REAR QUARTER WINDOWS
Opening the Rear Quarter
Windows
1. Press the unlock button to release the
catch.
Note: Depending on the lock type fitted,
you will have to either press the unlock
buttons together or down to release the
catch.
2. Hold the catch and push the window
open. Make sure the catch engages.
Closing the Rear Quarter Windows
1. Hold and pull the catch to close the
window.
2. Press the catch to engage the lock.
56
Transit (TTG) Vehicles Built From: 19-06-2014, Vehicles Built Up To: 31-12-2014, EK3J-19A321-AKA (CG3612en) enGBR, Edition date: 04/2014, First Printing
Windows and Mirrors
