Ford Transit - Rear Lamps; Central High Mounted Brake Lamp

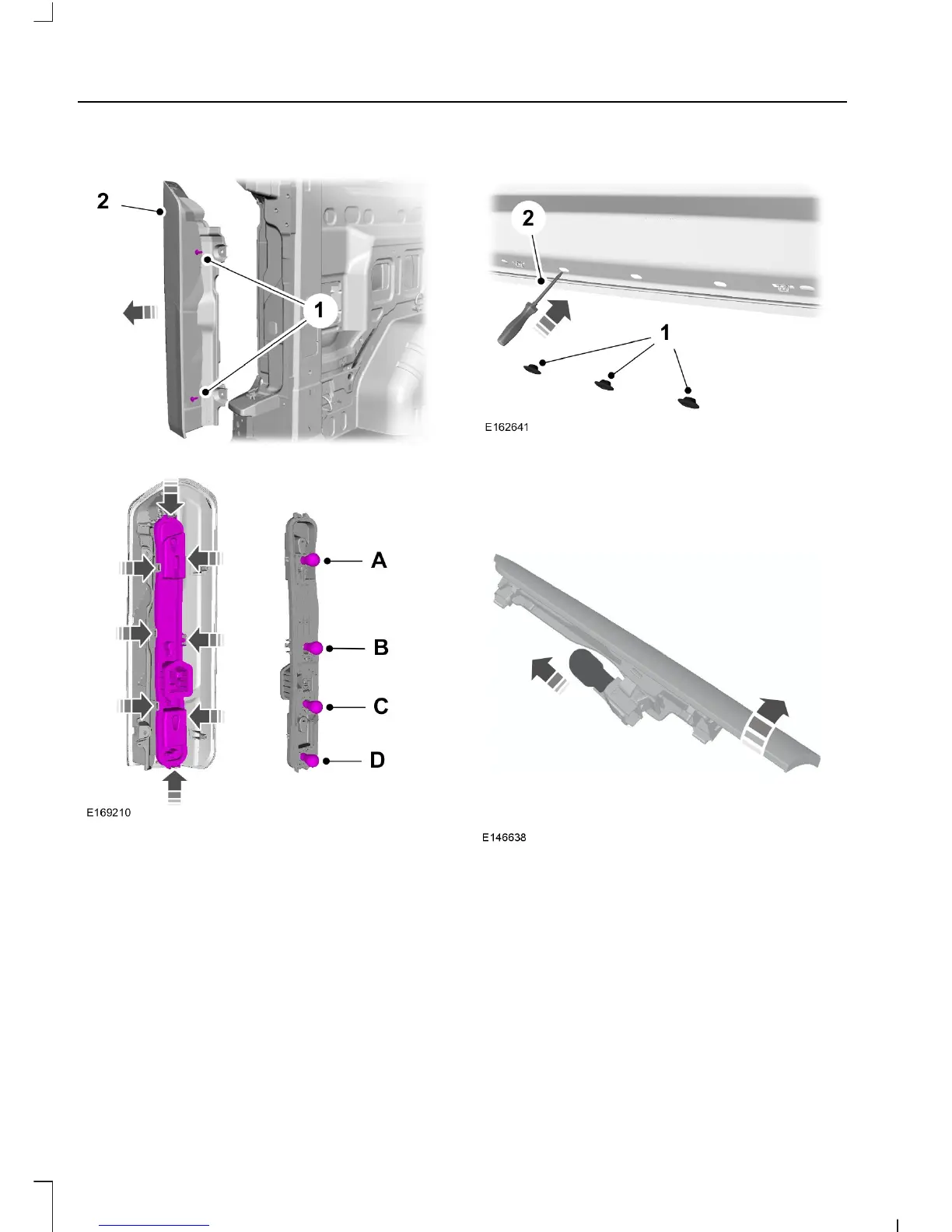

Rear Lamps
Tail and brake lampA
Direction indicatorB
Reversing lampC
Fog lampD
1. Remove the screws.
2. Remove the lamp and unclip the bulb
holder.
3. Press the bulb in and turn the bulb
counterclockwise to remove it.
Central High Mounted Brake Lamp
1. Remove the rubber grommets.
Note: If fitted, remove the trim panel first.
2. Using a screwdriver, gently prise the
clips to release the lamp.
3. Carefully remove the lamp.
4. Remove the bulb.
Note: LED lamps are not serviceable. See
an authorized dealer.
168
Transit (TTG) Vehicles Built From: 19-06-2014, Vehicles Built Up To: 31-12-2014, EK3J-19A321-AKA (CG3612en) enGBR, Edition date: 04/2014, First Printing
Maintenance
