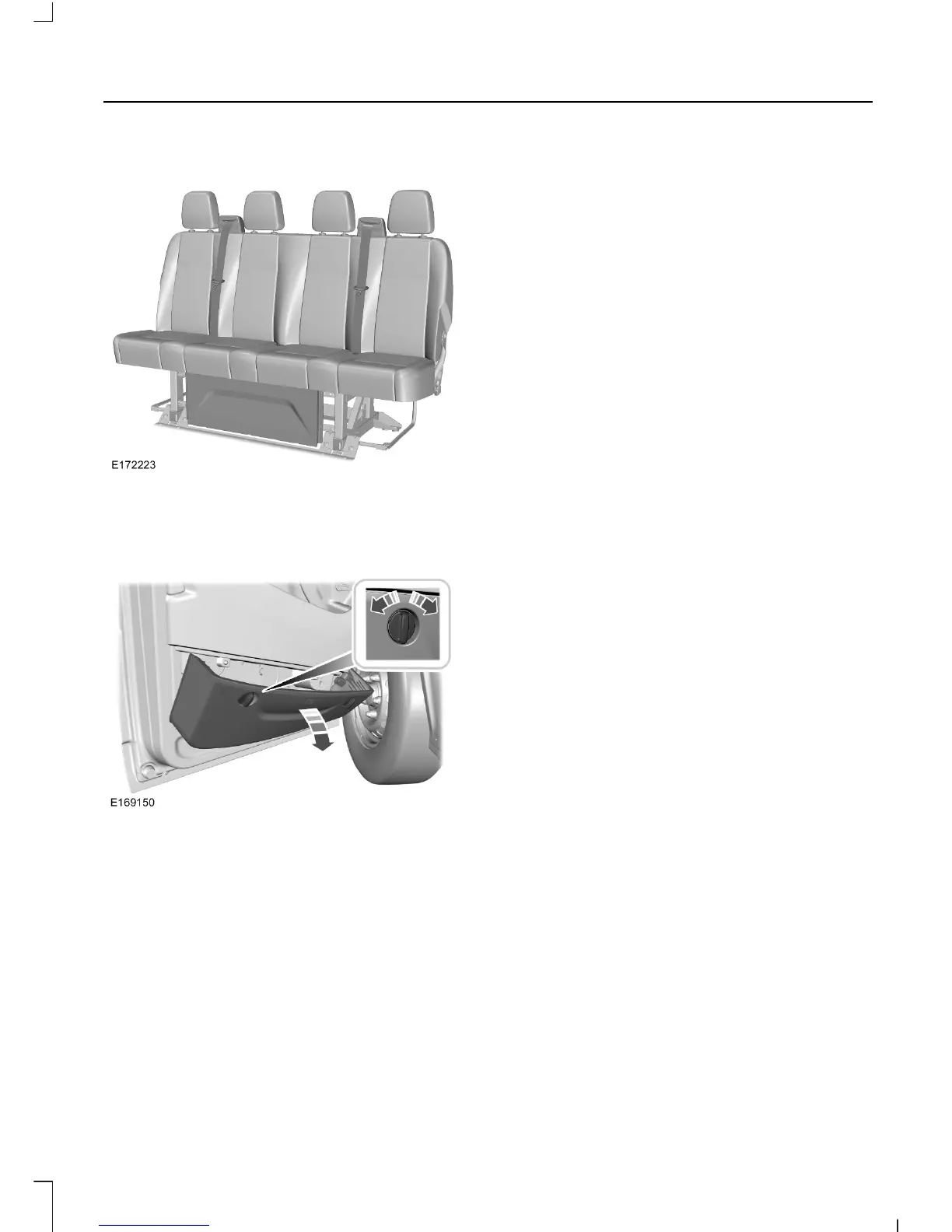

Under Seat Storage Guard

FRONT DOOR STORAGE

COMPARTMENT

Turn the retaining clips counterclockwise

to open the storage compartment.

95

Transit (TTG) Vehicles Built From: 19-06-2014, Vehicles Built Up To: 31-12-2014, EK3J-19A321-AKA (CG3612en) enGBR, Edition date: 04/2014, First Printing

Storage Compartments
