Ford Transit - Side Repeater

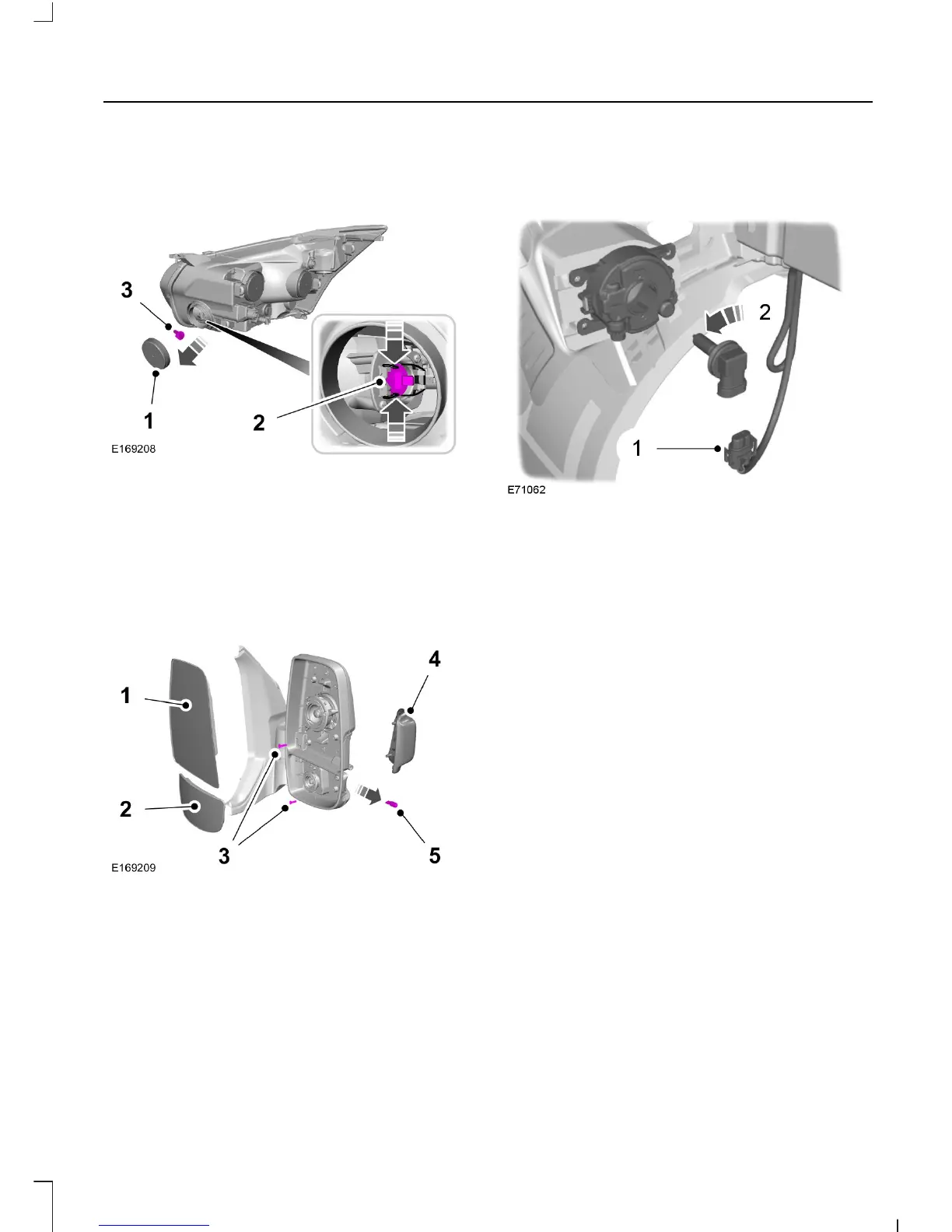

Cornering Lamp
Remove the headlamp. See Removing a
Headlamp (page 164).
1. Remove the cover.
2. Disconnect the electrical connector
and release the clip.
3. Remove the bulb.
Note: Do not touch the glass of the bulb.
Side Repeater
1. Remove the large mirror glass. Tilt the
mirror glass fully up, pull the mirror
glass toward you from the bottom.
2. Remove the small mirror glass. Tilt the
mirror glass fully down, pull the mirror
glass toward you from the top.
3. Remove the screws.
4. Remove the lamp lens.
5. Remove the bulb.
Front Fog Lamps
1. Disconnect the electrical connector.
2. Turn the bulb holder counterclockwise
and remove it.
Note: You cannot separate the bulb from
the bulb holder.
167
Transit (TTG) Vehicles Built From: 19-06-2014, Vehicles Built Up To: 31-12-2014, EK3J-19A321-AKA (CG3612en) enGBR, Edition date: 04/2014, First Printing
Maintenance
