FortiGate-200, FortiGate-300, FortiGate-400, FortiGate-500 and FortiGate-1000 FortiOS 3.0 MR4 Install Guide
18 01-30004-0267-20070215
Package Contents Installing the FortiGate unit
Mounting
The FortiGate-400 unit can be installed on any stable surface. The FortiGate-400
unit can also be mounted on a standard 19-inch rack. It requires 1 U of vertical
space in the rack.
Table 3: Technical specifications
FortiGate-500
The FortiGate-500 package contains the following items:
• FortiGate-500 Unified Threat Management System
• one orange crossover Ethernet cable (Fortinet part number CC300248)
• one gray straight-through Ethernet cable (Fortinet part number CC300249)
• one null-modem cable (Fortinet part number CC300247)
• one power cable
• two 19-inch rack mount brackets
• FortiGate-500 QuickStart Guide
• Fortinet Tools and Documentation CD

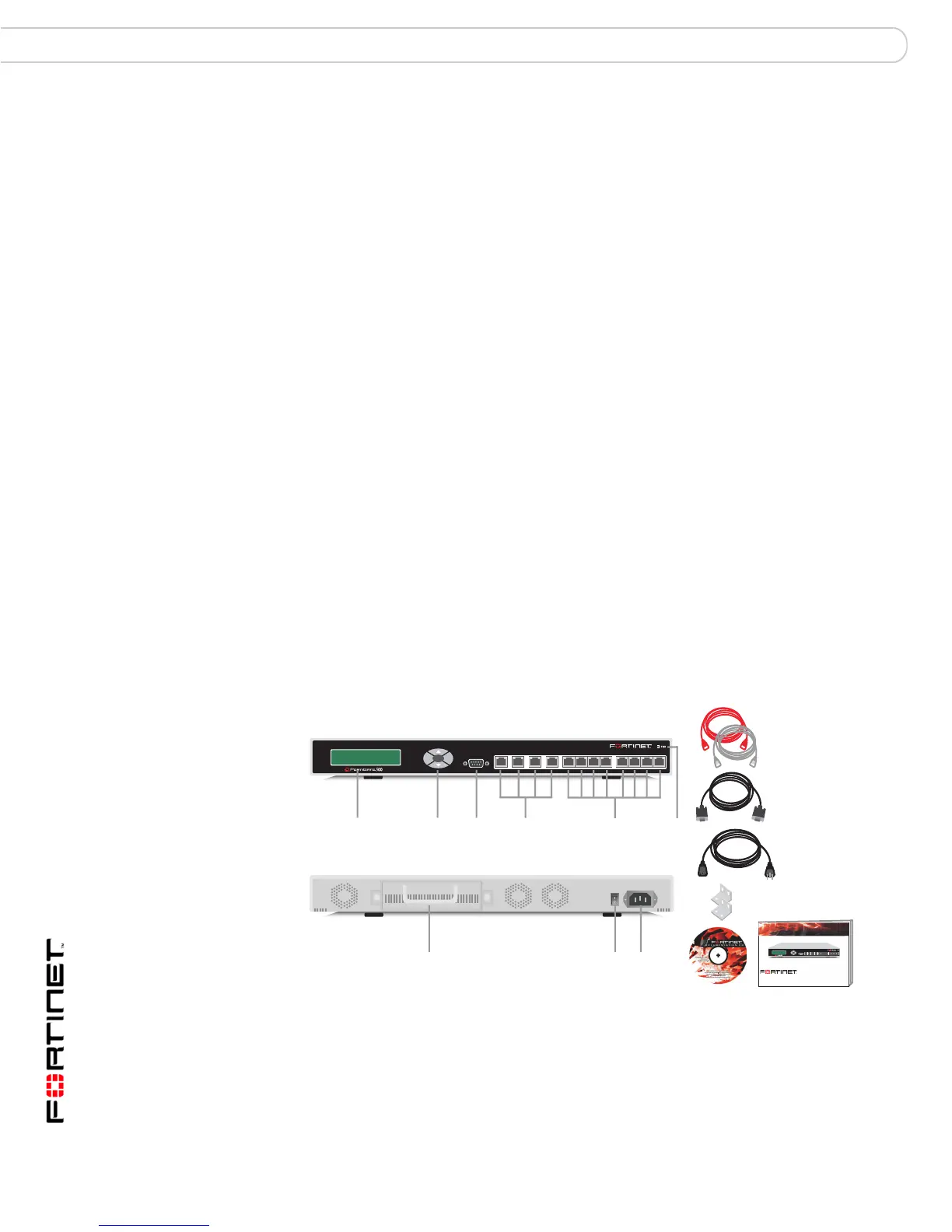

Figure 4: FortiGate-500 package contents
Mounting
The FortiGate-500 unit can be installed on any stable surface. The FortiGate-500
unit can also be mounted on a standard 19-inch rack. It requires 1 U of vertical
space in the rack.
Dimensions 16.75 x 12 x 1.75 in. (42.7 x 30.5 x 4.5 cm)
Weight 11 lb. (5 kg)
Power
requirements
Power dissipation: 180W (max.)
AC input voltage: 100 to 240VAC
AC input current: 4A
Frequency: 47 to 63Hz
Environmental
Specifications
Operating temperature: 32 to 104 F (0 to 40 C)
Storage temperature: -13 to 158 F (-25 to 70 C)
Humidity: 5 to 95% non-condensing
Front
Back
Esc Enter
HADMZ
INTERNAL
EXTERNAL 1 2 3 4 5 6 7 8
1 to 8
Interface
LCD Control
Buttons
Internal,External,DMZ
HA Interface
Power
Light
RS-232
Serial
Connection
Removable
Hard Drive
Power
Connection
Power
Switch
Power Cable
Rack-Mount Brackets
Null-Modem Cable
(RS-232)
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
FortiGate-500
