Installing the FortiGate unit Package Contents
FortiGate-200, FortiGate-300, FortiGate-400, FortiGate-500 and FortiGate-1000 FortiOS 3.0 MR4 Install Guide
01-30004-0267-20070215 19
Table 4: Technical specifications
FortiGate-1000
The FortiGate-1000 package contains the following items:
• FortiGate-1000 Unified Threat Management System
• two orange crossover Ethernet cables (Fortinet part number CC300248)
• two gray straight-through Ethernet cables (Fortinet part number CC300249)
• one null-modem cable (Fortinet part number CC300247)
• one power cable
• two 19-inch rack mount brackets
• FortiGate-1000 QuickStart Guide
• Fortinet Tools and Documentation CD

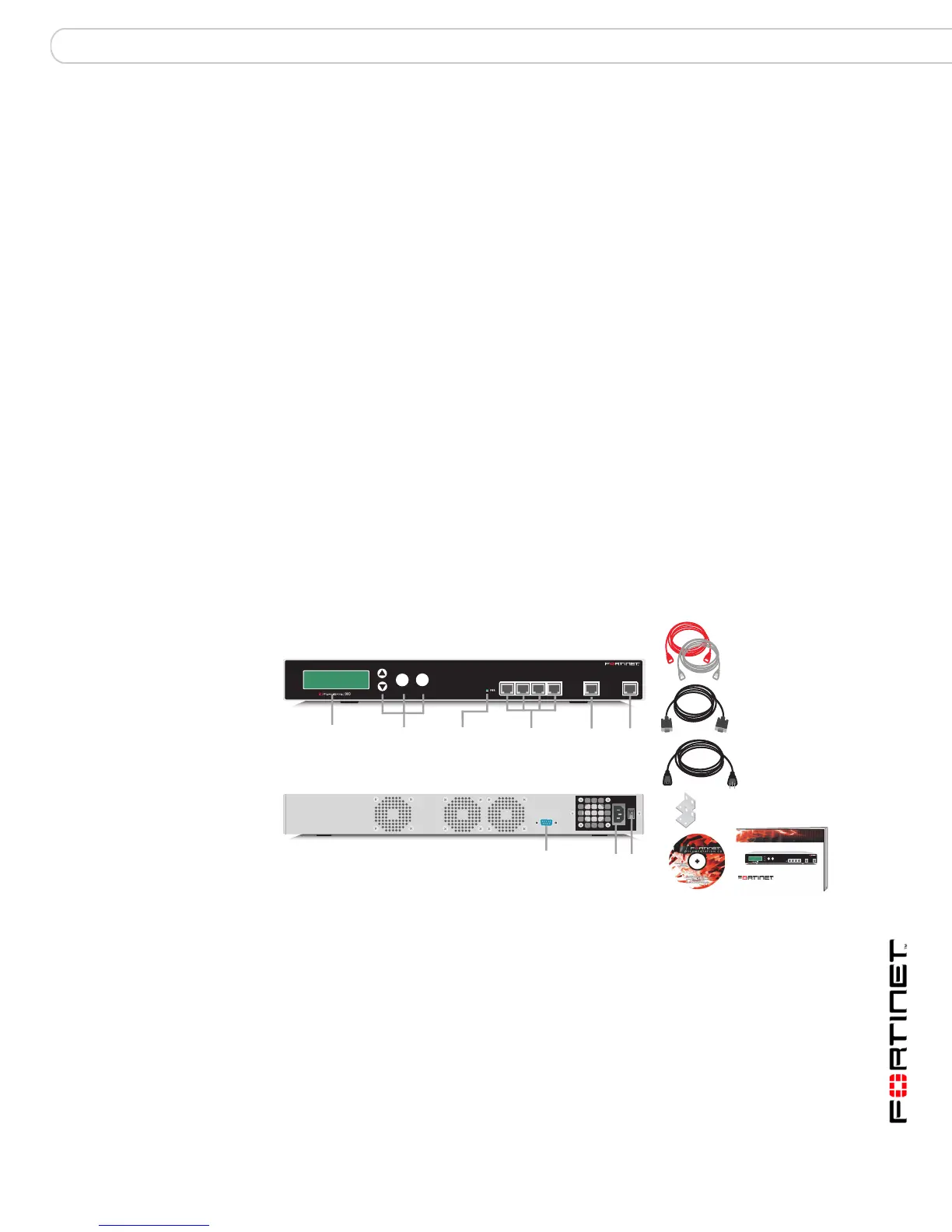

Figure 5: FortiGate-1000 package contents
Mounting
The FortiGate-1000 unit can be installed on any stable surface. The
FortiGate-1000 unit can also be mounted on a standard 19-inch rack. It requires
2 U of vertical space in the rack.
Dimensions 16.75 x 12 x 1.75 in. (42.7 x 30.5 x 4.5 cm)
Weight 11 lb. (5 kg)
Power
requirements
Power dissipation: 180W (max.)
AC input voltage: 100 to 240VAC
AC input current: 4A
Frequency: 47 to 63Hz
Environmental
Specifications
Operating temperature: 32 to 104 F (0 to 40 C)
Storage temperature: -13 to 158 F (-25 to 70 C)
Humidity: 5 to 95% non-condensing
Back View
Front View
RS-232 Serial
Connection
Power
Connection
Power
Switch
Esc
Enter
LCD Control
Buttons
Internal
Interface
INTERNAL
EXTERNAL
1 2 3 4 / HA
1, 2, 3, 4/HA
Interface
External
Interface
Power
Light
Power Cable
Rack-Mount Brackets
Null-Modem Cable
(RS-232)
Ethernet Cables:
Orange - Crossover x 2
Grey - Straight-through x 2
FortiGate-1000
