Installing the FortiGate unit Powering on the FortiGate unit
FortiGate-200, FortiGate-300, FortiGate-400, FortiGate-500 and FortiGate-1000 FortiOS 3.0 MR4 Install Guide
01-30004-0267-20070215 21

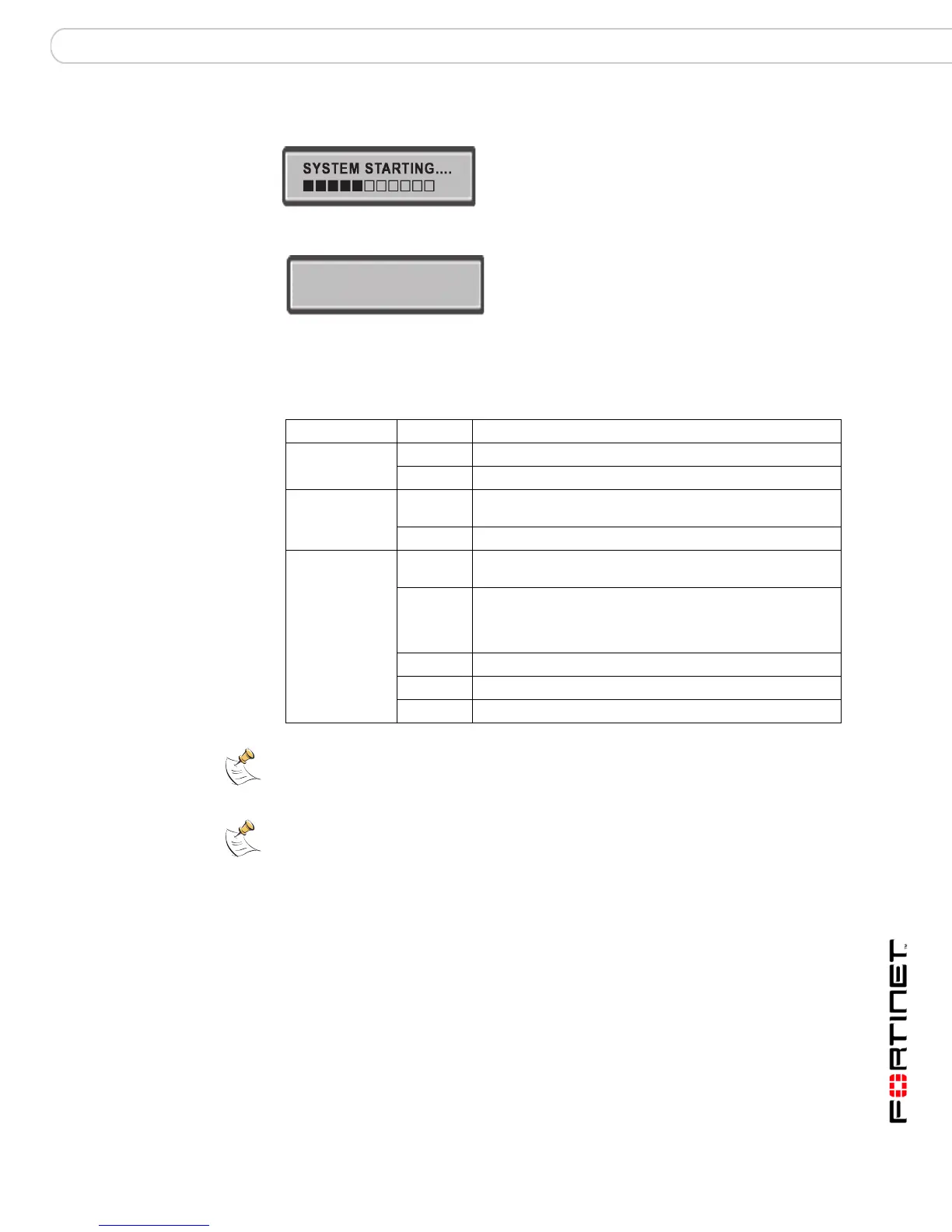

After a few seconds, SYSTEM STARTING appears on the LCD.
The main menu setting appears on the LCD when the system is running.
.
The FortiGate unit starts and the Power and Status LEDs light up. The Status LED
flashes while the FortiGate unit starts up, and remains off when the system is
running.
Table 6: LED indicators
Powering off the FortiGate unit
Always shut down the FortiGate operating system properly before turning off the
power switch to avoid potential hardware problems.
To power off the FortiGate unit
1 From the web-based manager, go to System > Status.
2 In the Unit Operation display, select Shutdown, or from the CLI enter:
execute shutdown
3 Turn off the power switch.
4 Disconnect the power cable from the power supply.
Menu [ Fortigat -> ]
NAT, Standalone
LED State Description
Power Green The FortiGate unit is powered on.
Off The FortiGate unit is powered off.
Status Flashing
Green
The FortiGate unit is starting up.
Off The FortiGate unit is powered on.
Internal
External
DMZ
HA
1 to 8
Green or
Amber
The correct cable is in use, and the connected equipment
has power.
Flashing
Green or
Flashing
Amber
Network activity at this interface.
Green The interface is connected at 100 Mbps.
Red The interfaces 5 and 6 are connected at 1000 Mbps.
Off No link is established.
Note: The FortiGate-200 and the FortiGate-300 both have green LED indicators, indicating
the links on those units. The FortiGate-400, FortiGate-500 and the FortiGate-1000 have
amber LED indicators that indicate the links on those units.
Note: The FortiGate-200 does not have front control buttons and LCD. If you have a
FortiGate-200, disregard all information concerning the front control buttons and LCD.
