Main Panel Ports
Power In (Micro-USB)
Phone Line In
Phone Line Out (Extension)
Wired Siren In
Wired Sensors BUS Bar
Once set up, the main panel’s power switch should be
turned ON, and the power cable should also be plugged
in. is will ensure that the internal backup battery will be
charging whenever the main panel is receiving power. If
the power switch is in the OFF position, the backup battery
is not charging.
Main Panel Power

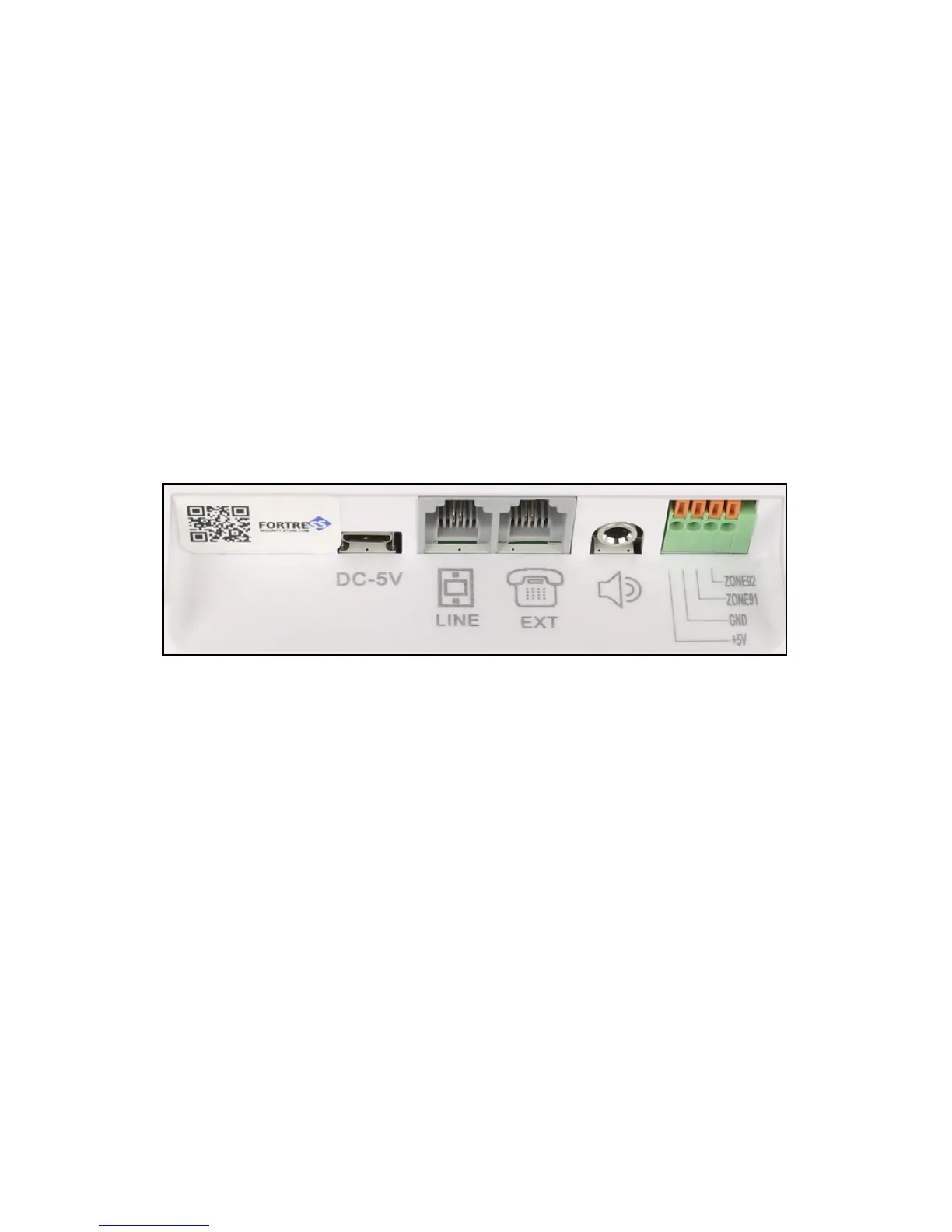

A close-up of the ports on the back of the main panel
