PART 1B
Ceiling Mounted Solo January 2003 Controller Settings

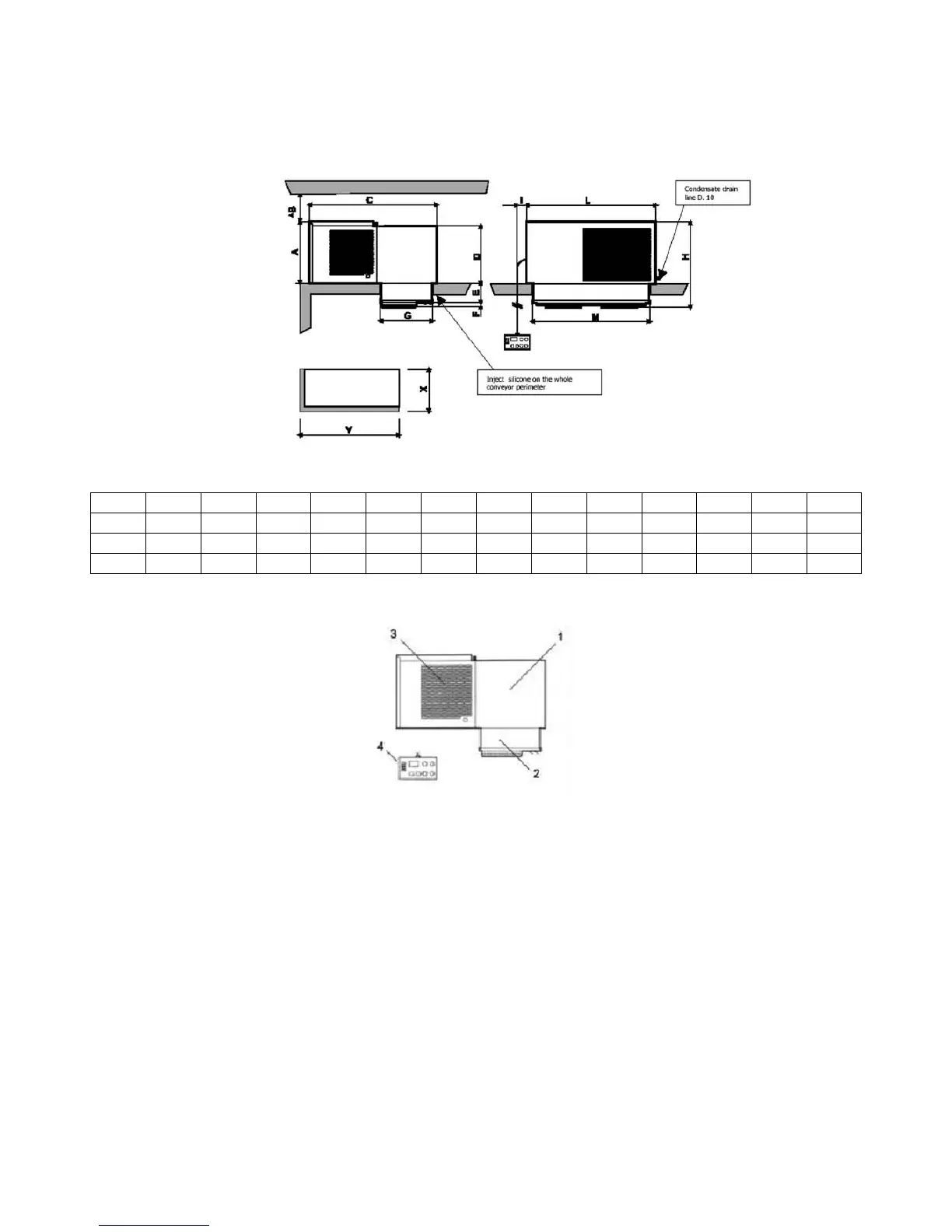

Dimensions
Description
1. Condensing unit and Evaporator (evaporator plaed in an insulated box) located outside of the coldroom.
2. Air inlet and outlet to the evaporator located inside the coldroom.
3. Electrical control panel located in the condensing unit enclosure.
4. Wall mounted control panel.
A B C D E F G H I L M X Y
SP1/SP2 357 250 719 340 122 28 332 506 60 620 545 337 550
SP3/SP4 390 250 809 360 122 28 332 540 60 820 745 337 750
SP5 427 250 929 410 122 98 452 645 60 820 745 458 750
17
