Foster Solo Plus - Wall Mount Units; Ceiling Mounted Units; Dimensions

PART 1A
Wall Mount Units
Ceiling Mounted Units
DIMENSIONS

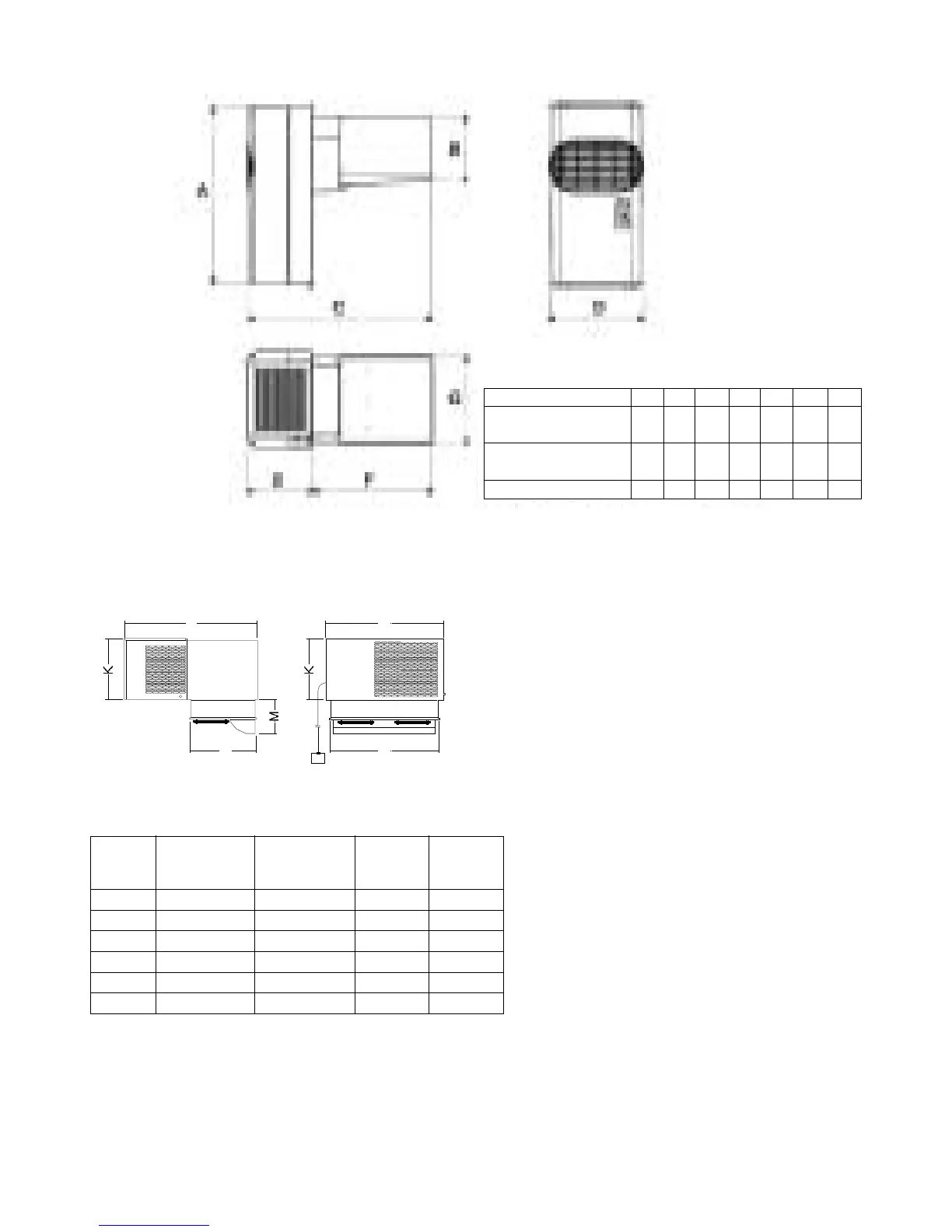

Solo Plus DRWG 1 d + e
N
J
H
I
MODEL CONDENSER UNIT EVAPORATOR UNIT PLUG SIZE CUT-OUT SIZE
A x B x C (mm) G x E x F (mm) W x H (mm) W X H (mm)
H x J x K (mm) I x M x N (mm)
SP 1 HC 620 x 719 x 357 545 x 150 x 332 545 x 332 550 x 337
SP 2 H & LC 620 x 719 x 357 545 x 150 x 332 545 x 332 550 x 337
SP 3 H & LC 820 x 809 x 390 745 x 150 x 332 745 x 332 750 x 337
SP 4 HC 820 x 809 x 390 745 x 150 x 332 745 x 332 750 x 337
SP 4 LC 820 x 929 x 427 745 x 220 x 452 745 x 452 750 x 458
SP 5 HC 820 x 929 x 427 745 x 220 x 452 745 x 452 750 x 458
1
Mod. A B C D E F G
SP101LW, SP101HW
735 264 790 400 280 510 368
SP201HW, SP301HW
SP201LW, SP401HW
830 264 790 620 280 510 585
SP501HW
SP301LW, SP601HW 830 364 982 620 350 632 585
