3. ACCESS TO THE UNIT COMPARTMENT / EVAPORATOR HOUSING
WALL MODEL
Front Panel: Grasp each side of the front panel and “pull forward” releasing it from the spring clips located
down each edge,it may be necessary to separate the front panel from the main body using a flat
blade screwdriver and gently ease away.
Condenser Fan After removing the front panel “pull upwards” the fan housing assembly releasing it from
Assembly: the 4 “spring clips” located in each corner, it may be necessary to separate the fan housing
assembly from the main body using a flat blade screwdriver and gently ease away.
Evaporator Fan Remove the screw securing the drain tube to the drip tray and remover the drain tube.
Remove the four screws securing the drain pan and remove.
Remove the three remaining screws securing the side panel and remove it allowing access into
the evaporator fan assembly.
4. CONTROLLER OPERATION

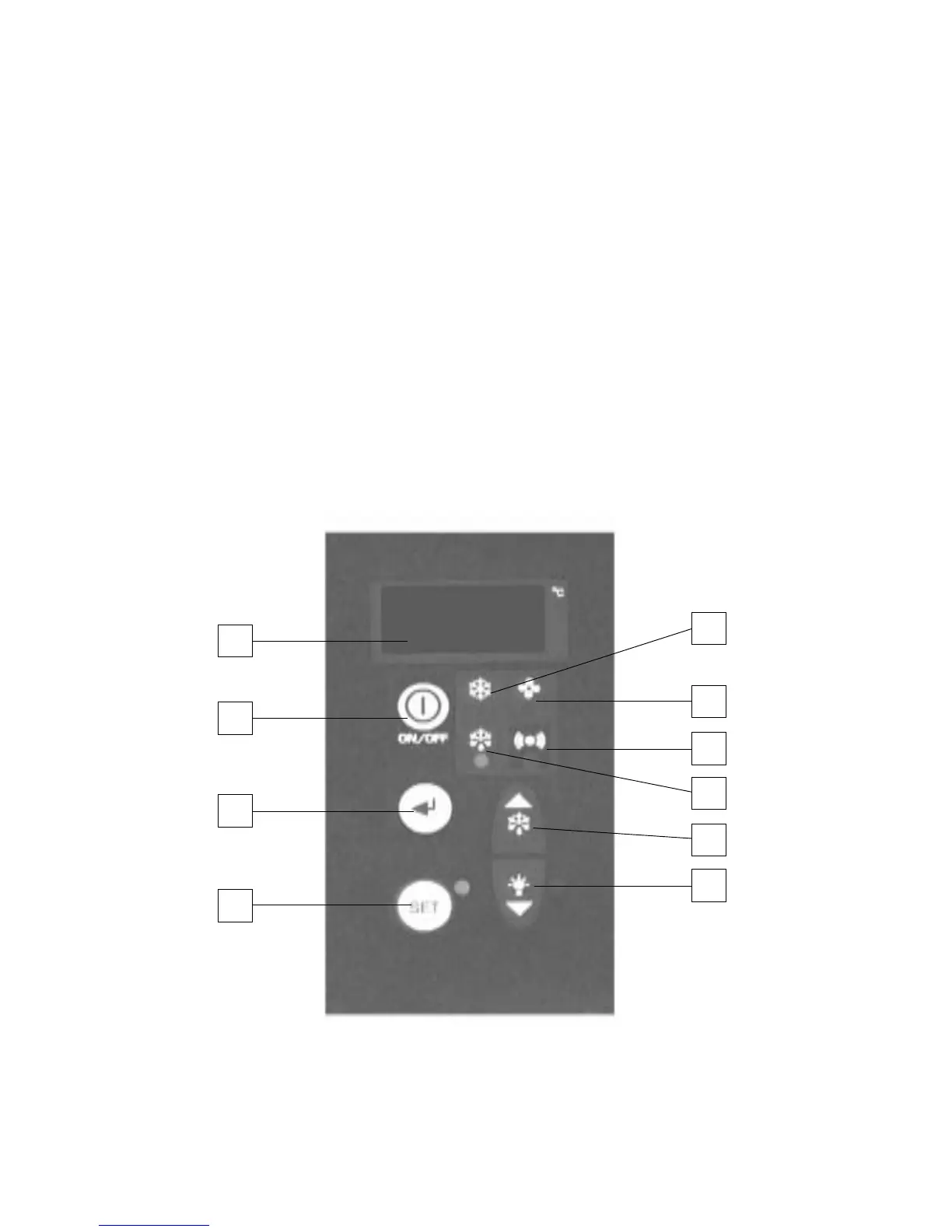

DESCRIPTION OF ELECTRONIC PANEL
5
9
10
6
1
2
4
3
8
7
3
