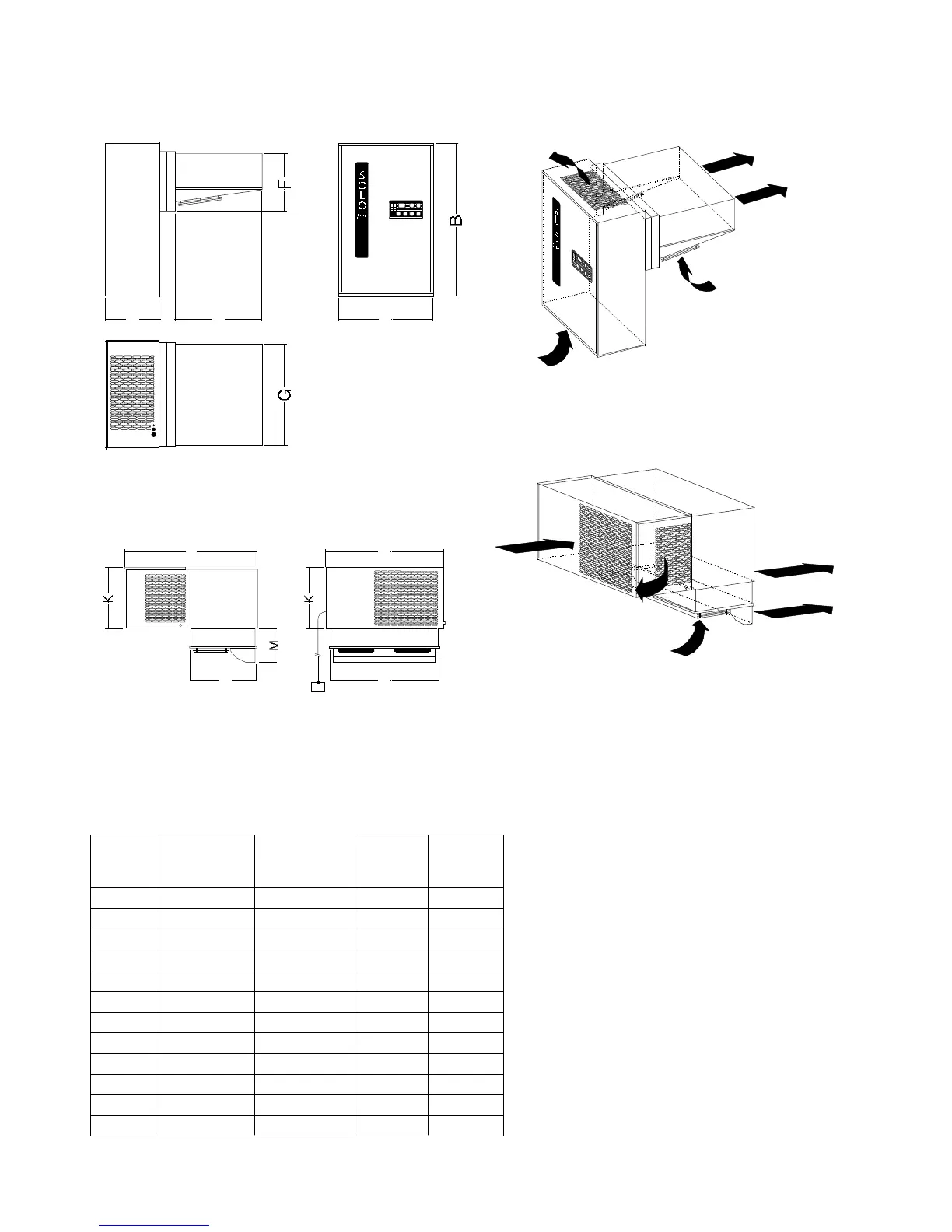

Foster Solo Plus - Wall Mounted Units, Ceiling Mounted Units; Air Flow Direction; Dimensions Table

WALL MOUNTED UNITS AIR FLOW DIRECTION
Wall mounted
Ceiling mounted
CEILING MOUNTED UNITS
DIMENSIONS
MODEL CONDENSER UNIT EVAPORATOR UNIT PLUG SIZE CUT-OUT SIZE
A x B x C (mm) G x E x F (mm) W x H (mm) W X H (mm)
H x J x K (mm) I x M x N (mm)
SP 1 H & LW 454 x 735 x 305 420 x 420 x 300 420 x 300 425 x 305
SP 2 H & LW 454 x 735 x 305 420 x 420 x 300 420 x 300 425 x 305
SP 3 H & LW 754 x 735 x 305 720 x 420 x 300 720 x 300 725 x 305
SP 4 HW 754 x 735 x 305 720 x 420 x 300 720 x 300 725 x 305
SP 4 LW 754 x 840 x 400 720 x 580 x 470 720 x 470 725 x 475
SP 5 H & LW 754 x 840 x 400 720 x 580 x 470 720 x 470 725 x 475
SP 1 HC 620 x 719 x 357 545 x 150 x 332 545 x 332 550 x 337
SP 2 H & LC 620 x 719 x 357 545 x 150 x 332 545 x 332 550 x 337
SP 3 H & LC 820 x 809 x 390 745 x 150 x 332 745 x 332 750 x 337
SP 4 HC 820 x 809 x 390 745 x 150 x 332 745 x 332 750 x 337
SP 4 LC 820 x 929 x 427 745 x 220 x 452 745 x 452 750 x 458
SP 5 HC 820 x 929 x 427 745 x 220 x 452 745 x 452 750 x 458
NOTE: W = wall mounted unit. C = ceiling mounted unit
Solo Plus DRWG 1 a + b + c
C
D
E
A
D=100mm
Solo Plus DRWG 1 d + e
N
J
H
I
Solo Plus 3D DRWG 1
Solo Plus 3D DRWG 2
