Foxconn H61MX Series User Manual

1
4

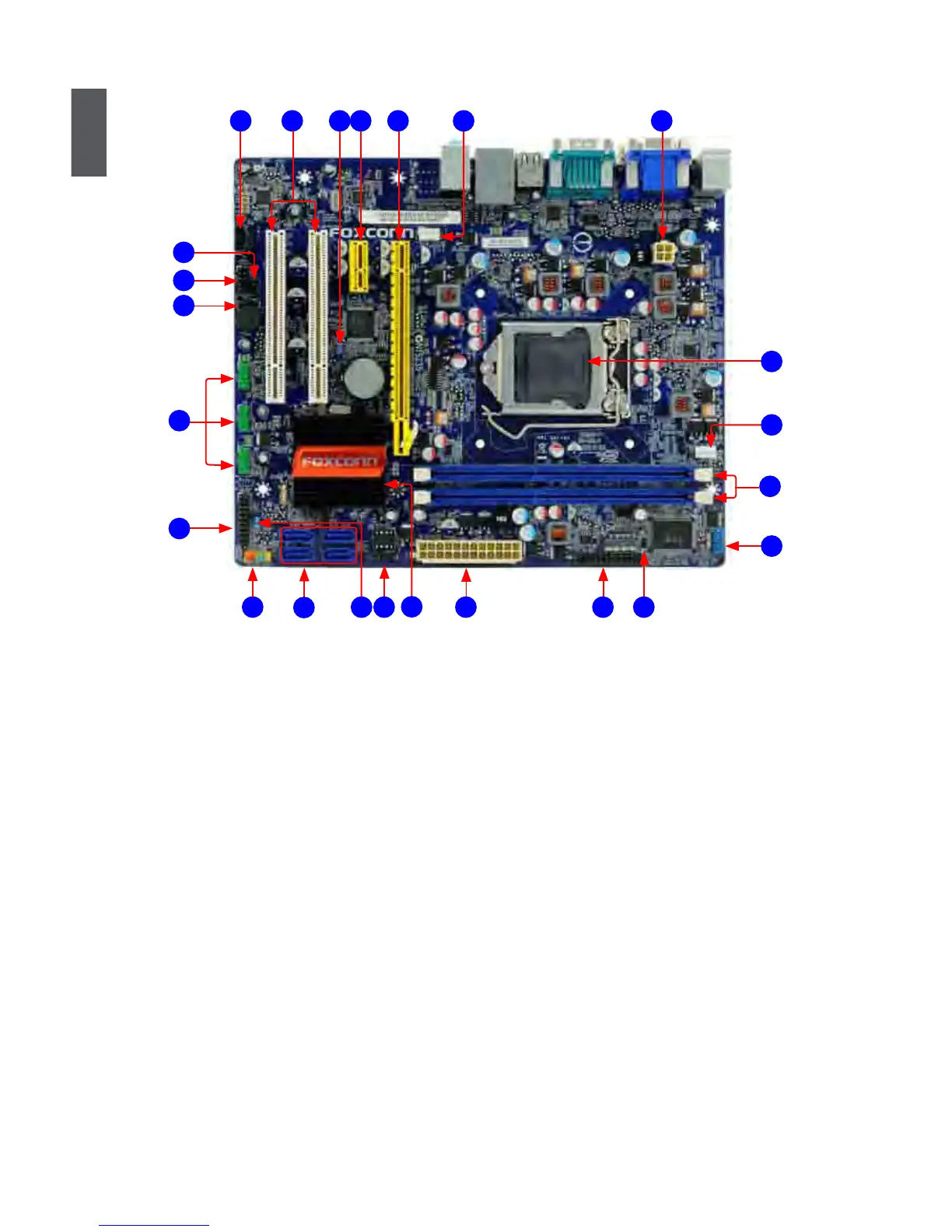

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1.4-pinATX12VPowerConnector
2.SYS_FAN1Header
3. PCI Express x16 Slot
4. PCI Express x1 Slot
5.Clear CMOS Jumper
6. PCI Slots
7. CD_IN Connector
8. SPDIF_OUT Connector
9. Front Audio Connector
10.SpeakerConnector
11. Front USB Connectors
12.TPMConnector
13. Front Panel Connectors
14. SATA Connector
15.PCH_ME_ENABLEJumper
16. IrDA Connector
17. Chipset: Intel
®
H61
18.24-pinATXPowerConnector
19. LPT Connector
20.INTRConnector
21.COM2Connector
22.DDR3DIMMSlots
23.CPU_FANHeader
24.LGA1155CPUSocket
1
8
2
18
37 6 5
9
11
12
14
19
21
23
24
13
15
22
4
17
10
2016

Foxconn H61MX Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
PCI Express x16	1
SATA Ports	4 x SATA 3Gb/s
Audio	Realtek ALC662
LAN	Realtek RTL8111E
Expansion Slots	1 x PCI Express x1, 1 x PCI
Video Outputs	VGA, DVI
