Foxconn H61MX Series User Manual

4
51
FOX Intelligent Stepping (F.I.S., Optional)
Select FOX Intelligent Stepping will allow your system to automatically adjust your
CPU clock rate based on different system loadings. For example, if you select Power
Gaming, CPU clock will be driven to run at its maximum speed. While in Energy
Saving, CPU will lower down its speed to a minimum. The four benchmarks - Power
Gaming,DataMining,OfceandEnergySaving,thereferencesoftheirsystem
loadingwerecalculatedanddenedintheFISCalibrationoptionofConguration
menu. Select Auto, CPU will automatically adjust its clock according to current system
loading.

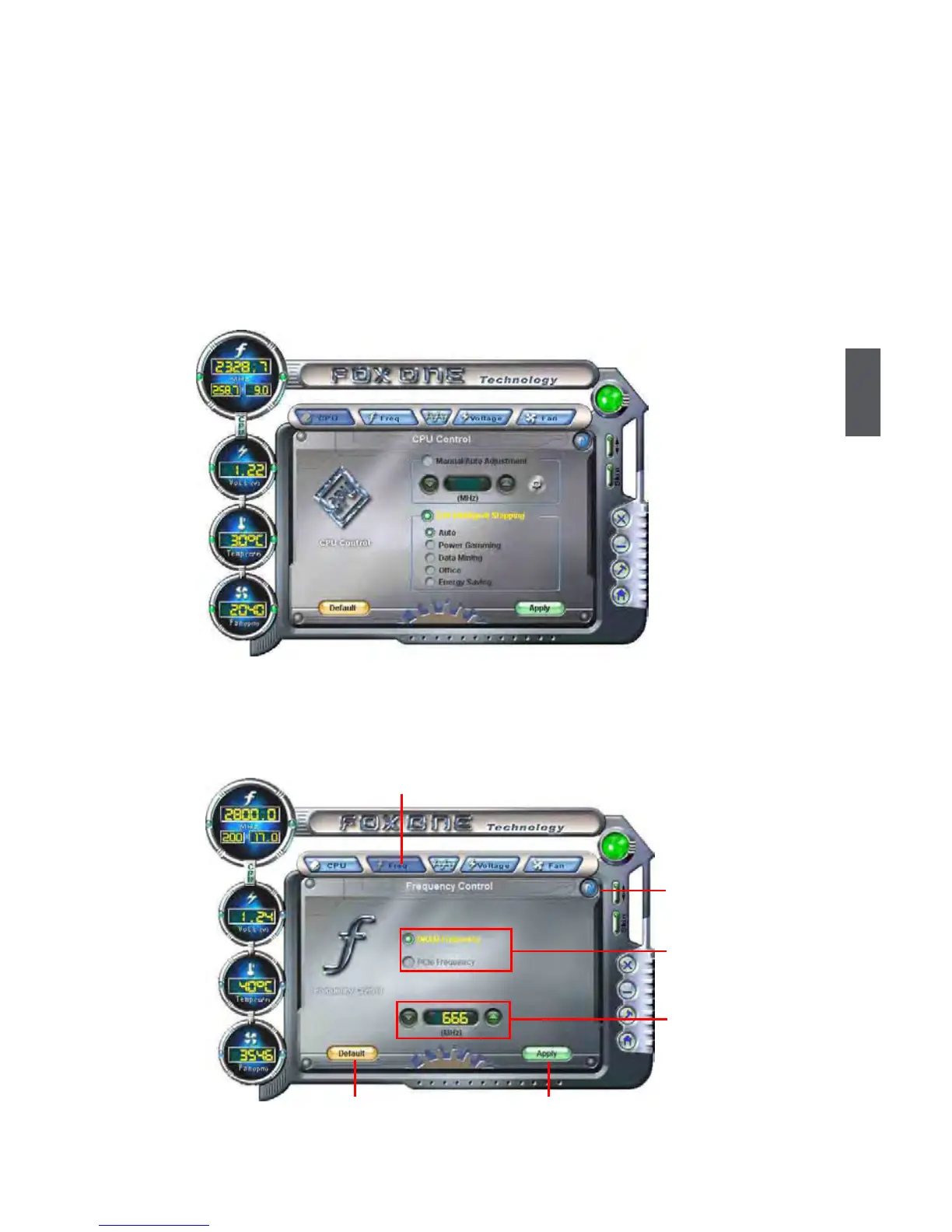

3. Frequency Page - Frequency Control
This page lets you set memory and PCI Express frequencies by manual.
Go to Freq. page
Close this page
Reset the changes
Apply the changes
Select the option
you want to set
Adjust by manual

Foxconn H61MX Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
PCI Express x16	1
SATA Ports	4 x SATA 3Gb/s
Audio	Realtek ALC662
LAN	Realtek RTL8111E
Expansion Slots	1 x PCI Express x1, 1 x PCI
Video Outputs	VGA, DVI
