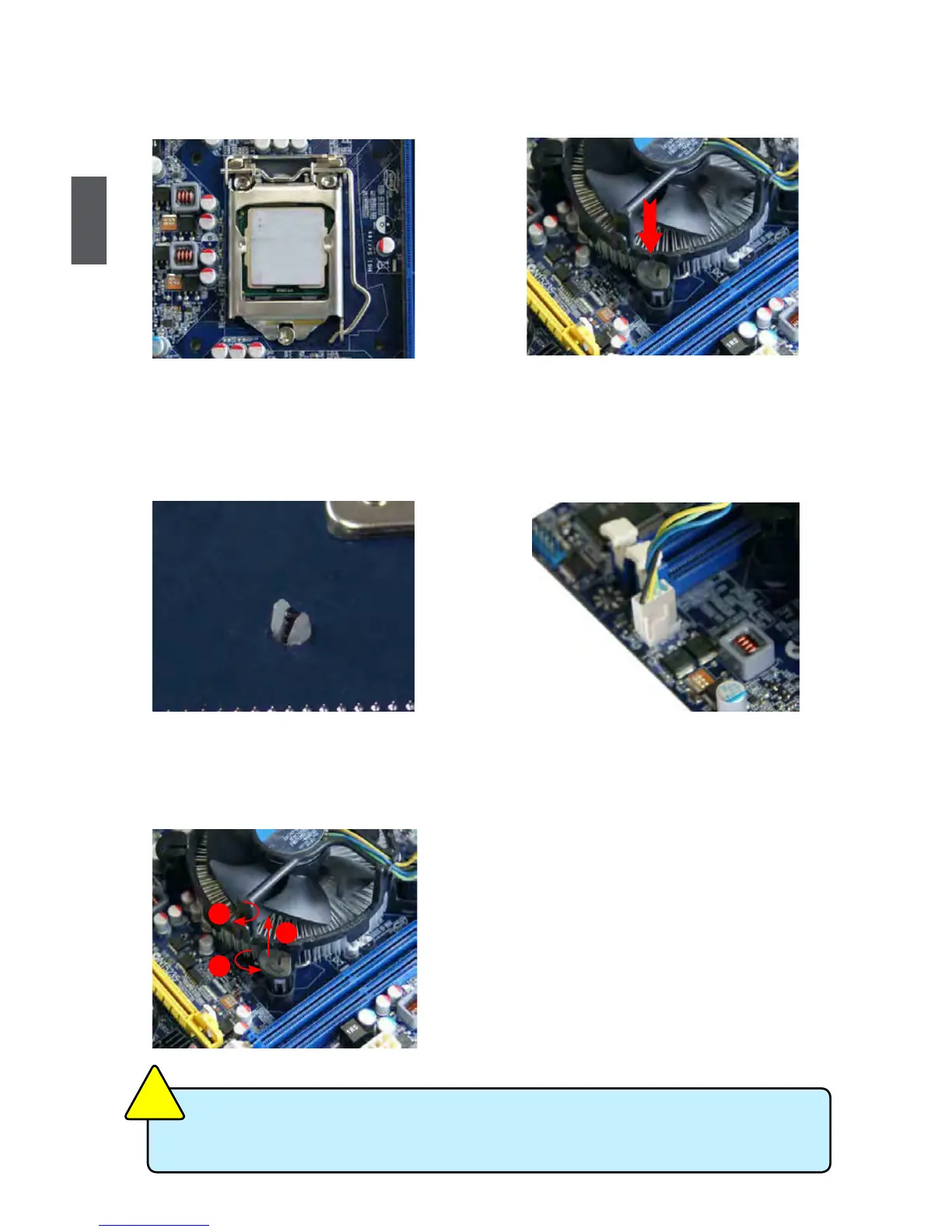

Install the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard.
1. Apply and spread an even ther-
mal grease on the surface of CPU.
2.PlacethefourboltsoftheCPU
cooler to the holes of the mother-
board, push them straight down from
the top, and the bolts will be fas-
tened on the motherboard. That's it.
3. Check the solder side of the
motherboard, the push pin should
bexedasdepictedinthepicture.
3
2
1
4. Attach the 4-wire CPU cooler con-
nector to the CPU FAN header on
the motherboard .
Release bolts of CPU cooler from
motherboard :
1.Turning the push pin (bolt) along
with the direction of arrow (coun-
terclockwise).
2.Pullthepushpinstraightup.
3. Turning push pin clockwise to its
default position.
Use extreme care when removing the CPU cooler because the thermal grease may
adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.
CAUTION
!
