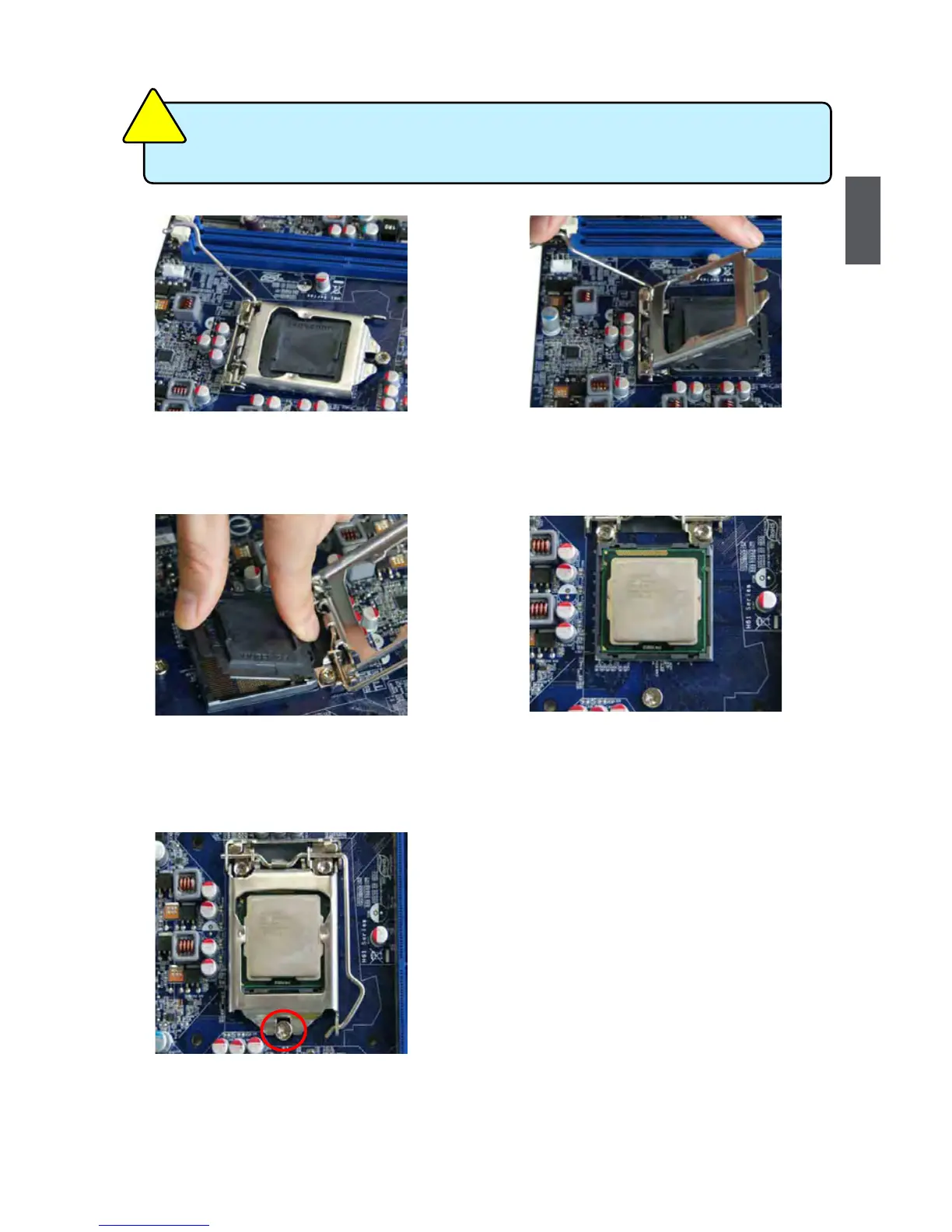

Follow the steps to install the CPU onto the CPU socket :
2.LiftthemetalcoverontheCPU
socket.
3. Remove protective socket cover.
5.WhenCPUisproperlyseated,re-
place the metal cover and push the
CPU socket lever back to its locked
position.
4. Check pin one marking (triangle)
with the pin one corner of the CPU
socket, align the CPU notches with
the socket alignment keys and gently
put the CPU onto the socket.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
CAUTION
!
1. Release the CPU socket lever.

Foxconn H61MX Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
PCI Express x16	1
SATA Ports	4 x SATA 3Gb/s
Audio	Realtek ALC662
LAN	Realtek RTL8111E
Expansion Slots	1 x PCI Express x1, 1 x PCI
Video Outputs	VGA, DVI
