Foxconn H61MX Series User Manual

2
15

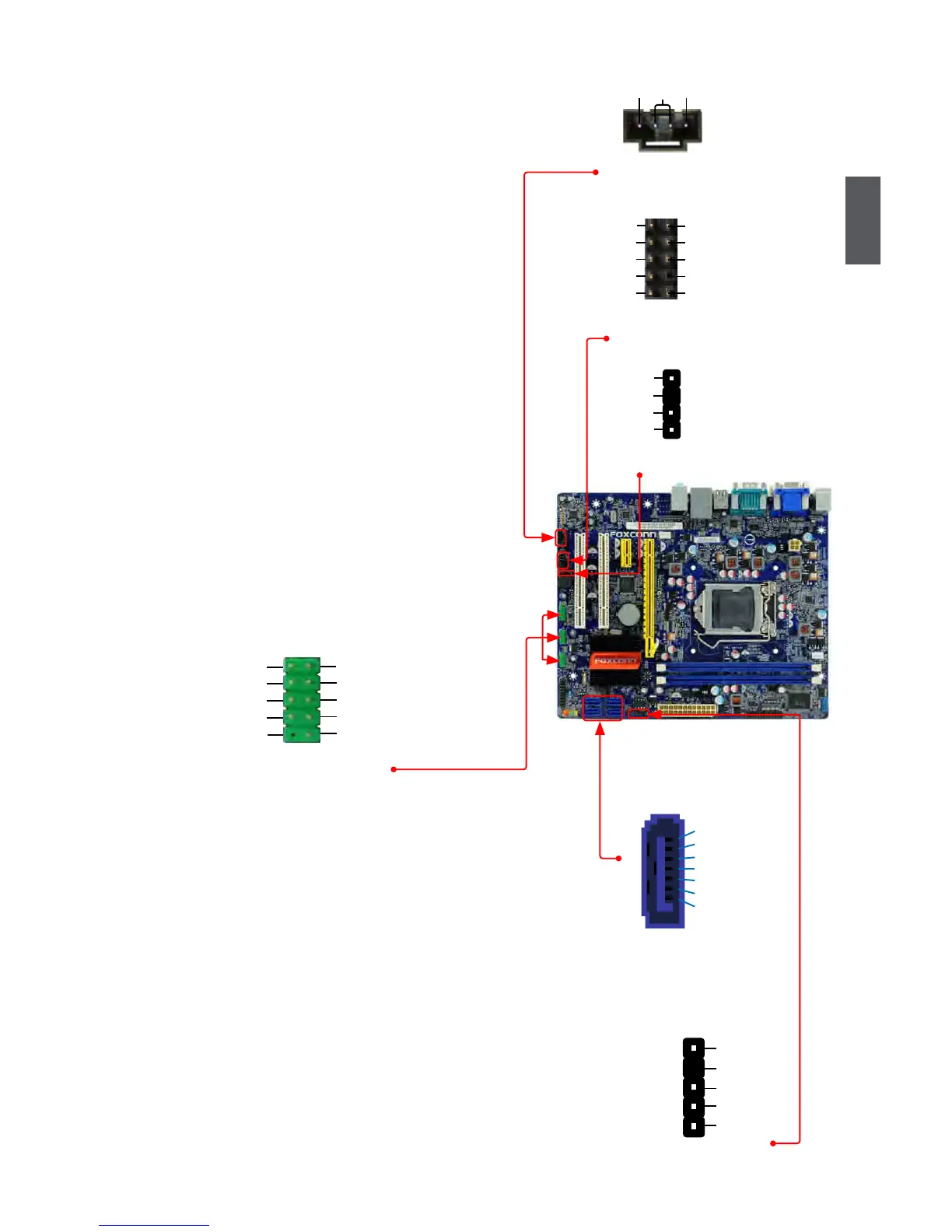

Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/
DVD audio cable.
Audio Connector : F_AUDIO
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
Speaker Connector : SPEAKER
The speaker connector is used to connect speaker
of the chassis.
USB Connectors : F_USB1/2/3
In addition to the USB ports on the rear panel, this
productalsoprovides10-pinUSBheadersonits
motherboard. By connecting through USB cables
with them, user can quickly expand another USB
ports on the front panel.
Serial ATA Connectors : SATA_1/2/3/4
The Serial ATA connector is used to connect with
SATA Hard Disk or CD devices which support this
feature.SerialATAIIinterfaceallowsupto300MB/s
data transfer rate.
IrDA Connector : IR
This connector supports infrared wireless transmitting
and receiving device.
A_MIC2_L
A_MIC2_R
A_LINE2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
A_LINE2_R
GND
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1
2
10
9
F_USB1/2/3
CD_IN
CD_L GND CD_R
1
NC
PWR
EMPTY
SPEAKER
SPKJ
1
2
3
4
1
2
3
4
5
+5V
EMPTY
IRRX
GND
IRTX
IR
SATA_1/2/3/4
GND
TX+
TX-
GND
RX-
RX+
GND
1

Foxconn H61MX Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
PCI Express x16	1
SATA Ports	4 x SATA 3Gb/s
Audio	Realtek ALC662
LAN	Realtek RTL8111E
Expansion Slots	1 x PCI Express x1, 1 x PCI
Video Outputs	VGA, DVI
