Step 6: Switches and Optional Parts

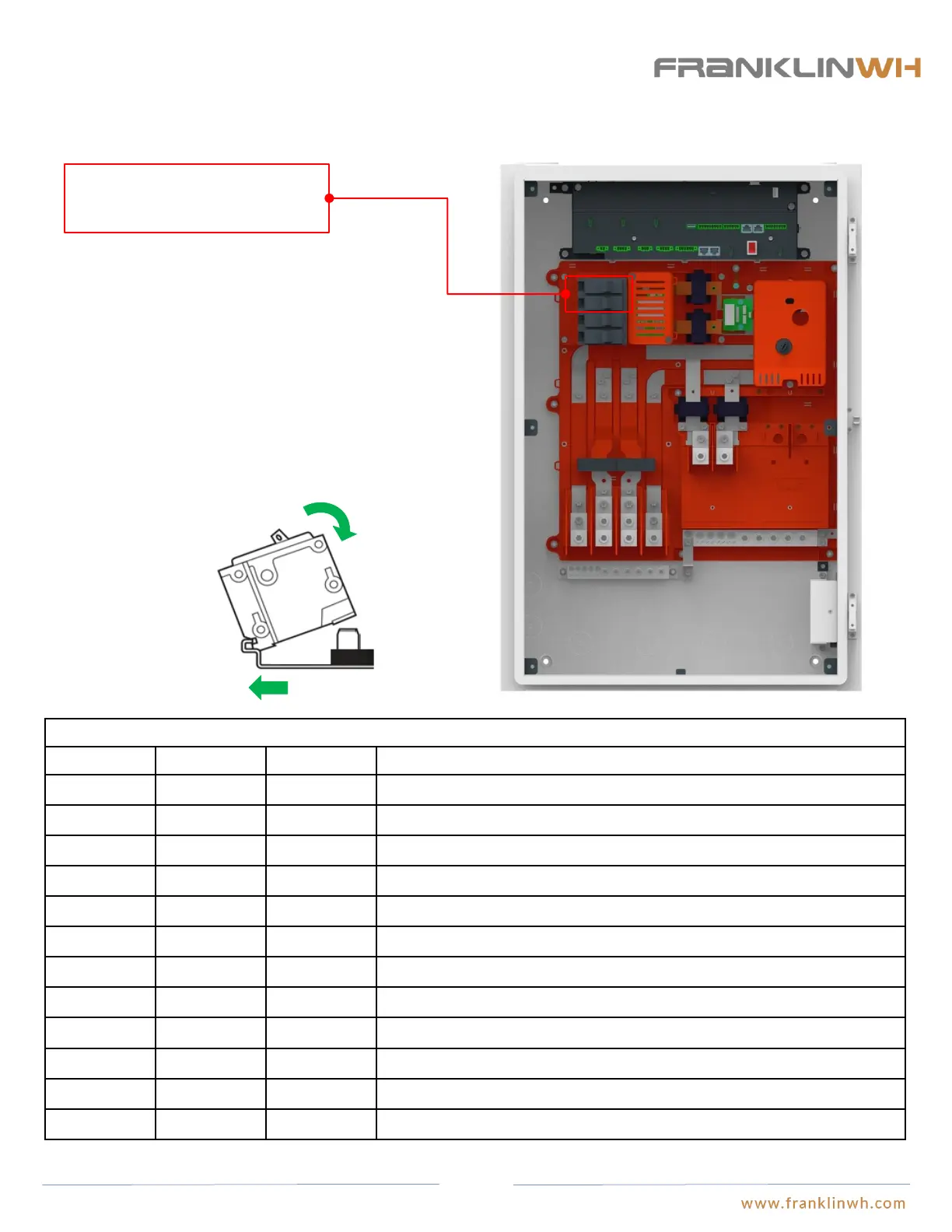

Install solar switch in aGate
Solar breaker location, solar
generation system available at the
residence.
Installation process of BR series switches:
Table Optional circuit breakers for PV
S/N Model Current Description
1 BR230 30A
Eaton#Circuit Breaker;2-Pole,10kAIC,30A/240V
2 BR240 40A
Eaton#Circuit Breaker;2-Pole,10kAIC,40A/240V
3 BR250 50A
Eaton#Circuit Breaker;2-Pole,10kAIC,50A/240V
4 BR260 60A
Eaton#Circuit Breaker;2-Pole,10kAIC,60A/240V
5 BR270 70A
Eaton#Circuit Breaker;2-Pole,10kAIC,70A/240V
6 BR280 80A
Eaton#Circuit Breaker;2-Pole,10kAIC,80A/240V
7 BRH230 30A
Eaton#Circuit Breaker;2-Pole,22kAIC,30A/240V
8 BRH240 40A
Eaton#Circuit Breaker;2-Pole,22kAIC,40A/240V
9 BRH250 50A
Eaton#Circuit Breaker;2-Pole,22kAIC,50A/240V
10 BRH260 60A
Eaton#Circuit Breaker;2-Pole,22kAIC,60A/240V
11 BRH270 70A
Eaton#Circuit Breaker;2-Pole,22kAIC,70A/240V
12 BRH280 80A
Eaton#Circuit Breaker;2-Pole,22kAIC,80A/240V
