Smart Circuit 3 (2 Pole)
Step 6: Switches and Optional Parts

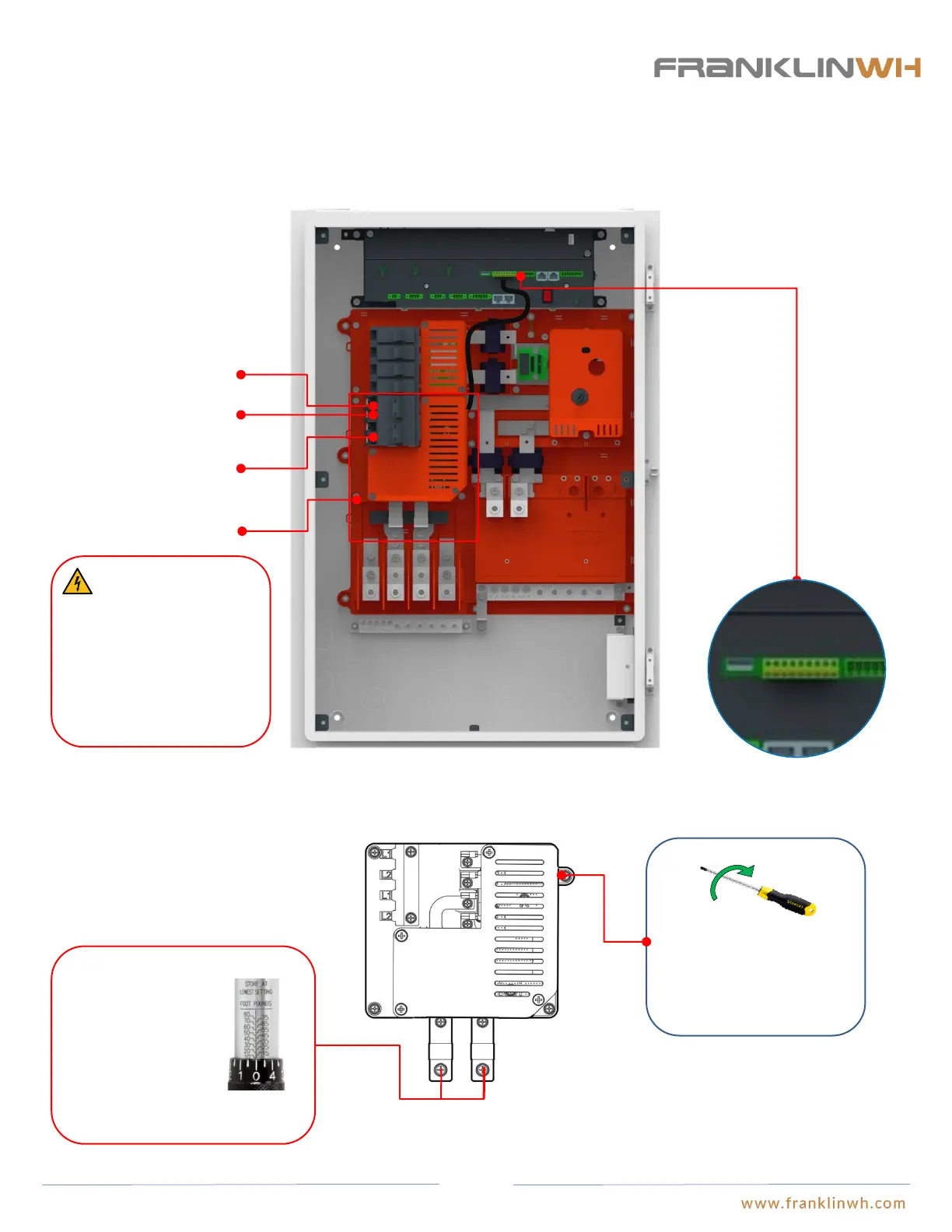

Install optional smart load module in aGate
Step 1: Install the smart load
module.
Torque batch
4.63 lbf.ft or 56 in.-lbs.
Step 2: Insert the module terminals
and mount the wires.
SMART RELAY
The smart load modules and switches are optional parts. If the user did not purchase them, please skip this step. The smart load
module enable remote control of the on/off status for three branch circuits. Both branch circuit 1 and circuit 2 are 1-pole circuits,
while circuit 3 is a 2-pole circuit. However, circuit 1 and circuit 2 may be bonded to form a 2-pole circuit.
Smart Circuit 1 (1 Pole)
Smart Circuit 2 (1 Pole)
Tighten the (4) M5x12
combination bolts by turning
clockwise using a #3X4”
Phillips head cross screwdriver.
Tighten the 2 M6x16
combination bolts by
turning clockwise
using a torque batch.
Smart load module
DANGER: For safety of
branch circuits of the
smart load, please strictly
follow the Local
Electrical code’s rules.
The safety tests during
installation must also be
based on the local codes.
42
