FRANKLINWH APower - Power Connections to aGate

Step 8: Electrical Wiring

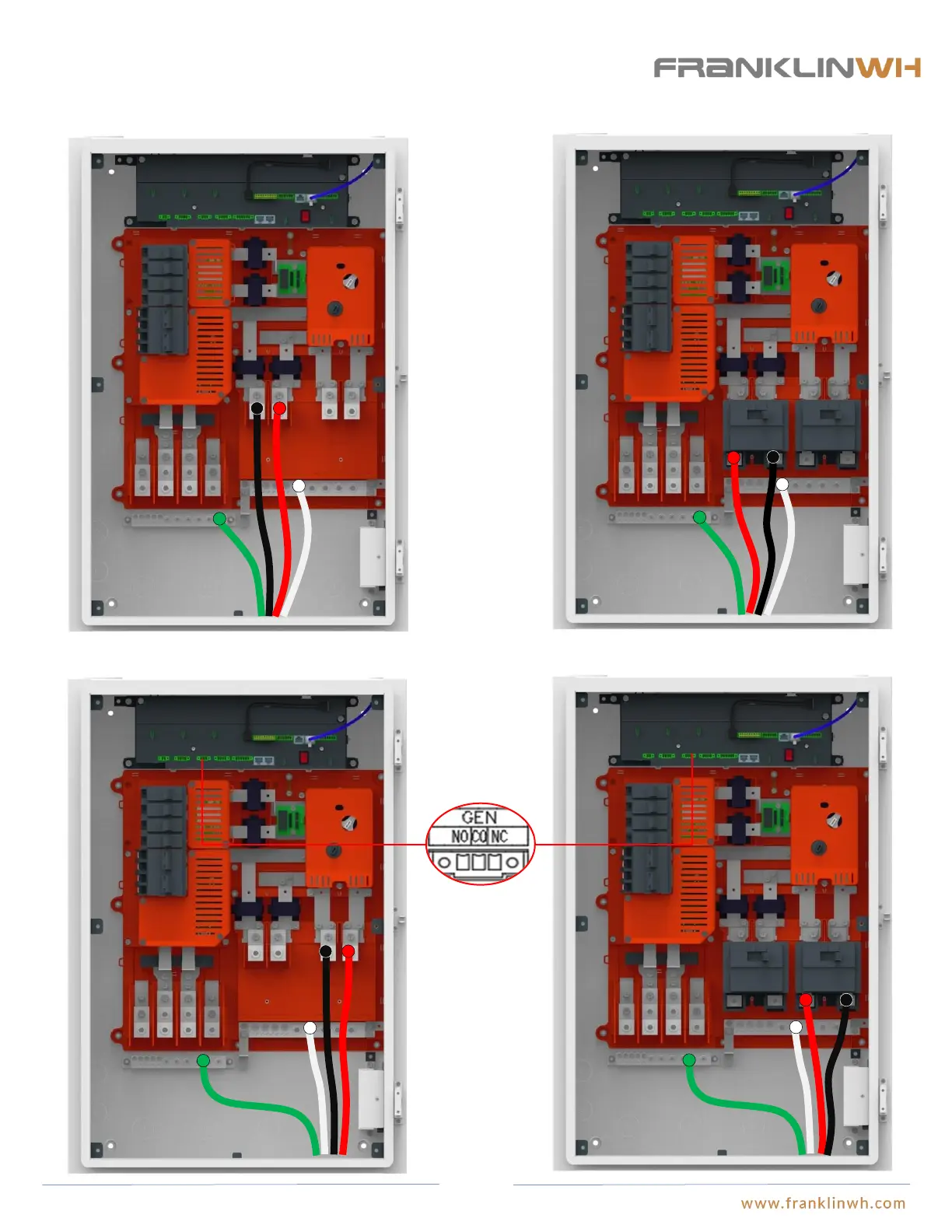

Make AC Power Connections to aGate
L1 L2
L2 L1
Optional Generator Power Connections to aGate (Parts for fuel generator are configured in Step 8)
L1 L2
L1
L2
CAUTION: The fuel
generator requires a
signal interchange
connection with aGate.
Please connect it to the
terminals as shown in
the figure, where NO
indicates Normally ON,
CO indicates Common,
and NC indicates
Normally Closed.
Please refer to the
installation instructions
of the optional parts for
wiring details.
Neutral
Ground
Neutral
Ground
Neutral
Ground
Neutral
Ground
57
