Step 8: Electrical Wiring

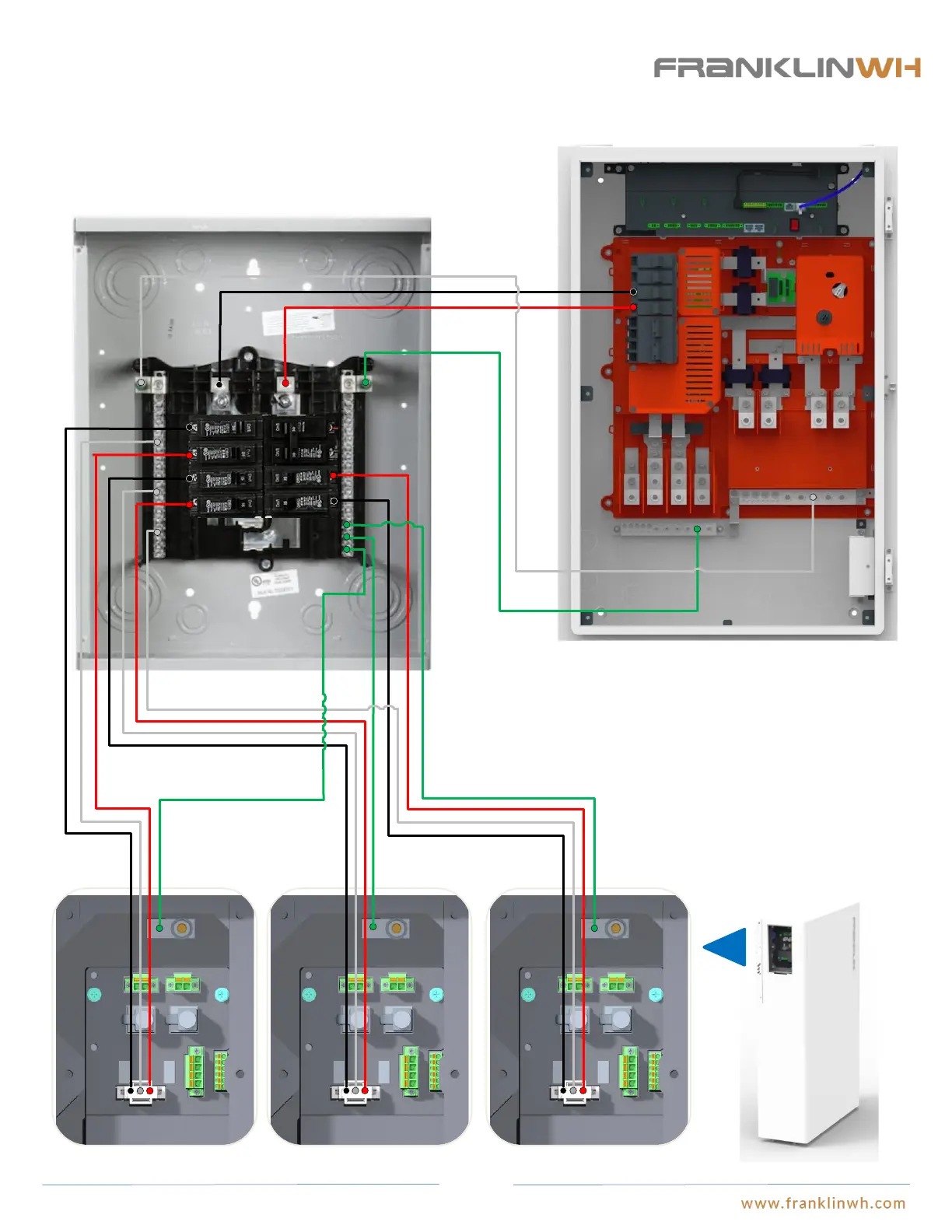

Make aPower Connections to aGate (In case of (2) to (3) aPowers)
L1 N L2
aPower 1 wiring compartment
Ground
L1 N L2
aPower 2 wiring compartment
Ground
L1 N L2
aPower 3 wiring compartment
Ground
L1
L2
Ground
Neutral
