Install Pressure Transducer
The discharge pressure transducer is mounted on the discharge manifold of the
pump. A T-fitting can be used to share the master pressure gauge outlet on the discharge
manifold. If there is a check valve in the discharge side of the pump, mount the transducer
before the check valve.
Note: Install the pressure transducer upright so water in the end of the
pressure transducer is able to drain back into the pipe.
1. Screw the transducer into a 1/4-18 NPT hole.
Caution: Do not use the main body that houses the electronics to tighten the
pressure transducer. Damage to the transducer may occur.
2. Tighten the transducer with a 9/16-inch wrench on the lower hex fitting.
3. Connect the pressure transducer cable from the control module to the pressure
transducer. (Refer to Wiring section.)

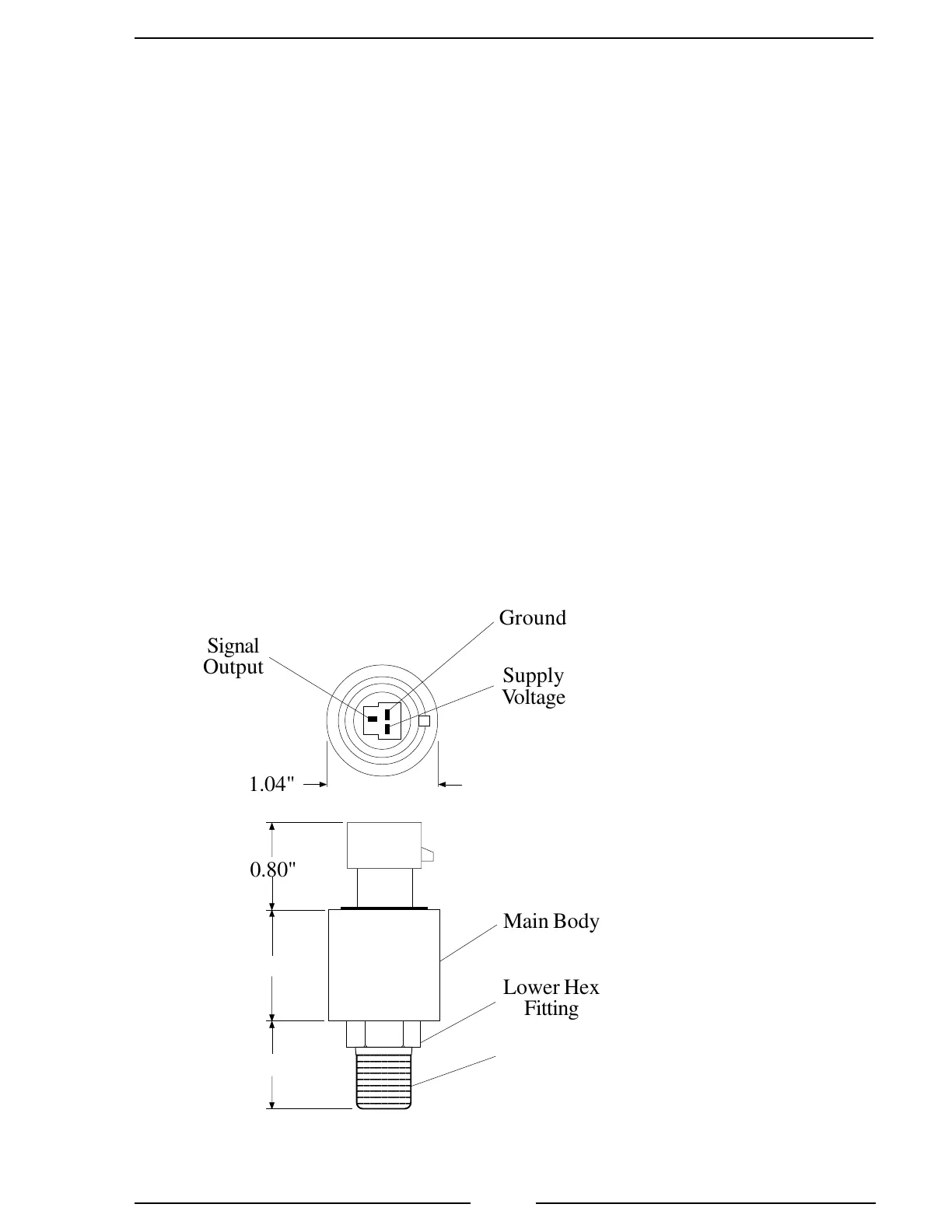

Figure 3. Pressure Transducer
Caution: Do not use the main body
that houses the electronics to tighten
the transducer. Damage to the
transducer may occur.
1/4-18 NPT
1.02"
0.86"
1234567890
1234567890
1234567890
1234567890
1234567890
1234567890
1234567890
1234567890
1234567890
1234567890
1234567890
0.80"
Lower Hex
Fitting
Supply
Voltage
Signal
Output
Ground
1.04"
Main Body
