FRC PRO-S 1 - Non-Electronic Engine PRO-S 3 Cables; Figure 12. Non-Electronic PRO-S 3 Wiring

PRO-S Rev1104
32
Non-Electronic Engine PRO-S 3 Cables

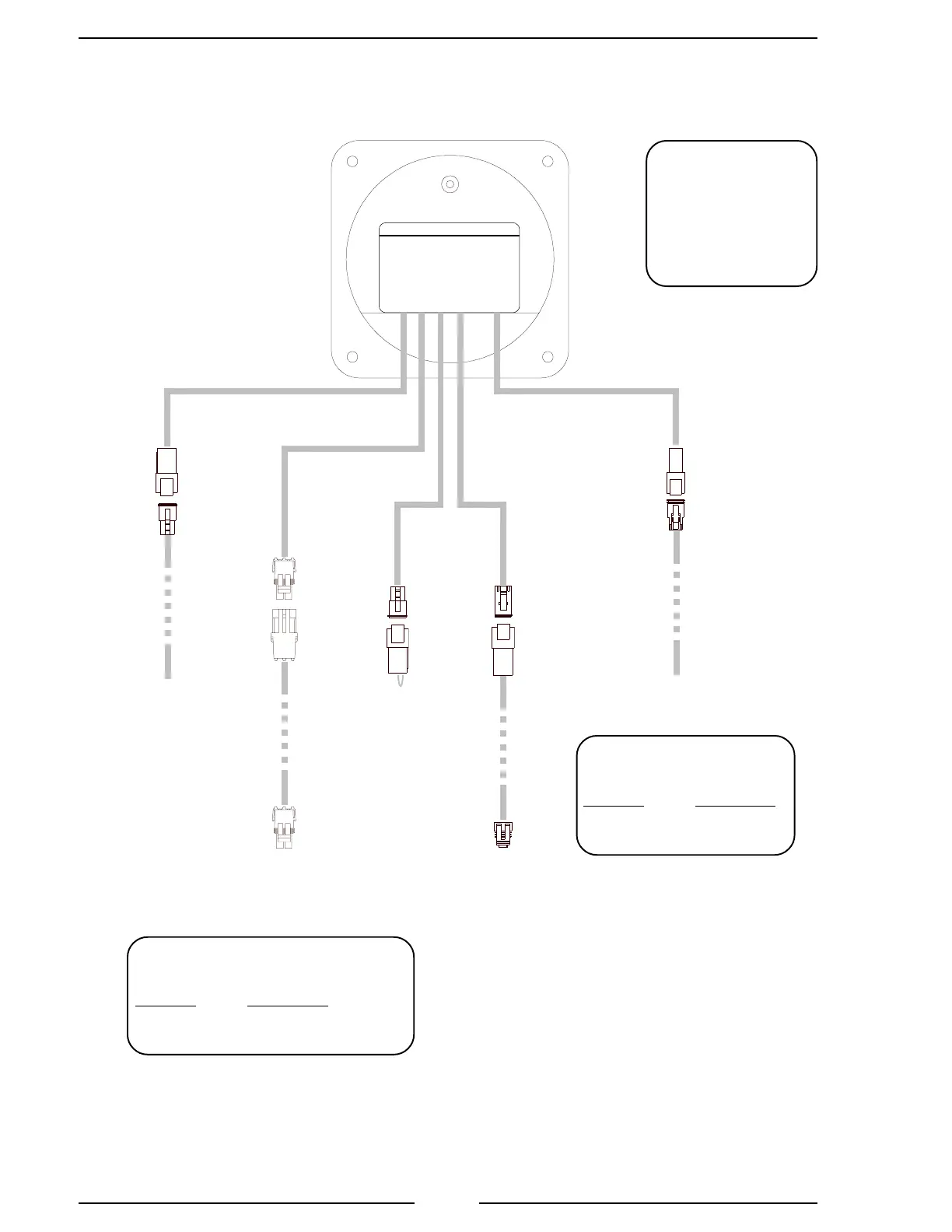

Figure 12. Non-Electronic PRO-S 3 Wiring
(Sheet 1 of 2)
Power
Supply
Engine
Control
-Power Supply -Engine Control -High Idle -Pressure Sensor -Throttle -RPM Sig./ J1587
GOVERNOR
High
Idle
Pressure
Sensor
RPM Sig.
/ J1587
A
B
B
Power Supply
(Refer to Figure 6)
E
C
D
Throttle Servo
Motor
(Refer to Figure 5)
Alternator
(See Sheet 2)
Connector Key
A 4-Pin Deutsch
B 3-Pin Deutsch
C 2-Pin Deutsch
D 2-Pin Packard
E 3-Pin Sensor
Alternator Cable
Connector
Pin/Wire Description
1/Red + Terminal
2/Black Ground
High Idle Cap
(Refer to Figure 7)
Pressure
Transducer
(Refer to Figure 8)
Note: Extend refers to the
INCREASE direction as shown
on the servo motor.
Throttle Servo Motor Cable
Connectors
Pin/Wire Description
A/Red +12 VDC to Extend
B/Black +12 VDC to Retract
