Caterpillar Harness Connections
Interface Information
The ECM Remote Throttle Option has to be enabled. Refer to an authorized
dealer to program this option.
3116B, 3126B, 3176B, 3406E, C7, C10, C12 Engine Interface
Engines with 70-pin OEM connector.

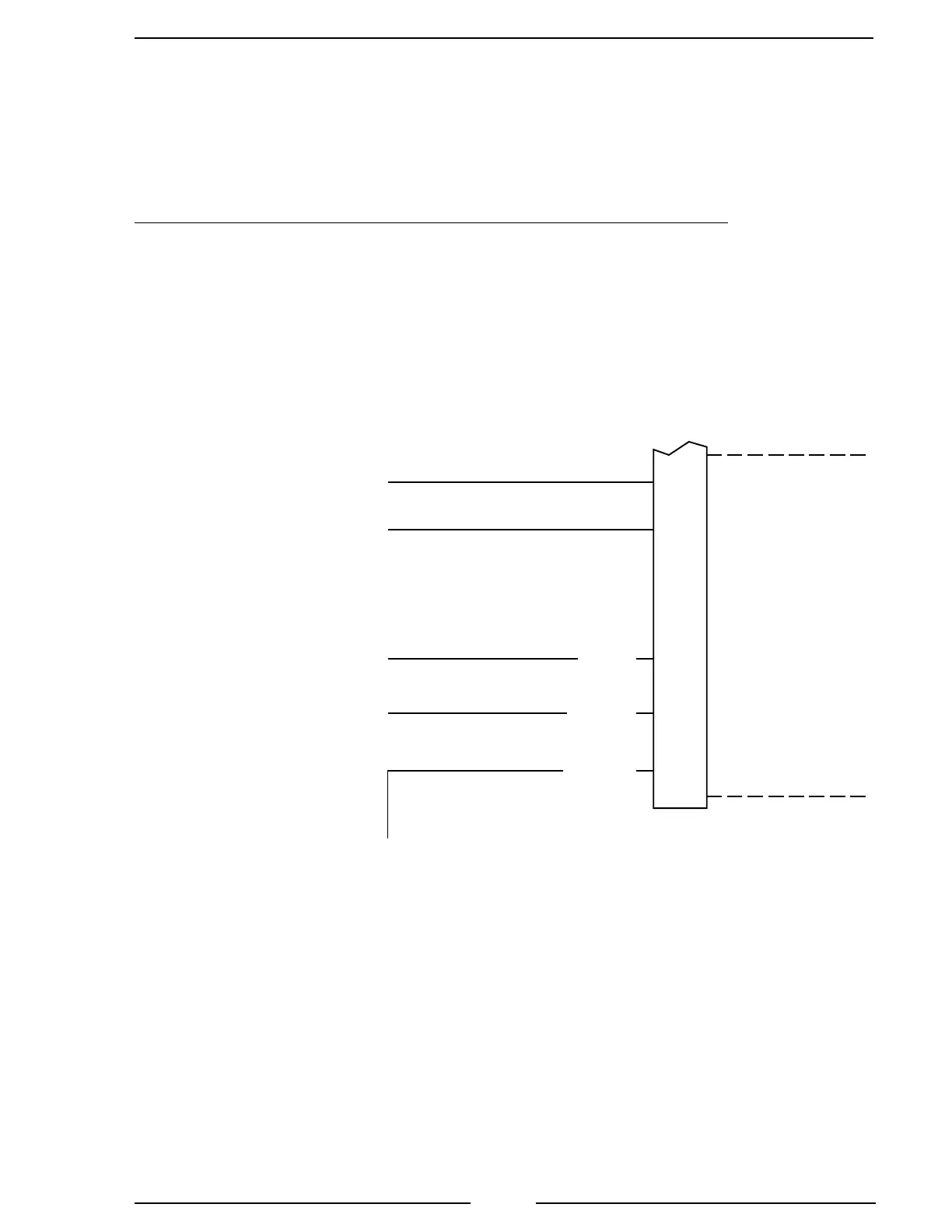

Figure 14. Caterpillar PRO-S 5 Wiring
(Sheet 2 of 4)
J1587
Datalink (See
Sheet 1)
Engine
Control
(See Sheet 1)
J1587 Datalink
Negative (–)
J1587 Datalink
Positive (+)
Black Wire
White Wire
K999-GN
993-BR
G845-PU
Input Sensor
Common #2
Input #1 PTO ON/OFF
Switch
Input #8 (Remote
Throttle PWM)
ECM
Black Wire
Red Wire
70-Pin
Vehicle
Harness
Connector
Note: Supply a
ground when the
pump interlock
circuit is engaged.
3
68
56
9
8
