FRC PRO-S 1 - Ford PRO-S 6 Cables; Figure 15. Ford PRO-S 6 Wiring

PRO-S Rev1104
40

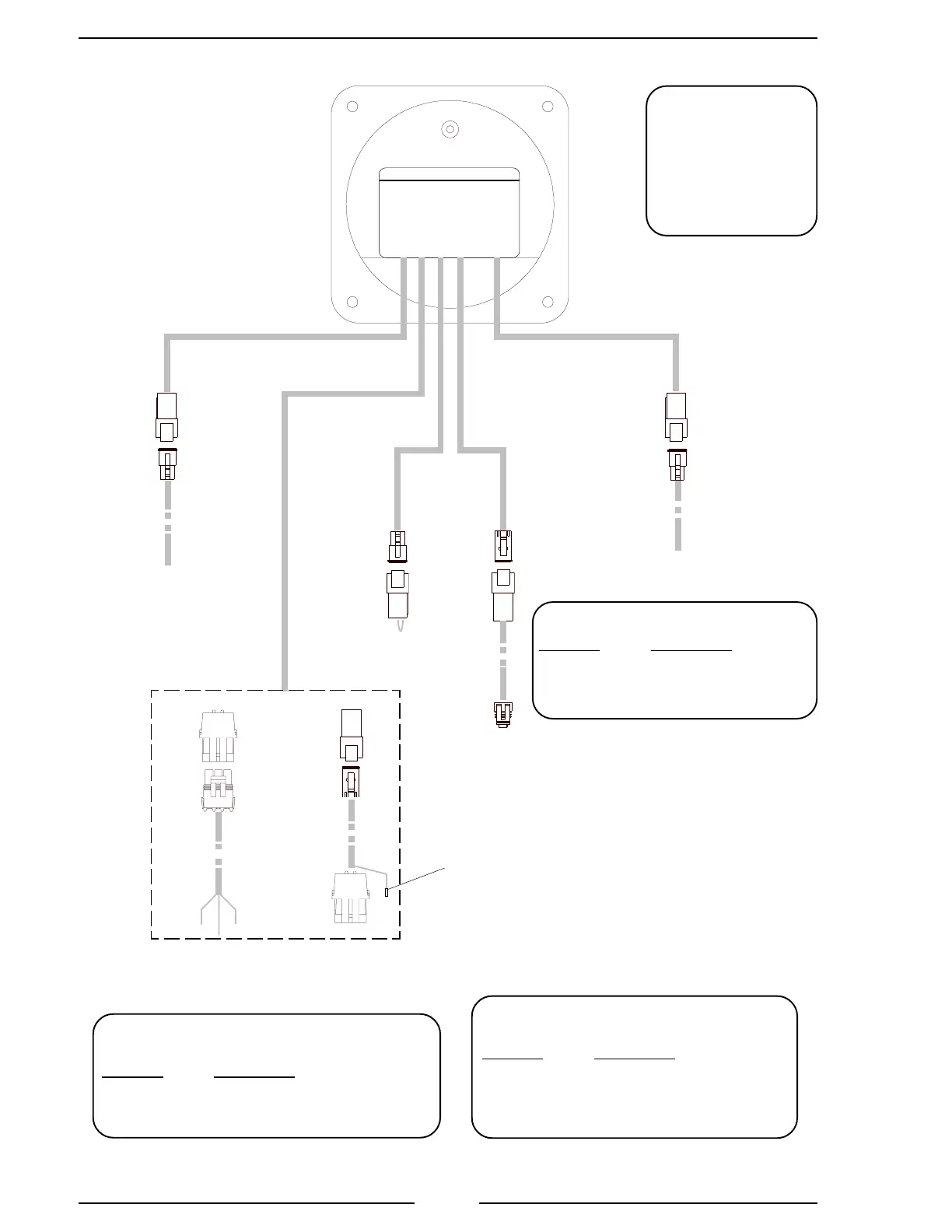

Figure 15. Ford PRO-S 6 Wiring
(Sheet 1 of 5)
Ford PRO-S 6 Cables
7.3L Engine
Control
(See Sheet 2)
6.0L Engine
Control
(See Sheet 3)
6.0L Engine Control Cable
Connector
Pin/Wire Description
1/Red Signal To Engine ECM
2/Black Ground
3/White +12 V Interlock
4/Green High RPM Lock-up Signal
7.3L Engine Control Cable
Connector
Pin/Wire Description
A/White Idle Validation Switch
B/Black Signal From Cab Foot Throttle
C/Red Signal To Engine ECM
Power
Supply
Engine
Control
High Idle Cap
(Refer to Figure 7)
-Power Supply -Engine Control -High Idle -Pressure Sensor -Throttle -RPM Sig./ J1587
GOVERNOR
High
Idle
Pressure
Sensor
RPM Sig.
/ J1587
C
B
B
Power Supply
(Refer to Figure 6)
Powertrain Control
(See Sheet 2 or 3)
Connector Key
A 4-Pin Deutsch
B 3-Pin Deutsch
C 2-Pin Deutsch
D 3-Pin Packard
E 3-Pin Sensor
RPM Signal Connector
Pin/Wire Description
1/Red Auxilary Tachometer
Feed
2/Black Ground
Pressure
Transducer
(Refer to Figure 8)
E
A
D
D
A
Green wire is for automatic
transmissions with optional
Third Gear Lock-up installed.
