FRC PRO-S 1 - Pressure Transducer; Figure 8. Pressure Transducer Wiring

To Next Page

To Previous Page

PRO-S Rev1104

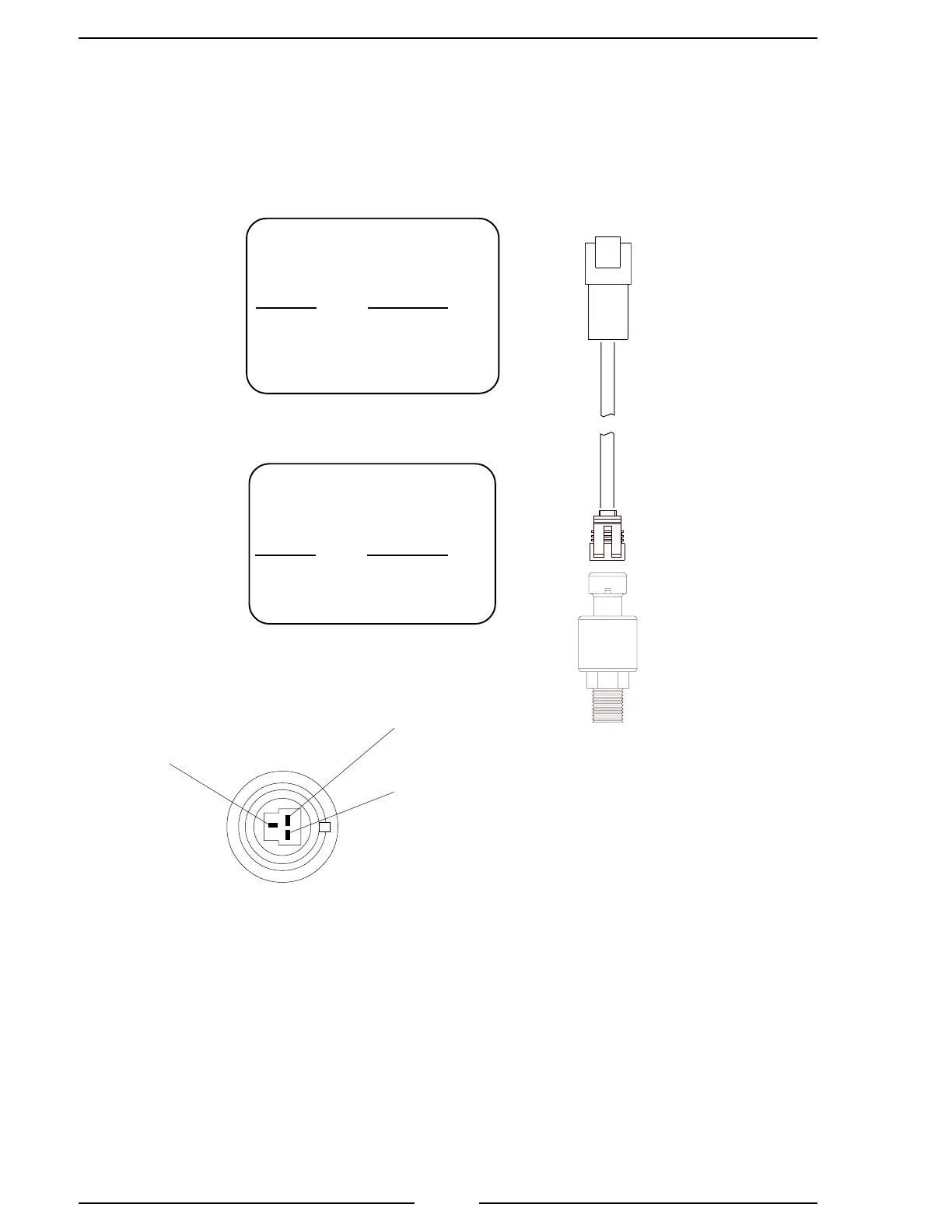

Figure 8. Pressure Transducer Wiring

Pressure Transducer

(Top View)

Supply

Voltage

Signal

Output

Ground

From Control Module

Pressure Sensor 4-Pin

Deutsch Connector

Pressure

Transducer

Cable

Pressure

Transducer

Pressure Transducer

Cable 3-Pin Sensor

Connector

Pin/Wire Description

A/Black Ground

B/Red Supply Voltage

C/White Signal Output

Pressure Transducer

Cable 4-Pin Deutsch

Connector

Pin/Wire Description

1/Red Supply Voltage

2/Black Ground

3/White Signal Output

4/Yellow Cable Shield

Pressure Transducer
