PRO-S Rev1104
26
Cummins PRO-S 1 Cables

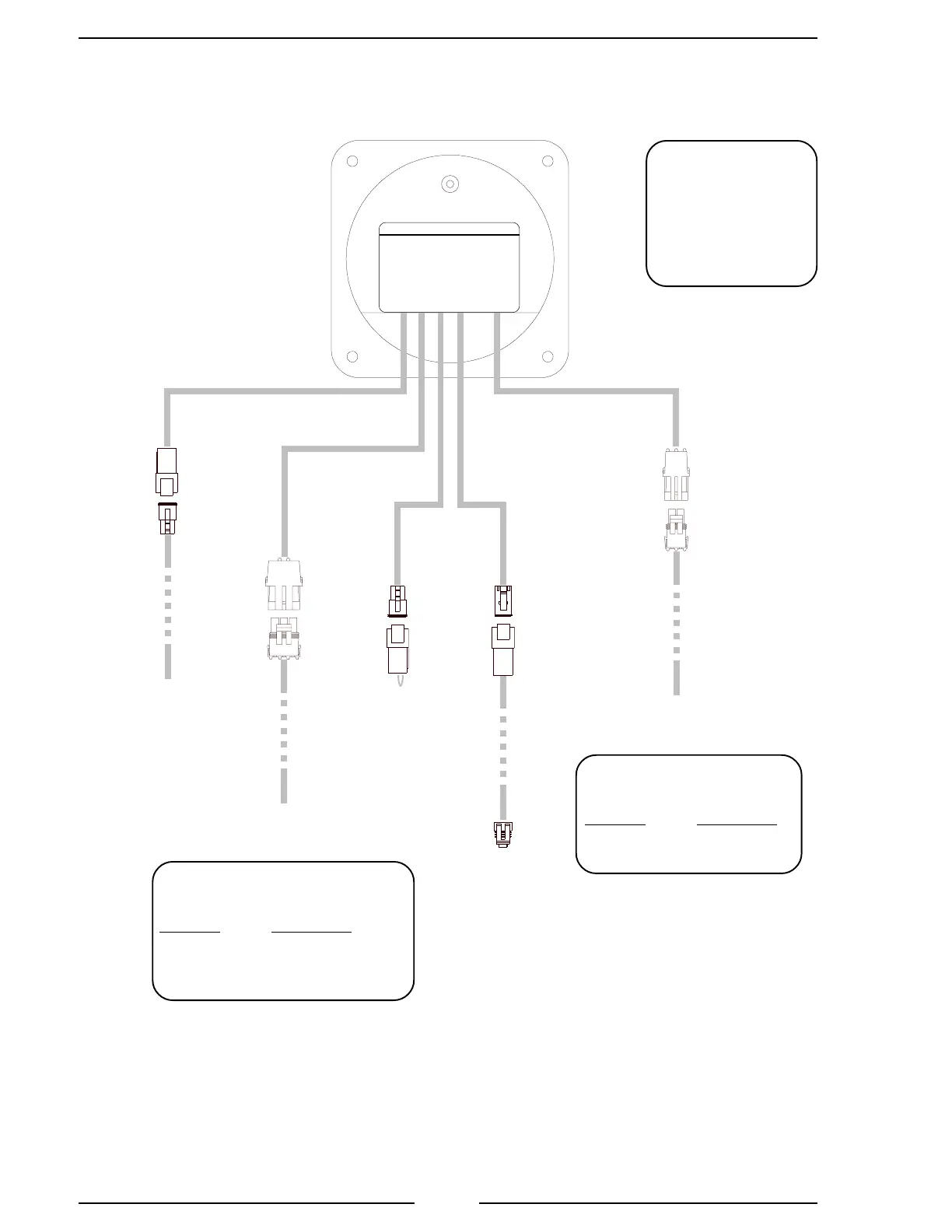

Figure 10. Cummins PRO-S 1 Wiring
(Sheet 1 of 3)
Power
Supply
Engine
Control
High Idle Cap
(Refer to Figure 7)
Pressure
Transducer
(Refer to Figure 8)
-Power Supply -Engine Control -High Idle -Pressure Sensor -Throttle -RPM Sig./ J1587
GOVERNOR
High
Idle
Pressure
Sensor
A
C
B
B
Power Supply
(Refer to Figure 6)
Engine Control
(See Sheet 2)
E
Connector Key
A 4-Pin Deutsch
B 3-Pin Deutsch
C 3-Pin Packard
D 2-Pin Packard
E 3-Pin Sensor
Engine Control Cable
Connector
Pin/Wire Description
A/Black Signal Return
B/White Signal to ECM
C/Red 5 VDC Reference
RPM Sig.
/ J1587
J1587 Datalink
(See Sheet 2)
D
J1587 Datalink
Cable Connector
Pin/Wire Description
A/Red Datalink +
B/Black Datalink –
