FRC PRO-S 1 - Caterpillar PRO-S 5 Cables; Figure 14. Caterpillar PRO-S 5 Wiring

PRO-S Rev1104
36

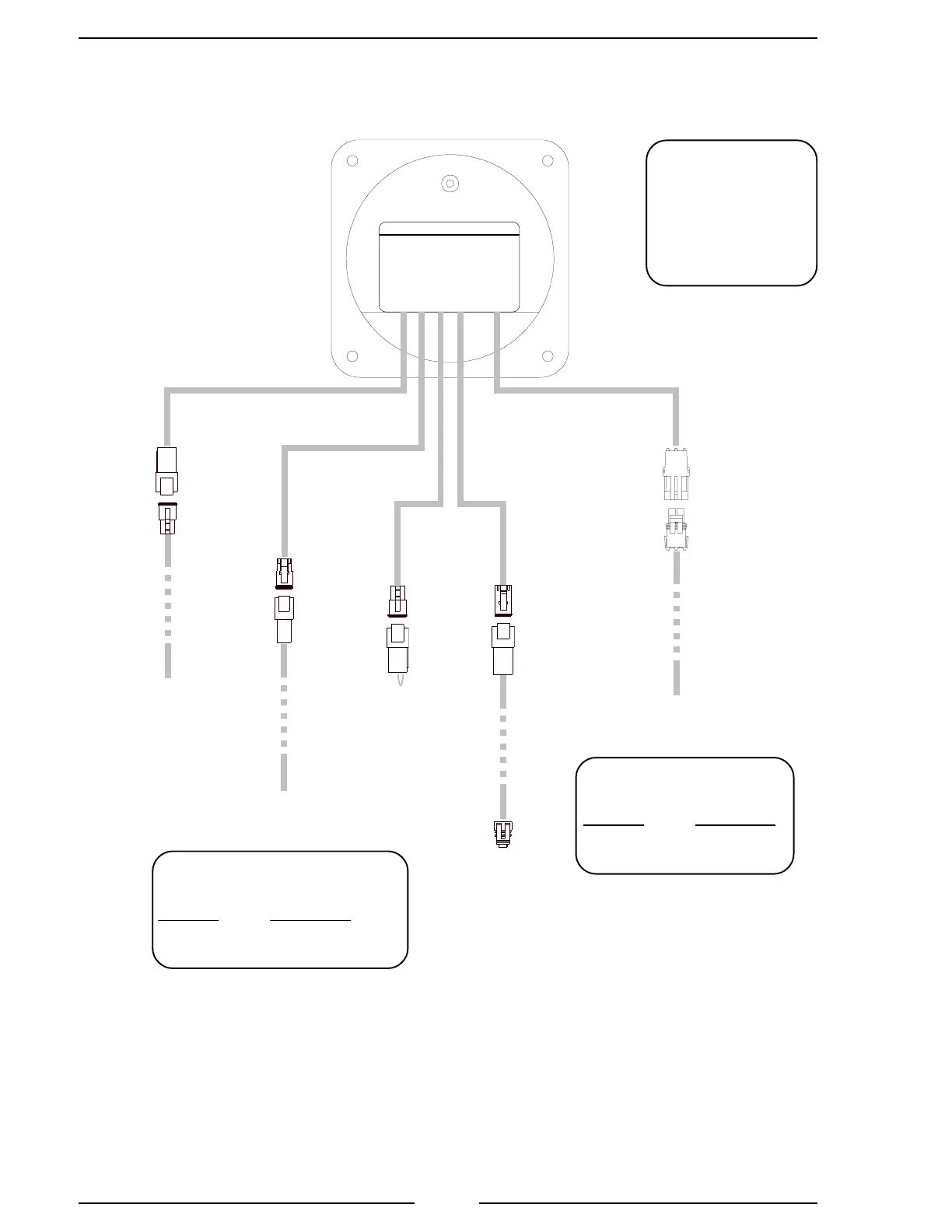

Figure 14. Caterpillar PRO-S 5 Wiring
(Sheet 1 of 4)
Caterpillar PRO-S 5 Cables
Power
Supply
Engine
Control
High Idle Cap
(Refer to Figure 7)
Pressure
Transducer
(Refer to Figure 8)
-Power Supply -Engine Control -High Idle -Pressure Sensor -Throttle -RPM Sig./ J1587
GOVERNOR
High
Idle
Pressure
Sensor
RPM Sig.
/ J1587
A
C
B
B
Power Supply
(Refer to Figure 6)
Engine Control
(See Sheets 2-4)
E
J1587 Datalink
(See Sheets 2-4)
D
Connector Key
A 4-Pin Deutsch
B 3-Pin Deutsch
C 2-Pin Deutsch
D 2-Pin Packard
E 3-Pin Sensor
Engine Control Cable
Connector
Pin/Wire Description
1/White Throttle PMW
2/BlackSensor Common
J1587 Datalink
Cable Connector
Pin/Wire Description
A/Red Datalink +
B/Black Datalink –
