FRC PRO-S 1 - Mack PRO-S 7 Cables; Figure 16. Mack PRO-S 7 Wiring

PRO-S Rev1104
46

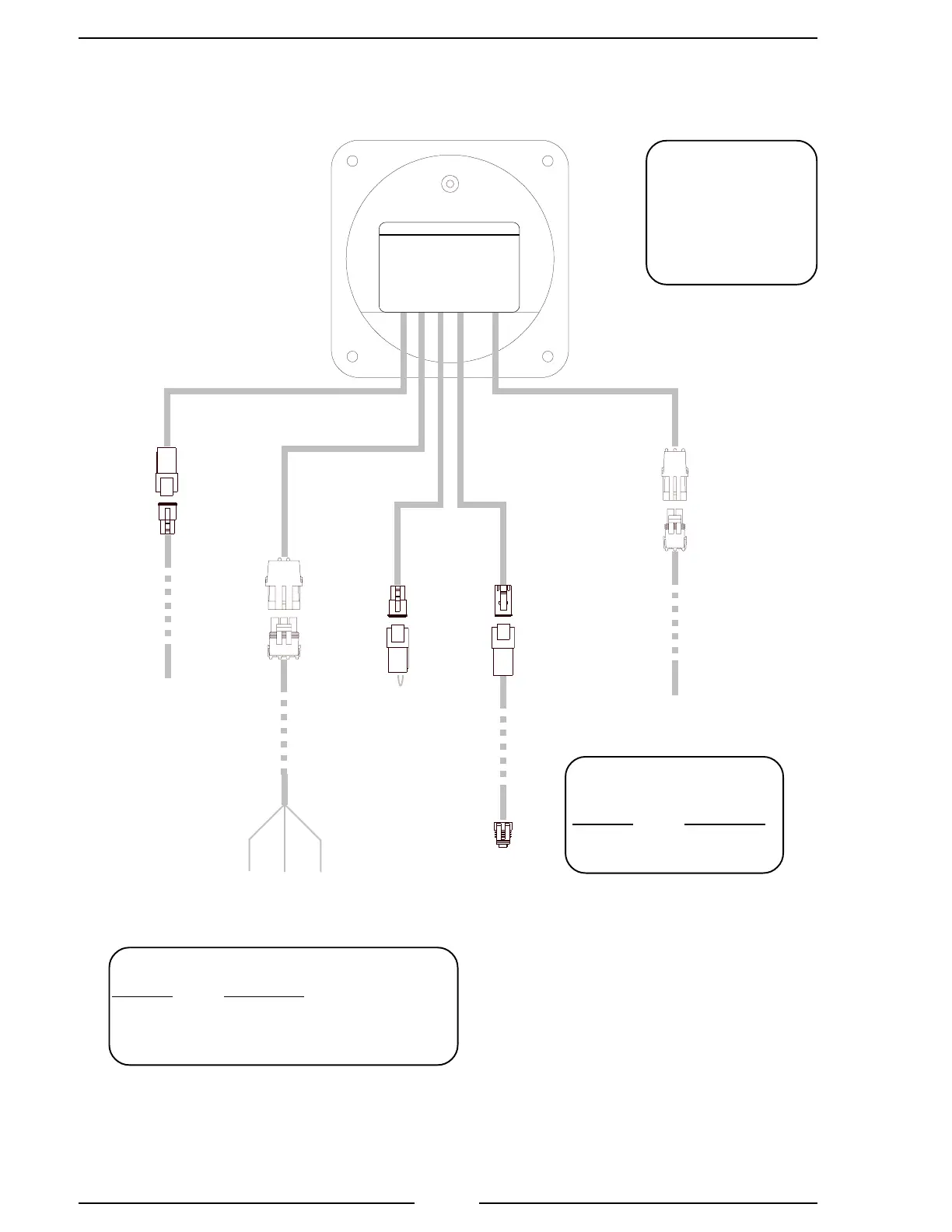

Figure 16. Mack PRO-S 7 Wiring
(Sheet 1 of 2)
Mack PRO-S 7 Cables
Power Supply
(Refer to Figure 6)
Power
Supply
Engine
Control
High Idle Cap
(Refer to Figure 7)
Pressure
Transducer
(Refer to Figure 8)
-Power Supply -Engine Control -High Idle -Pressure Sensor -Throttle -RPM Sig./ J1587
GOVERNOR
High
Idle
Pressure
Sensor
C
B
B
Engine Control
(See Sheet 2)
E
Connector Key
A 4-Pin Deutsch
B 3-Pin Deutsch
C 3-Pin Packard
D 2-Pin Packard
E 3-Pin Sensor
J1587 Datalink
(See Sheet 2)
D
J1587 Datalink
Cable Connector
Pin/Wire Description
A/Red Datalink +
B/Black Datalink –
Engine Control Cable Connector
Pin/Wire Description
A/Black Signal From Cab Foot Throttle
B/White Not Used
C/Red Signal To Engine ECM
´`¸``˜-´
`˜`˚```
A
