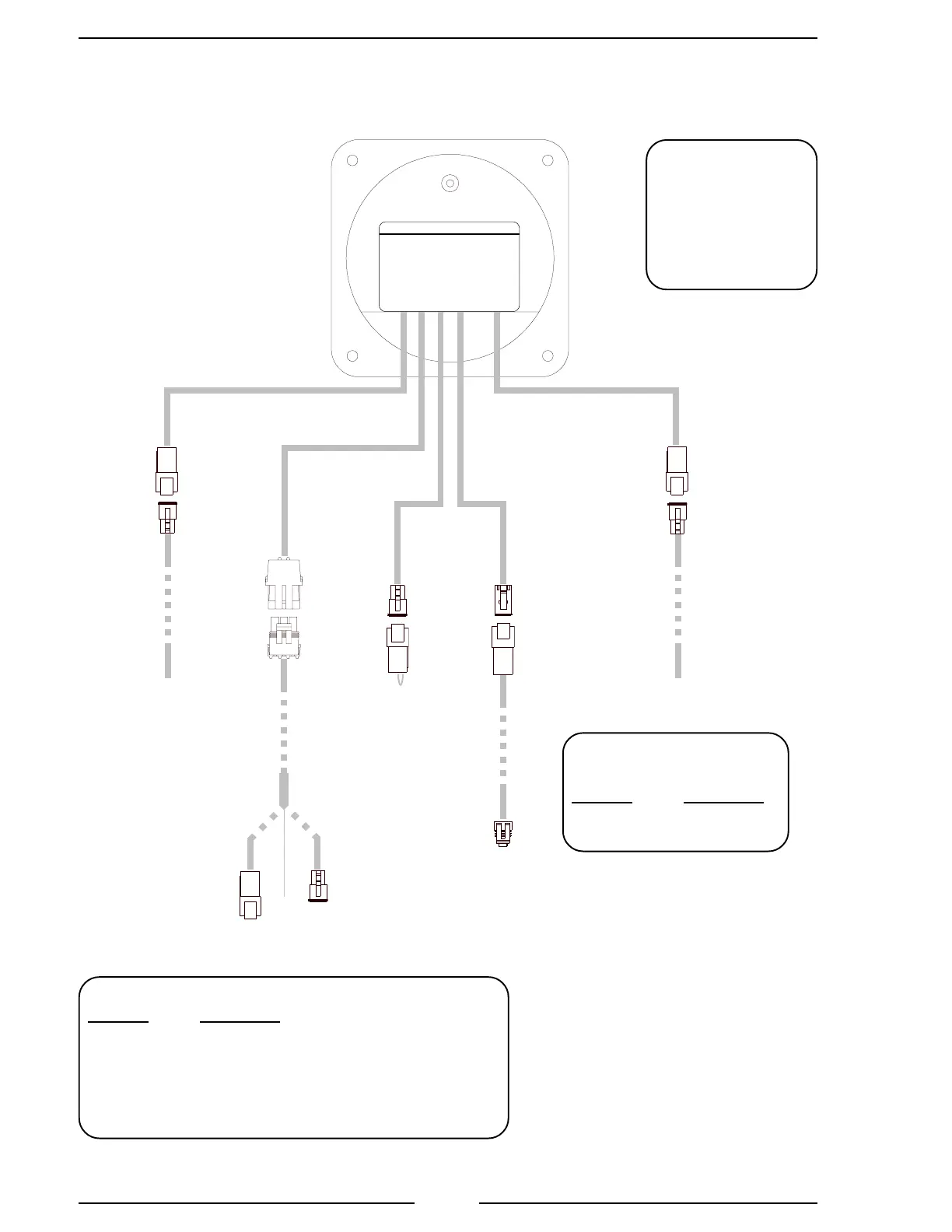

Figure 17. Scania PRO-S 8 Wiring
(Sheet 1 of 2)
Scania PRO-S 8 Cables
Power
Supply
Engine
Control
High Idle Cap
(Refer to Figure 7)
Pressure
Transducer
(Refer to Figure 8)
-Power Supply -Engine Control -High Idle -Pressure Sensor -Throttle -RPM Sig./ J1587
GOVERNOR
High
Idle
Pressure
Sensor
RPM Sig.
/ J1587
A
C
B
B
Power Supply
(Refer to Figure 6)
Engine Control
(See Sheet 2)
E
Alternator
(See Sheet 2)
D
Connector Key
A 4-Pin Deutsch
B 3-Pin Deutsch
C 2-Pin Deutsch
D 3-Pin Packard
E 3-Pin Sensor
RPM Signal
Connector
Pin/Wire Description
1/Red + Terminal
2/Black Ground
B
B
Engine Control Cable Connectors
Pin/Wire Description
A/White Idle Validation
B/Black To pin C Deutsch Plug
C/Red To pin C Deutsch Recepticle
There are two jumper wires in the harness between the
Deutsch connectors. One wire connects pins A and A; one
wire connects pins B and B.
