2008T Troubleshooting Guide
P/N 490292 Rev. A
OVER- 6.0.0 MASSIVE OVERFLOW (More than 600 ml per minute)
a) BEFORE continuing to part b, NOTE this page number then perform INITIAL CHECKS (page 7).
b) Figure right, unplug the Deaeration Pump #20 from
distribution board position “P20, Degas-P”.
c) If (and ONLY if) an “Actuator Board No Echo” OR “Failed
Sending Data To Actuator Board” banner EVER appear
there may be a problem with the Actuator-Test Board!
d)
Turn the machine on!
e) Per the Figure below, ENSURE the Deaeration Motor is
NOT rotating i.e. is unplugged!

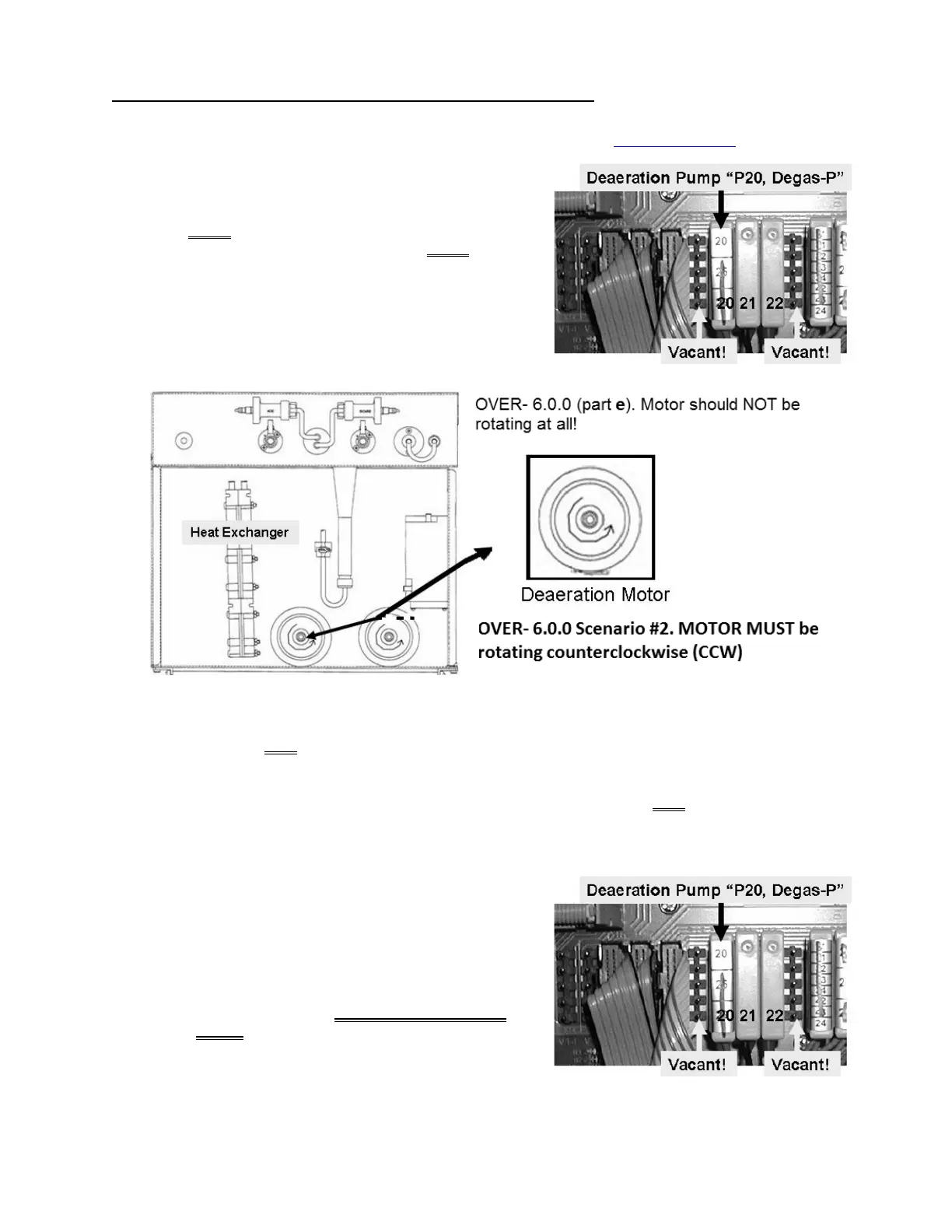

Figure 103 – Hydraulics FRONT View / Deaeration Motor
f) With the machine AND water ON allow thirty (30) seconds. TWO (2) possible scenarios
1) or 2) below:
1) IF (and ONLY if) massive overflow continues: With the machine AND water ON, see
procedure number OVER- 7.0.0 (page 595).
2) IF massive overflow STOPS: Perform parts a AND b below:
a) AVOIDING the VACANT positions, return the
Deaeration Pump’s connector to distribution board
position “P20, “Degas-P”. The Deaeration Motor
shaft rotates if plugged in properly!
b) Per Figure 103 (above), is the DEAERATION
motor shaft rotating COUNTERCLOCKWISE
(CCW) (Yes or No)?
