2008T Troubleshooting Guide
P/N 490292 Rev. A
V105SC- 2.0.0 ISOLATE ACID PUMP INPUT
a) Reattach the Acid connector’s inlet tubing!
b) Remove the hydraulics from the cabinet.

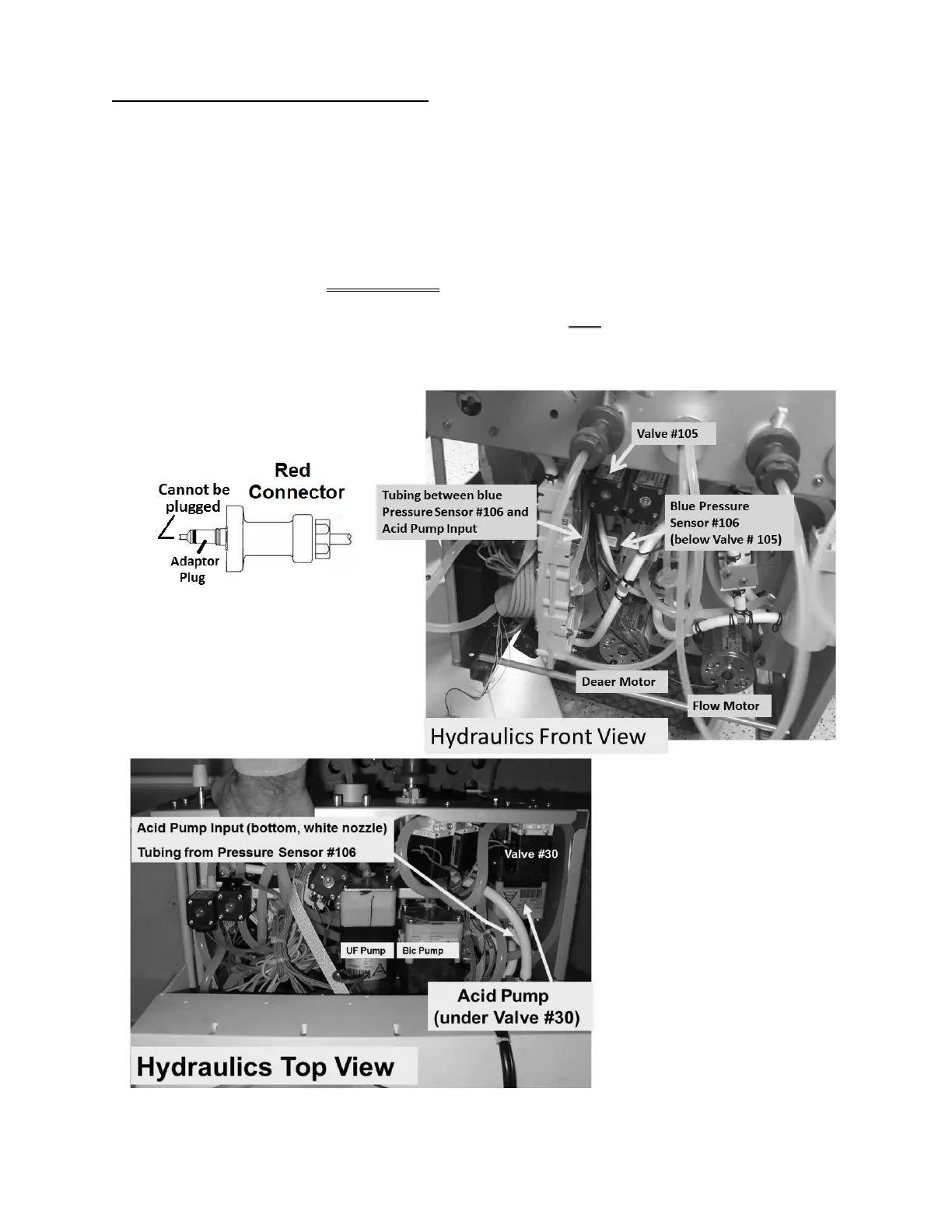

c) Per the Figures below, THREE (3) checks:
CHECK #1: Check for restrictions between the acid (red) connector and Valve #105.
CHECK #2: ENSURE the
Acid Pump’s INPUT (white) nozzle is on the bottom.
CHECK #3: ENSURE the Acid Pump’s INPUT tubing is clear AND goes, unrestricted, to the bottom of
Pressure Sensor #106.
d) See procedure number V105SC- 2.1.0 (page 750).
