Frick HPS 2709 - Vibration Data and Port Locations; Vibration Data Sheet

070.750-IOM2 (JUN 22)
Page 27
HPS 273 and 407 Rotary Screw Compressor
Forms
Date: _____________________________________ Sales order number: ____________________________
End user: __________________________________ Installing contractor: ___________________________
Address: _____________________________________ Service technician: _____________________________
Equipment ID, as in Microlog: ________________
Compressor serial number: ______________________
Unit serial number: _____________________________
National board number: _________________________
Running hours: ________________________________
Manufacturer and size of coupling: _______________
Motor Manufacturer: ___________________________
Motor serial number: ___________________________
RPM: ______ Frame size: _________ H.P. ________
Refrigerant:
Ambient room temperature: ________°F
Operating conditions:

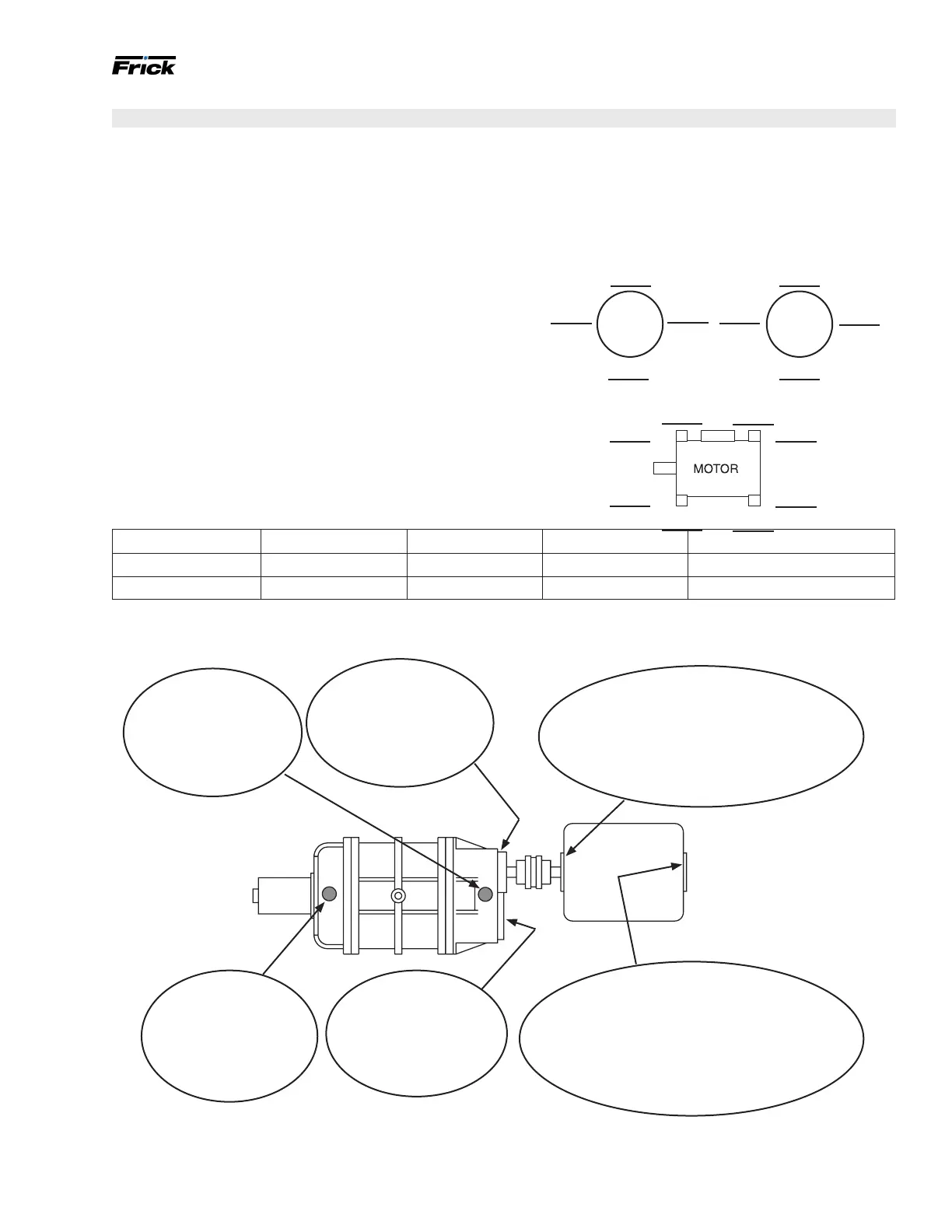

Vibration data sheet
Suction Discharge Oil Separator Slide valve position %
Press # Press # Press # Temperature °F Vi Ratio
Temperat °F Temperature °F Temperature °F FLA %
Compressor inboard,
coupling end
Vertical direction
____.____ IPS overall
Compressor inboard,
coupling end male
Axial Direction
____.____ IPS overall
Motor inboard, coupled end
Horizontal _______ . ______ IPS overall
Vertical _______ . ______ IPS overall
Axial _______ . ______ IPS overall
Compressor outboard,
nondrive end
Vertical direction
____.____ IPS overall
Compressor inboard,
coupling end female
Axial direction
____.____ IPS overall
Motor outboard, noncoupled end
Horizontal _______ . ______ IPS overall
Vertical _______ . ______ IPS overall
Axial _______ . ______ IPS Overall
Soft foot Soft foot
Soft foot Soft foot
Final hot alignment
Total thickness of shims added
Face
Rim
