Frick QUANTUM 3 - QUANTUM PANEL DC POWER SUPPLY LAYOUT (CONDOR)

FRICK

QUANTUM™ COMPRESSOR CONTROL PANEL S90-010 M
MAINTENANCE Page 33

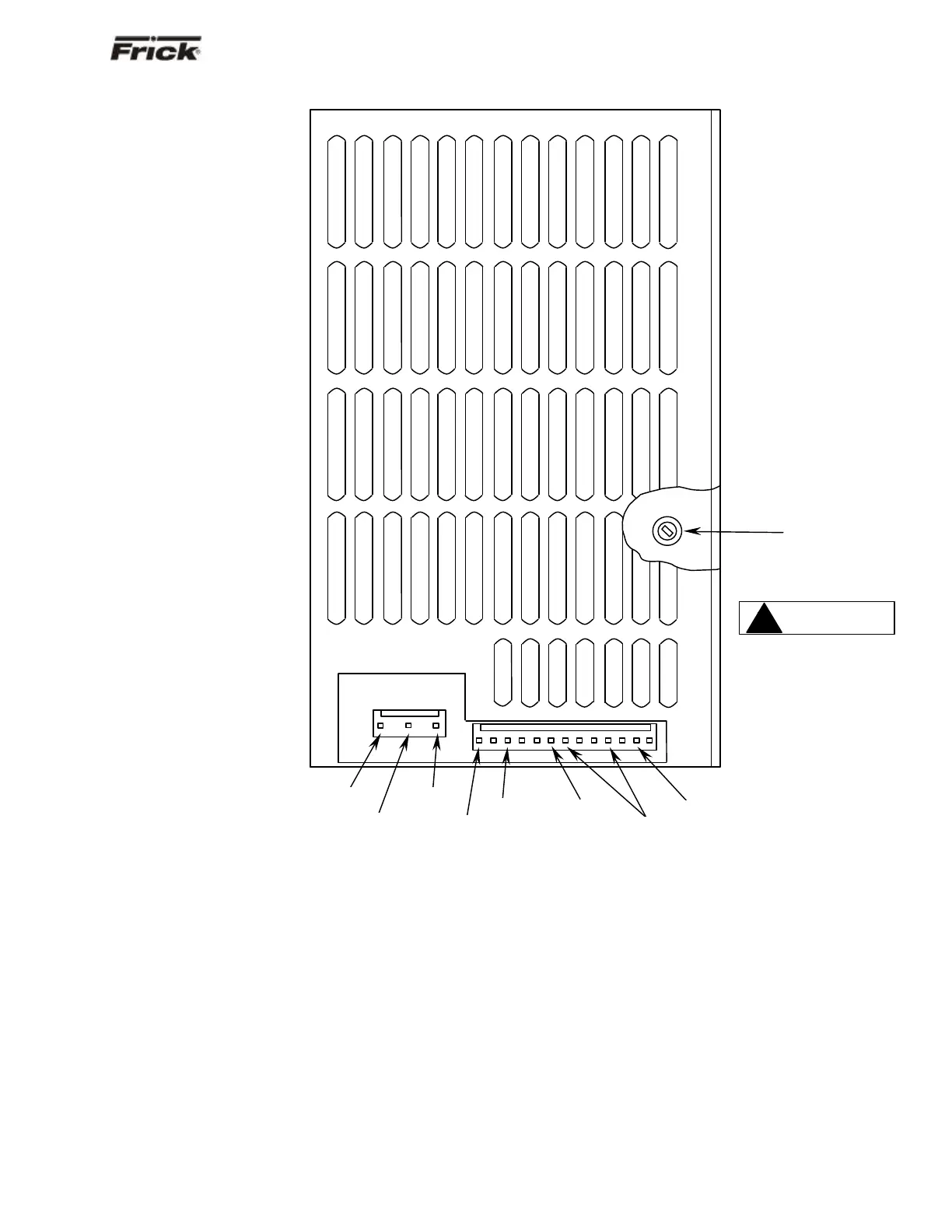

QUANTUM™ PANEL DC POWER SUPPLY LAYOUT (CONDOR)
INPUT: J1 INPUT: J2
AMP P/N: 640445-5
.312 CTR CONNECTOR, 3 CIRCUITS
AMP P/N: 1-640445-3
.156 CTR CONNECTOR, 13 CIRCUITS
Pin 1 AC GROUND PIN 1 OUTPUT #1 (+5.1V)
Pin 3 AC NEUTRAL PIN 2 OUTPUT #1 (+5.1V)
PIN 5 AC LINE PIN 3 OUTPUT #1 (+5.1V)
PIN 4 COMMON
PIN 5 COMMON
PIN 6 COMMON
PIN 7 COMMON
PIN 8 OUTPUT #2 (+24V)
PIN 9 OUTPUT #2 (+24V)
PIN 10 POWER FAIL
PIN 11 OUTPUT #3 (-12V)
PIN 12 COMMON
MATING CONNECTORS: MOLEX
HOUSING CONTACT
INPUT 26-03-4050 08-52-0113
OUTPUT 26-03-4131 08-52-0113
PIN 13 OUTPUT #4 (+12V)
Note: The Condor power supply utilizes connectors for both the AC and the DC connections. The Power One supply, on the
previous page, utilizes screw connections. Additionally, only the +5 Vdc can be adjusted on the Condor supply, whereas the
Power One supply can be adjusted for both +5 Vdc and +12 Vdc.
+5VDC
Adjustment
(cut away view)
120VAC
Neutral
Ground
+5VDC
Common
+24VDC
-12VDC
+12VDC
J1
J2
1
1
CAUTION
!
Use only a screwdriver
with an insulated shaft
to perform adjustment
(see NS-10-02 for
details).
