Producer meter
Records the load curve of individual producers (e.g. wind power
plant) in the consumption branch and provides measurement data
for energy profiling in Fronius Solar.web.
Modbus RTU secondary device
e.g. Fronius Ohmpilot, battery, etc.
Loads in the system
e.g. washing machine, lamps, TV, etc.
Additional loads in the system
e.g. heat pump
Additional producers in the system
e.g. wind power plant
Terminating resistor
R 120 Ohm
Multi-meter sys-
tem - Fronius
GEN24 inverter
If several Fronius Smart Meters are installed, a separate address must be set for
each one (see Advanced settings on page 48). The primary meter is always as-
signed address 1. All the other meters are numbered consecutively with the ad-
dress range from 2 to 14. Different Fronius Smart Meter power categories can be
used in combination.
IMPORTANT!
Max. 7 secondary meters may be used in the system. A data connection via RTU
as well as TCP is possible. To avoid interference, it is recommended to install the
terminating resistors according to chapter Setting the Modbus RTU terminating
resistor on page 25.
00
1
6
7
00
1
6
7
1
00
1
6
7
2
00
1
6
7
2
00
1
6
7
*
*
Data communication
*
*
Data communication
M0
M1

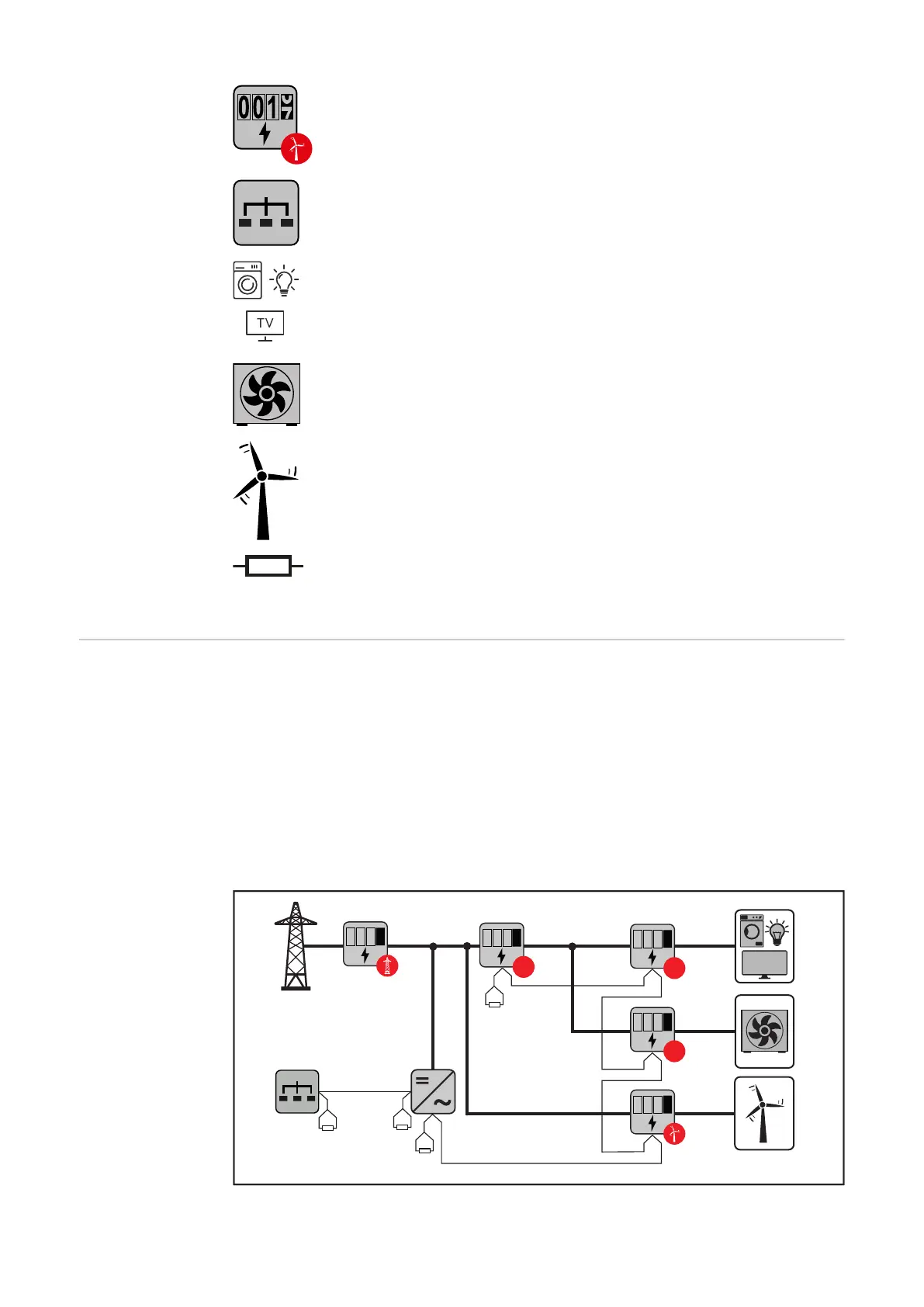

Location of the primary meter in the consumption branch. *Terminating resistor R 120 Ohm
