Fronius Symo 5.0-3-M Service Manual & Spare Parts List

103
EN-US

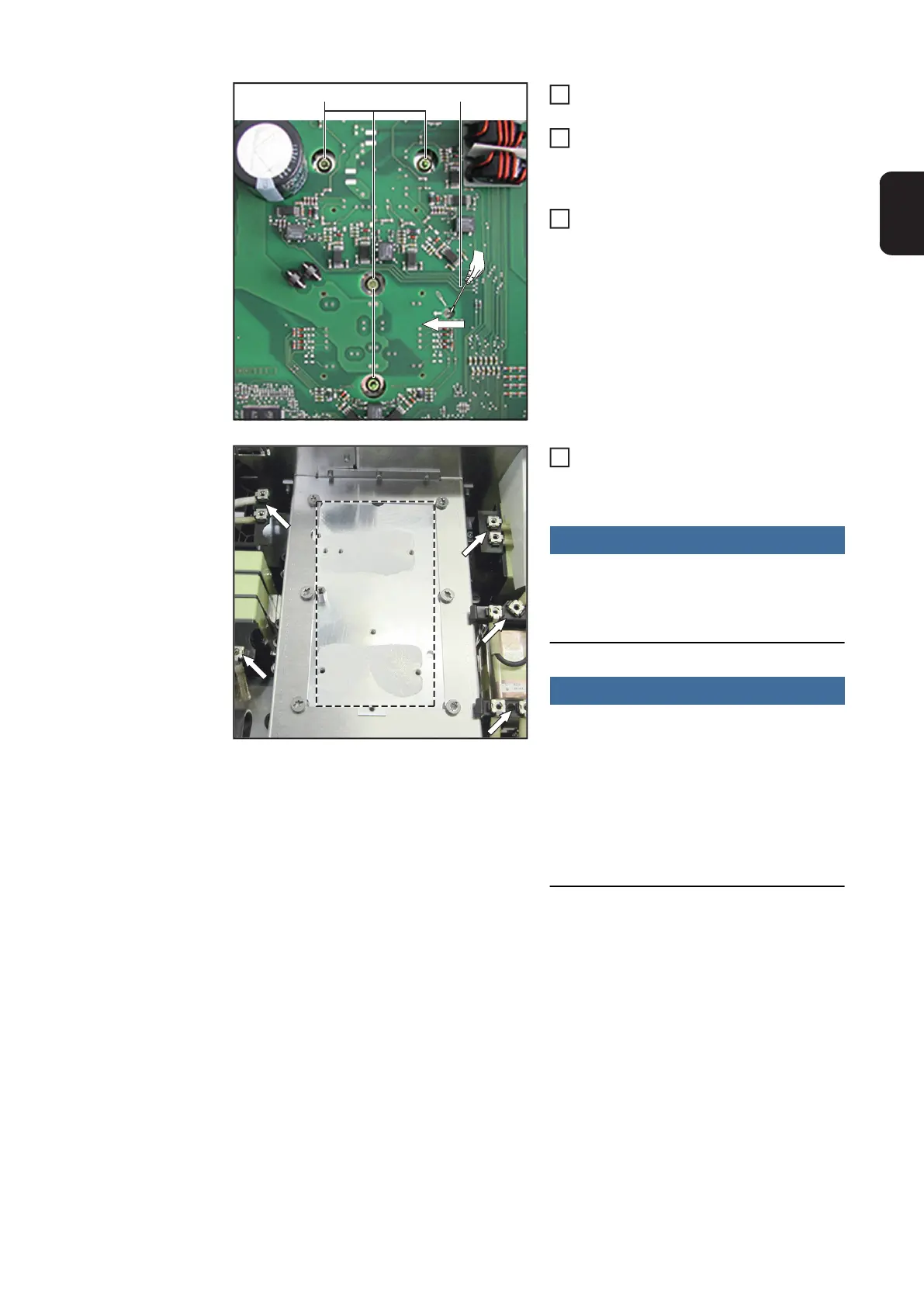

Undo the four 4x9 TX20 screws (6) on
the modules
Insert the screwdriver in the "Remove
PC board" (7) hole and unfasten the
SymoPS from the heat sink in the di-
rection indicated by the arrow
Remove SymoPS
Remove any old PCM paste residues
from the heat sink using a clean cloth
NOTE!
Ensure you remove all PCM paste resi-
dues
NOTE!
When the SymoPS is returned, the mo-
dules must also be cleaned with a clean
cloth.
- Take the PCM film from the small parts kit
- Position it on the modules and smooth it
out
- Ensure that all the protective film is remo-
ved!
Inserting the SymoPS:
(6) (7)
4
5
6
10

Fronius Symo 5.0-3-M Specifications

General

AC Nominal Output	5.0 kW
Max. Input Voltage	1000 V
MPPT Voltage Range	200 - 800 V
Number of MPP Trackers	2
Dimensions (H x W x D)	645 x 431 x 204 mm
Weight	19.9 kg
Protection Rating	IP 65
Operating Temperature Range	-25°C to +60°C
Max. Apparent AC Power	5.0 kVA
AC Nominal Voltage	3~ 230/400 V
AC Voltage Range	184 - 264.5 V
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
Maximum AC Power	5000 VA
AC Nominal Frequency	50/60 Hz
DC Input Voltage Range	200 - 1000 V
Number of DC Connections	2
Max. DC Short-circuit Current	18.0 A
Cooling	Active cooling
