Fronius Symo 5.0-3-M Service Manual & Spare Parts List

93
EN-US
Use a slotted screwdriver to undo the
expanding rivets (2)
Remove the internal fan
Inserting the Internal Fan:
NOTE!
Ensure the air is flowing into the device!
Insert the internal fan
Use a slotted screwdriver to press in
the expanding rivets (2)
Thread in the fan cable (1) and connect
to SymoPS
Close the inverter and place it in the
wall bracket (see "Opening and Clo-
sing the Device")
After switching on the inverter, carry out a
fan test via the display (see Operating Inst-
ructions)

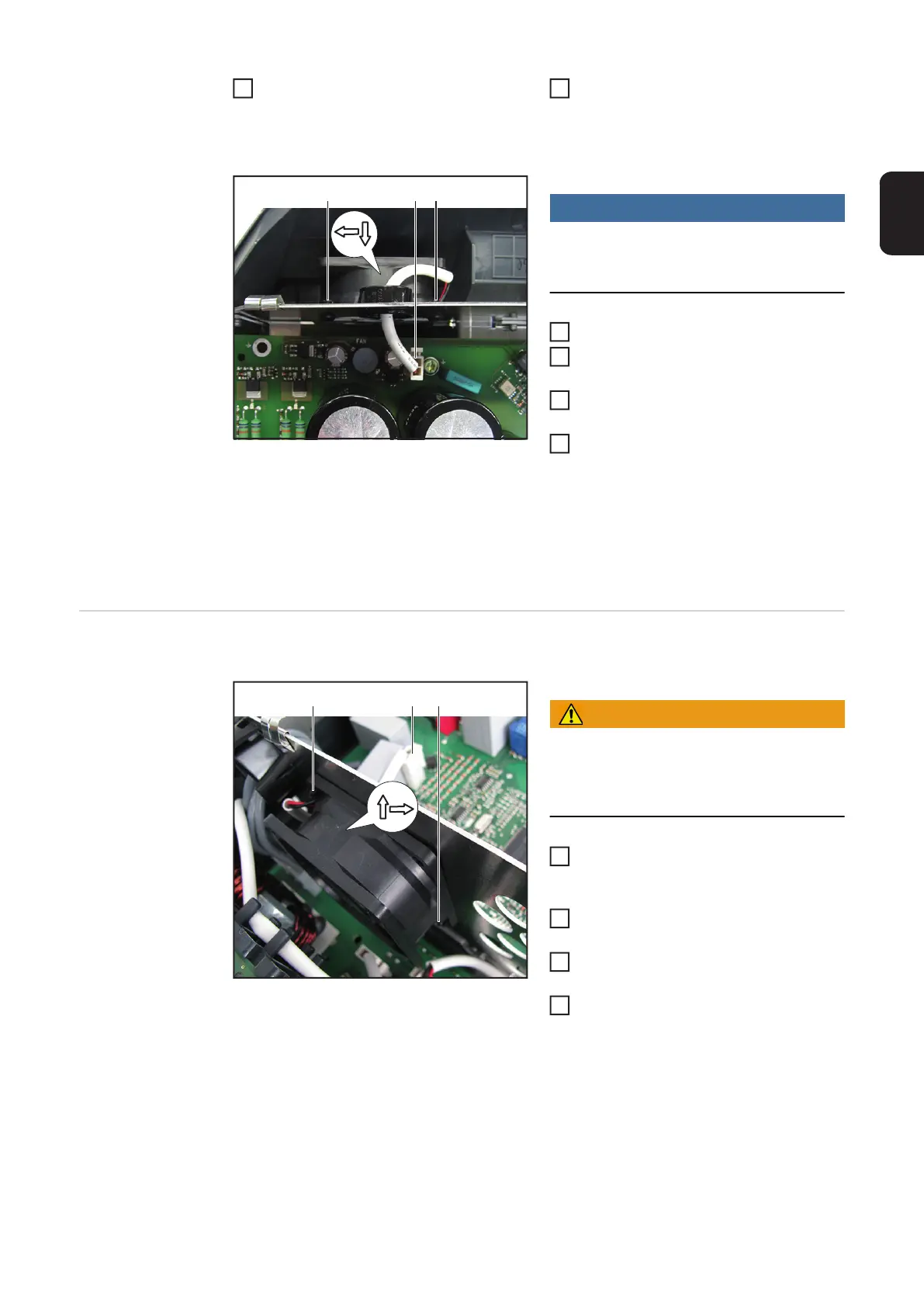

Replacing the 8k2
Internal Fan
Removing the Internal Fan:
WARNING!
Follow the safety rules (see the begin-
ning of the "Safety" section)
Take the inverter out of the wall bra-
cket and open it (see "Opening and
Closing the Device")
Disconnect and pull out the fan cable
(1) from the SymoPS
Use a slotted screwdriver to undo the
expanding rivets (2)
Remove the internal fan
Inserting the Internal Fan:
3 4
(1) (2)(2)
1
2
3
4
(1)
(2)(2)
1
2
3
4

Fronius Symo 5.0-3-M Specifications

General

AC Nominal Output	5.0 kW
Max. Input Voltage	1000 V
MPPT Voltage Range	200 - 800 V
Number of MPP Trackers	2
Dimensions (H x W x D)	645 x 431 x 204 mm
Weight	19.9 kg
Protection Rating	IP 65
Operating Temperature Range	-25°C to +60°C
Max. Apparent AC Power	5.0 kVA
AC Nominal Voltage	3~ 230/400 V
AC Voltage Range	184 - 264.5 V
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
Maximum AC Power	5000 VA
AC Nominal Frequency	50/60 Hz
DC Input Voltage Range	200 - 1000 V
Number of DC Connections	2
Max. DC Short-circuit Current	18.0 A
Cooling	Active cooling
