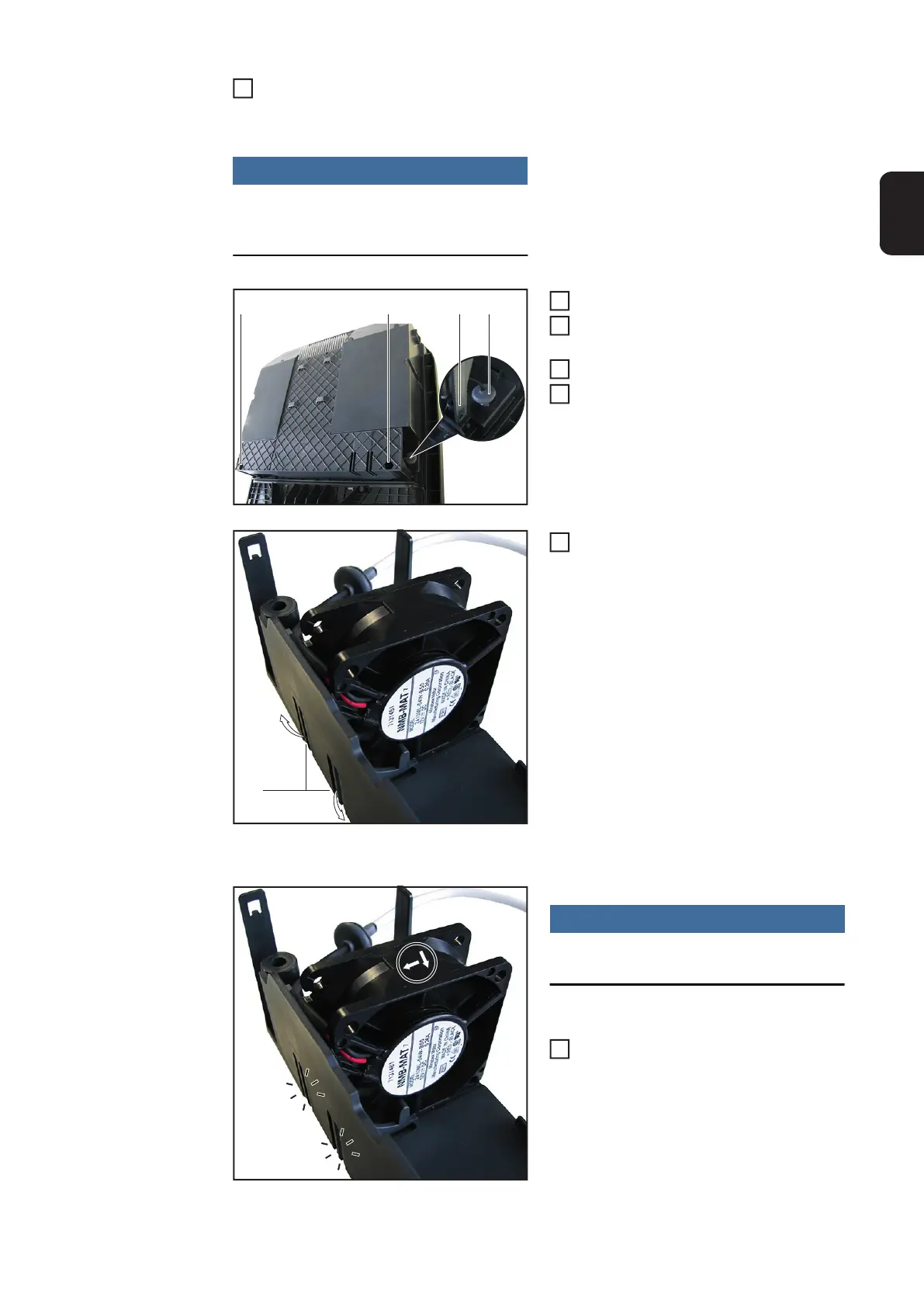

Disconnect fan cable (1) on SymoFIL
and remove from the cable guide (2)
NOTE!
Turn the inverter carefully so that the
back of the inverter is accessible.
Undo the two 5x14 TX25 screws (3)
Loosen the locks (6) for the air duct on
both sides
Remove the seal plugs (4)
Carefully remove the air duct and en-
sure that the fan cable is pulled out
Push both fan holders (5) outwards
and remove the external fan
Inserting the External Fan:
NOTE!
Ensure the air is flowing into the device!
Snap the new external fan into the air
duct
2
(3) (3) (4)
(6)
3
4
5
6
(5)
7
1

Fronius Symo 5.0-3-M Specifications

General

AC Nominal Output	5.0 kW
Max. Input Voltage	1000 V
MPPT Voltage Range	200 - 800 V
Number of MPP Trackers	2
Dimensions (H x W x D)	645 x 431 x 204 mm
Weight	19.9 kg
Protection Rating	IP 65
Operating Temperature Range	-25°C to +60°C
Max. Apparent AC Power	5.0 kVA
AC Nominal Voltage	3~ 230/400 V
AC Voltage Range	184 - 264.5 V
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
Maximum AC Power	5000 VA
AC Nominal Frequency	50/60 Hz
DC Input Voltage Range	200 - 1000 V
Number of DC Connections	2
Max. DC Short-circuit Current	18.0 A
Cooling	Active cooling
