Fronius Symo 5.0-3-M Service Manual & Spare Parts List

98

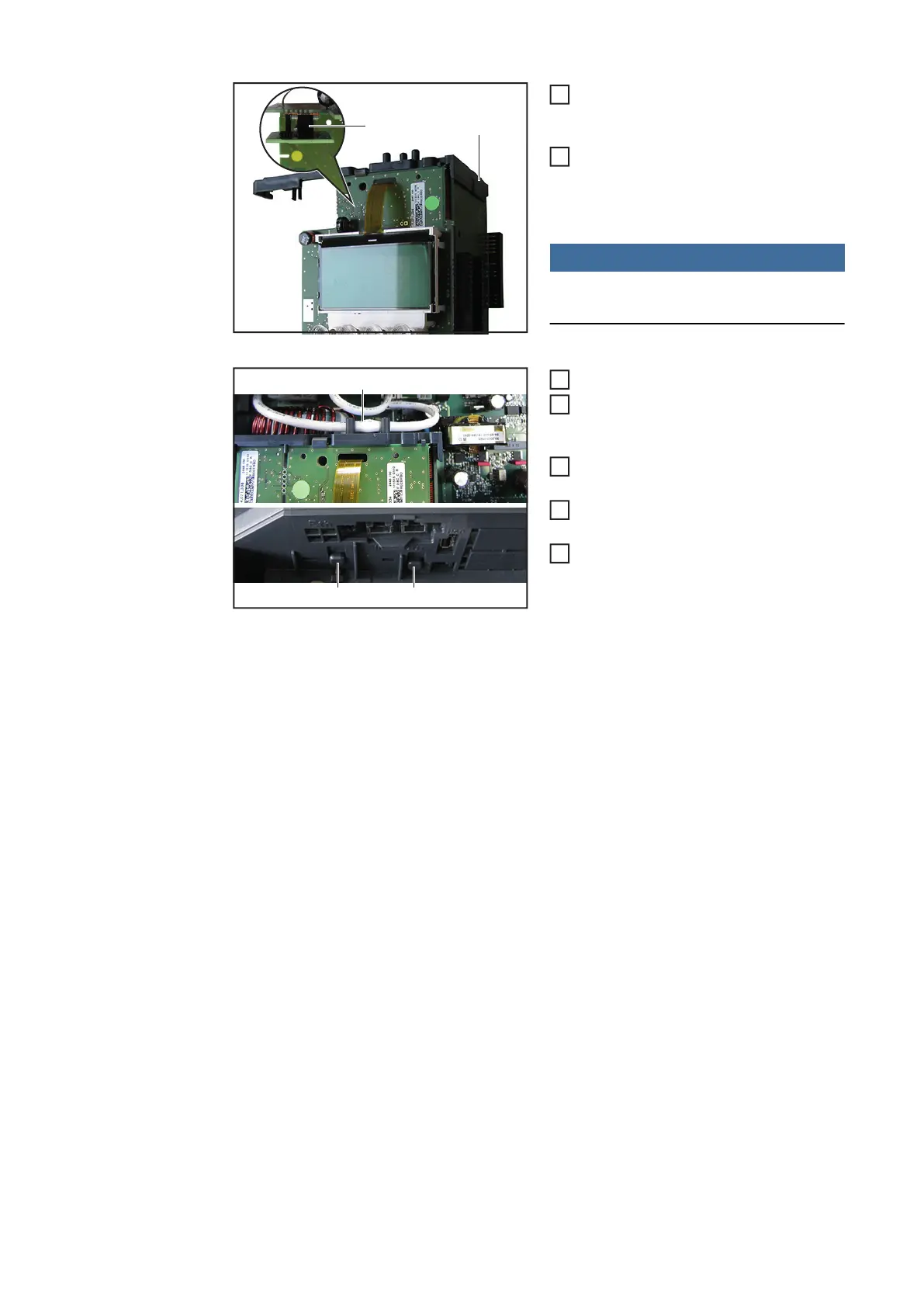

Insert the snap-off PC board (4) on the
inner side of the new Recerbo after dis-
mantling it
Mount the Recerbo holder (3) on the
new Recerbo
- thread the wire up
- press down
NOTE!
All guide pins and bolts must be snap-
ped into place
Insert the new Recerbo assembly
The locks (2) on the Recerbo holder
must be snapped completely into place
in the housing frame
Insert the external fan cable in the cab-
le guide (1)
Reconnect all connections to the
Recerbo
Insert the Datamanager card, close the
inverter and insert into the wall bracket
(see "Replacing the Datamanager
Card" and "Opening and Closing De-
vice" sections)
(4) (3)
2
3
(1)
(2) (2)
4
5
6
7
8

Fronius Symo 5.0-3-M Specifications

General

AC Nominal Output	5.0 kW
Max. Input Voltage	1000 V
MPPT Voltage Range	200 - 800 V
Number of MPP Trackers	2
Dimensions (H x W x D)	645 x 431 x 204 mm
Weight	19.9 kg
Protection Rating	IP 65
Operating Temperature Range	-25°C to +60°C
Max. Apparent AC Power	5.0 kVA
AC Nominal Voltage	3~ 230/400 V
AC Voltage Range	184 - 264.5 V
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
Maximum AC Power	5000 VA
AC Nominal Frequency	50/60 Hz
DC Input Voltage Range	200 - 1000 V
Number of DC Connections	2
Max. DC Short-circuit Current	18.0 A
Cooling	Active cooling
