118

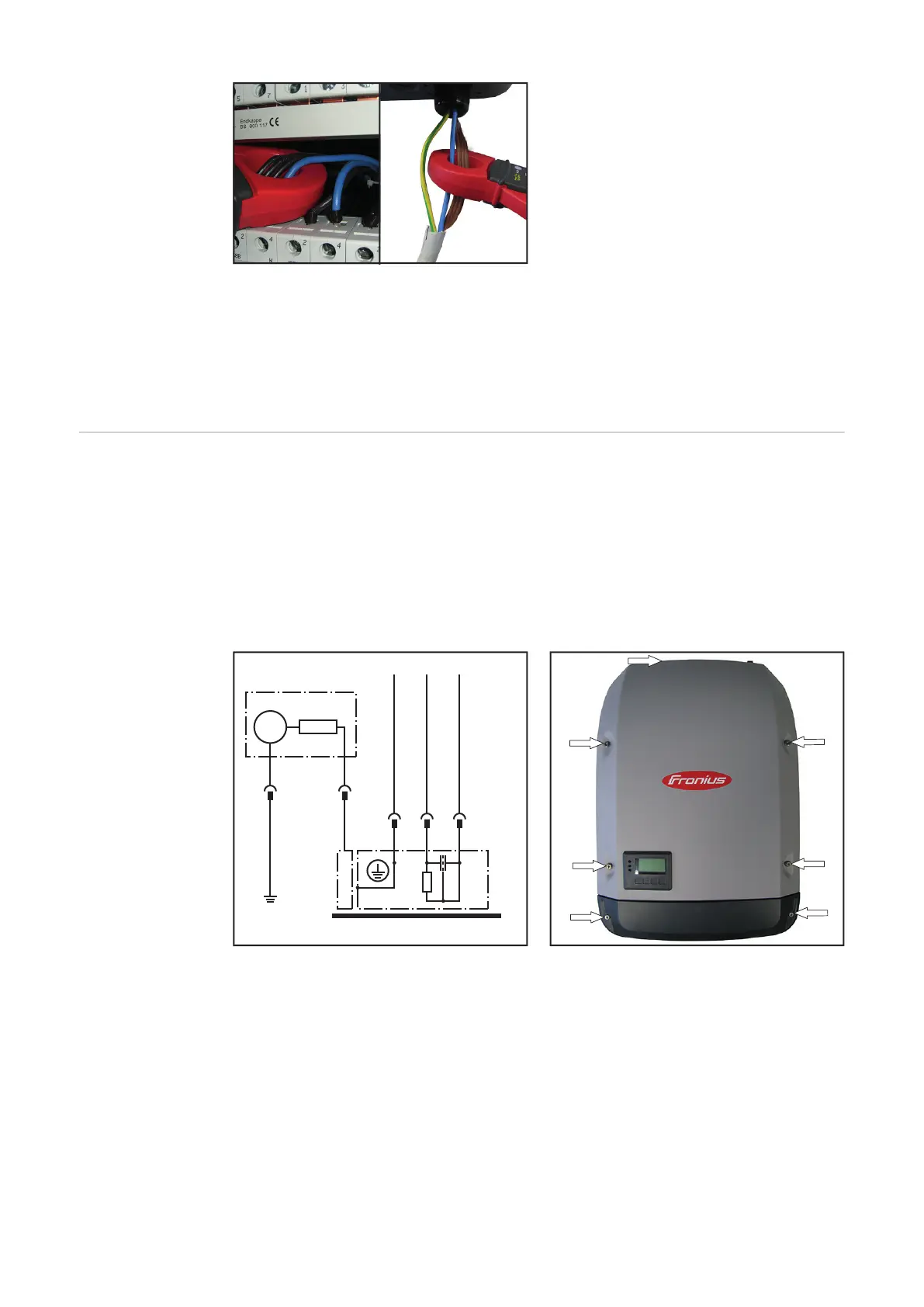

Examples for measuring the ground conductor current
When carrying out the measurement (direct or differential current process), the ground
conductor current must not exceed the limit value of 3.5 mA **).
**) These requirements relate to DIN VDE 0701-0702 and ÖVE/ÖNORM E8701-1. In ad-
dition, individual national requirements and standards must also be observed.
Contact Current - Measurement should only be carried out once measurement of ground conductor cur-
rent has been carried out successfully
- The device must remain in operation.
Measurements are taken between a grounded point and the touchable, conductive part
which is not connected with the ground conductor.
The contact current must not exceed 0.5 mA *).
1 Measuring instrument
2 Inverters
6.2 Touchable, conductive part not connected to the
ground conductor
8 Insulated assembly of the object being tested
9 Measurement leads
Ri 1 - 2 kΩ
6.2 Touchable, conductive part not connection to the
ground conductor
*) These requirements comply with DIN VDE 0701-0702 and ÖVE/ÖNORM E8701-1. Also
refer to the applicable requirements and standards in your country.
PE
mA
L1
1
2
9
N
PE L1 N
9
8
6.2
R
i
1-2kΩ
