NOTE!
Requirements for electrical installations may be subject to national standards and
regulations, and these must be followed accordingly.
A safety inspection must be carried out after the replacement, modification, maintenance
or repair of a component (see section "Safety Inspection").
Measuring the In-
termediate Circuit
Voltage
WARNING!
Danger of electric shock! Despite the presence of a discharge circuit, a dangerous
level of voltage can still be present in the intermediate circuit for a long time.
In order to ensure a safe work environment, wait for the discharge time to elapse and then
measure the intermediate circuit voltage with an appropriate measuring device. The volt-
age must not exceed 30 V DC. The measuring points are illustrated in the following images.

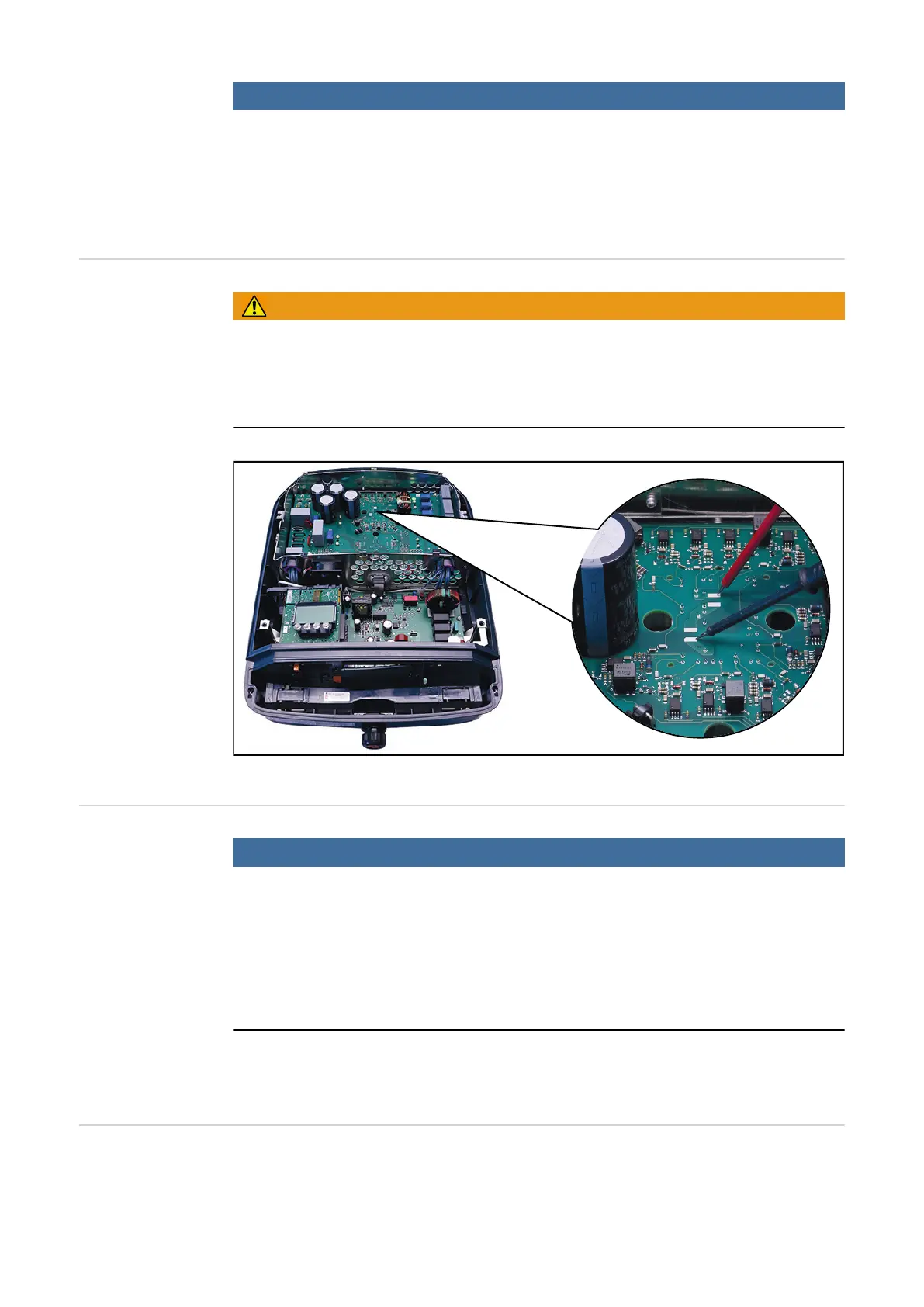

Fronius Symo measuring points
ESD Guidelines
NOTE!
Observe ESD guidelines when handling electronic components and PC boards.
This applies primarily to ESD-compatible
► Packaging
► Work surfaces
► Floors
► Seating
► Grounding options
► Handling
No guarantee or warranty claims can be made in respect of any improperly handled elec-
tronic component or PC board.
General The "Replacing components" chapter describes how to replace components which
- do not have an accompanying description for their replacement and
- which need a complete replacement description
