Fronius SYMO Series Service Manual & Spare Parts List

91
EN-US

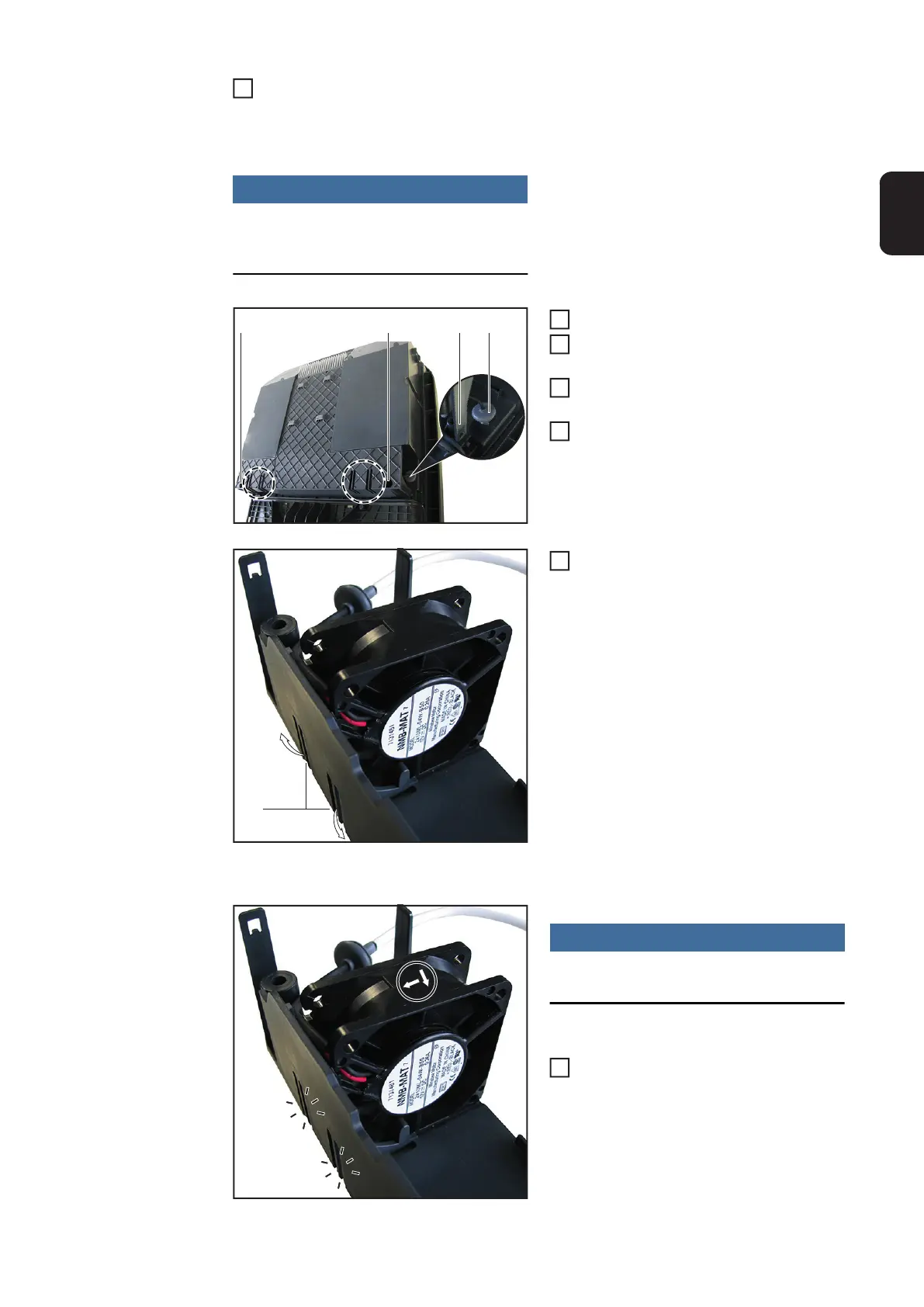

Disconnect both fan cables (1) from
the SymoFIL and remove the lower ca-
ble from the cable guide (2)
NOTE!
Turn the inverter carefully so that the
back of the inverter is accessible.
Undo the two 5x14 TX25 screws (3)
Loosen the locks (6) for the air duct on
both sides
Remove the seal plugs (4) on both si-
des
Carefully remove the air duct and en-
sure that the fan cables are pulled out
Push the fan holders (5) outwards on
both sides and remove the external fan
Inserting the External Fan:
NOTE!
Ensure the air is flowing into the device!
Snap the new external fan into the air
ducts
2
(3) (3) (4)
(6)
3
4
5
6
(5)
7
1

Fronius SYMO Series Specifications

General

MPPT Number	2
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Communication	WiFi, Ethernet, RS485
AC Nominal Voltage	3 x 230 V / 400 V
Output Voltage	3 x 230 V / 400 V
Warranty	5 years
