Fronius SYMO Series Service Manual & Spare Parts List

98

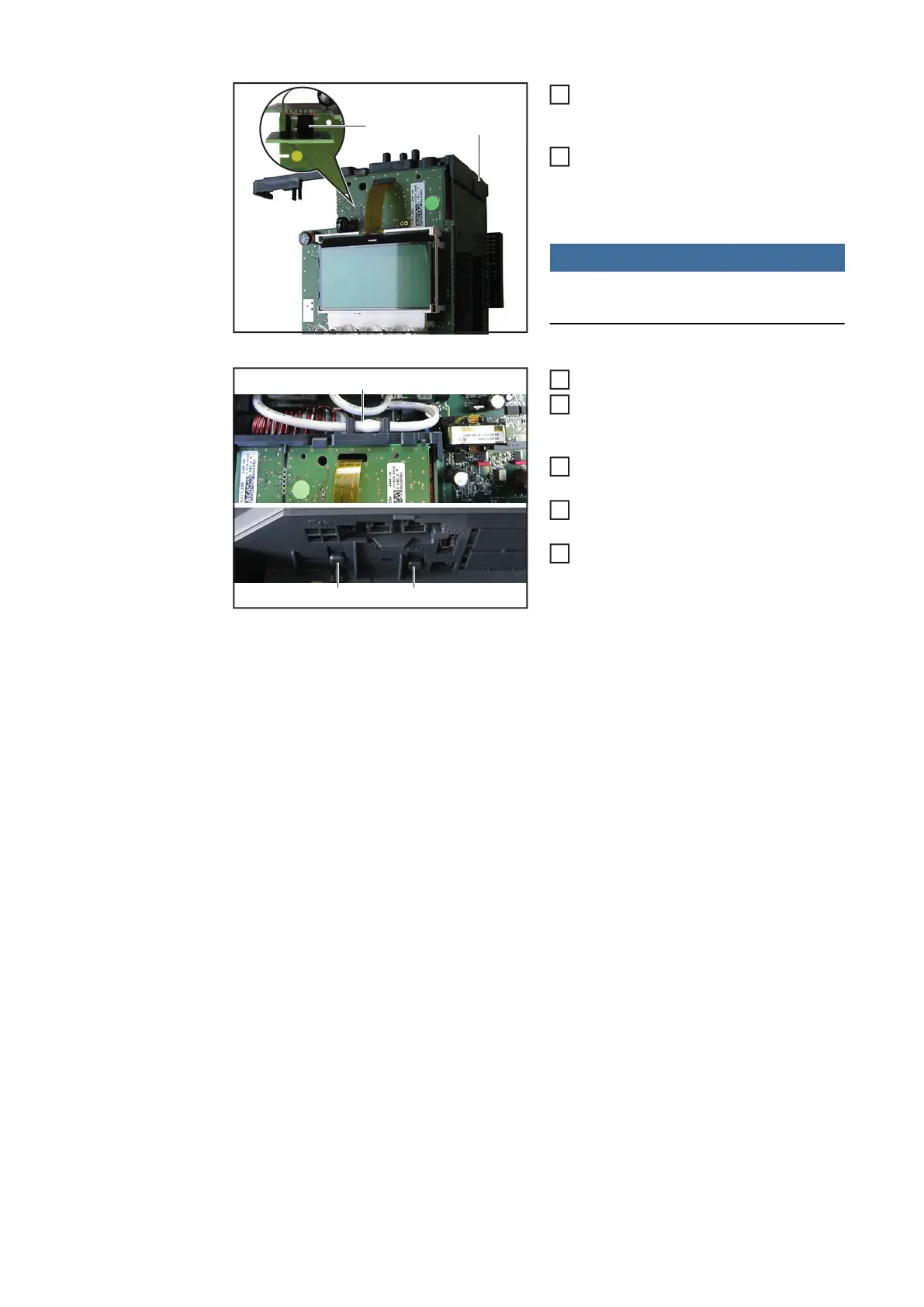

Insert the snap-off PC board (4) on the
inner side of the new Recerbo after dis-
mantling it
Mount the Recerbo holder (3) on the
new Recerbo
- thread the wire up
- press down
NOTE!
All guide pins and bolts must be snap-
ped into place
Insert the new Recerbo assembly
The locks (2) on the Recerbo holder
must be snapped completely into place
in the housing frame
Insert the external fan cable in the cab-
le guide (1)
Reconnect all connections to the
Recerbo
Insert the Datamanager card, close the
inverter and insert into the wall bracket
(see "Replacing the Datamanager
Card" and "Opening and Closing De-
vice" sections)
(4) (3)
2
3
(1)
(2) (2)
4
5
6
7
8
