Fronius TransPocket 5000 CEL - TP 08 Remote Control

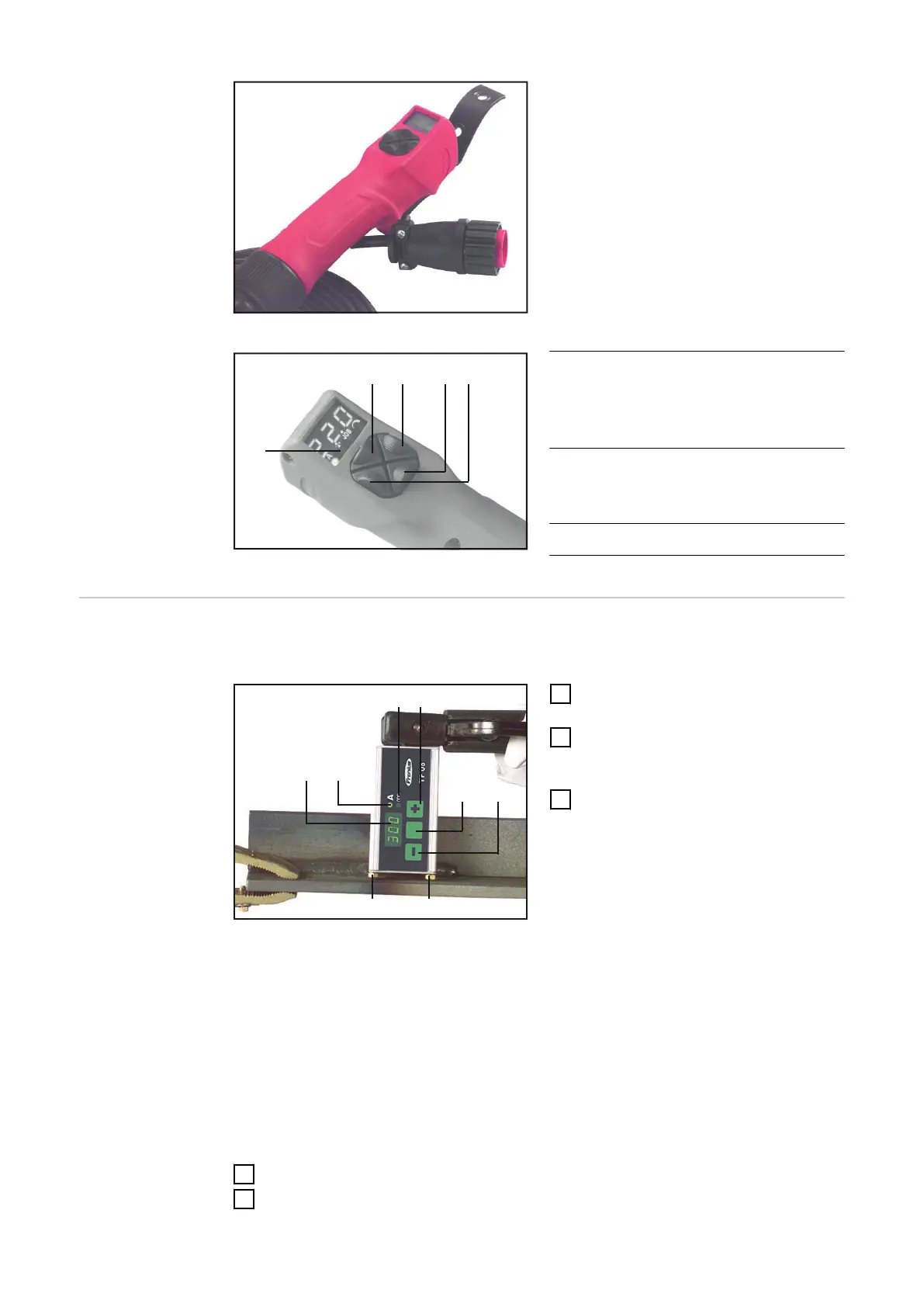

TR 1100 remote control
(2)
(1)
(1)
(2)
(3)
TR 1000 / TR 1100 operating concept
(1) Parameter display button(s)
For selecting the parameter to
be displayed (welding current,
etc.)
(2) Parameter setting buttons(s)
For changing the selected para-
meter
(3) Welding current parameter
TP 08 remote
control
System requirements
-
Software version 2.81.1
(4)
(4)
(5) (6)
(7) (2)
(1) (3)
TP 08 remote control
1
Press the "Process" button to
select the MMA welding process
2
Secure the earthing clamp to the
workpiece and clamp the electrode
holder to the TP 08 remote control
3
Place the TP 08 on the workpiece
so that a tight connection is crea-
ted between the workpiece and the
two contacts (4)
The welding voltage is applied to the welding sockets with a 3-second time lag.
The TP 08 remote control is then supplied with the welding voltage and the indi-
cator (5) lights up.
If the TP 08 remote control has been connected since the power source was last
switched on, the current and arc-force dynamic can only be set on the TP 08 re-
mote control.
To restore the current and arc-force dynamic setting option on the power source
and other system add-ons:
1
Disconnect TP 08
2
Switch the power source off and back on again
80
