Mounting the Everywhere trolley
Safety
WARNING!
Risk of electric shock.
If the device is plugged into the mains during installation, there is a high risk of
serious injury and damage to property.
▶
Only carry out work on the device if the mains switch is in the "O" position.
▶
Only carry out work on the charger when it has been disconnected from the
mains supply.

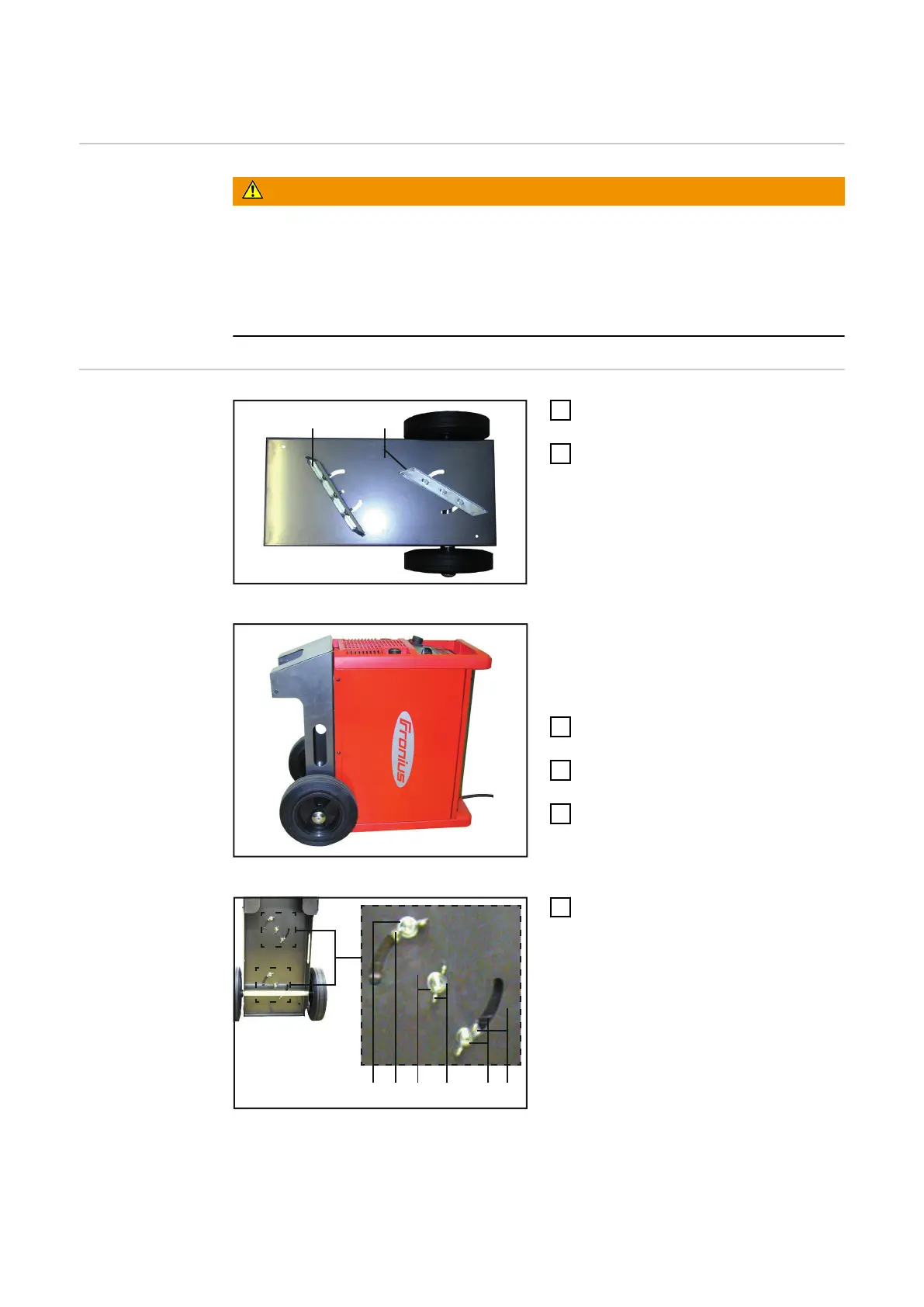

Fitting the power
source to the
trolley
(1)
(1)
Inserting the locking devices
1
Insert the locking devices (1) in the
holes on the trolley base
2
Position the locking devices (1) at
an angle as far as they will go
Power source and trolley
IMPORTANT! When positioning the
power source vertically, make sure that
the mains cable is not kinked, pinched
or strained.
3
Carefully position the power
source vertically at the rear
4
Carefully position the trolley verti-
cally at the rear
5
Push the trolley against the power
source so that the trolley and the
power source are centrally aligned
opposite each other
(2)(3)(3) (2) (3)(2)
X
Positioning the shims and wing nuts
6
Position the shims (2) on the six
threaded bolts and slightly tighten
wing nuts (3)
