TransTig
2500 / 3000

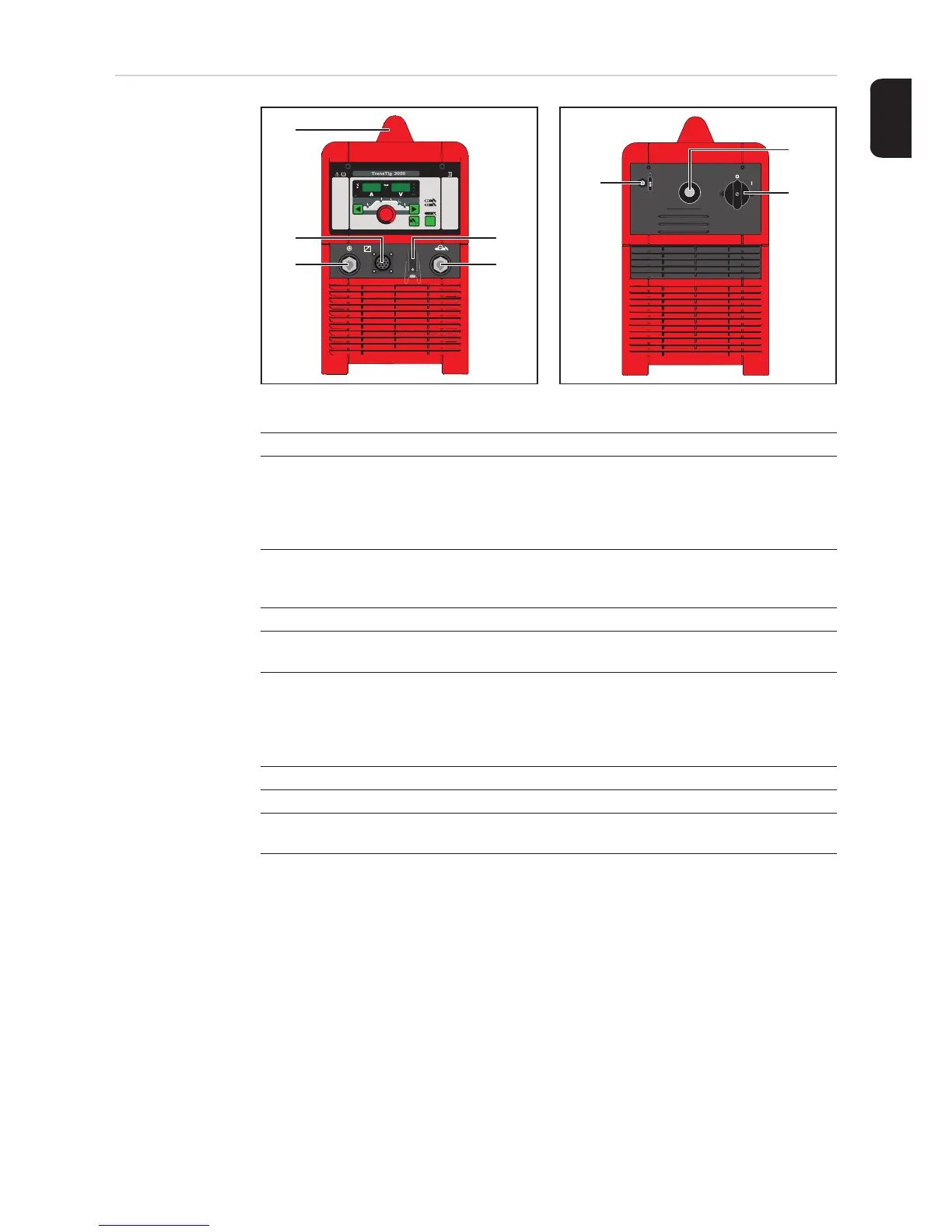

TransTig 2500 / 3000 - front TransTig 2500 / 3000 - rear
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
No. Function
(1) (+) current socket with bayonet latch
for connecting
- the grounding (earthing) cable when TIG welding
- the electrode cable or grounding (earthing) cable during MMA welding (de-
pending on the type of electrode)
(2) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control, JobMas-
ter TIG welding torch, etc.)
(3) Handle
(4) Torch control connection
for connecting the control plug of a conventional welding torch
(5) (-) current socket with bayonet latch
for connecting
- the TIG welding torch
- the electrode cable or grounding (earthing) cable during MMA welding (de-
pending on the type of electrode)
(6) Shielding gas connection
(7) Mains cable with strain relief device
(8) Mains switch
for switching the power source on and off
