ATTACHING AND DETACHING

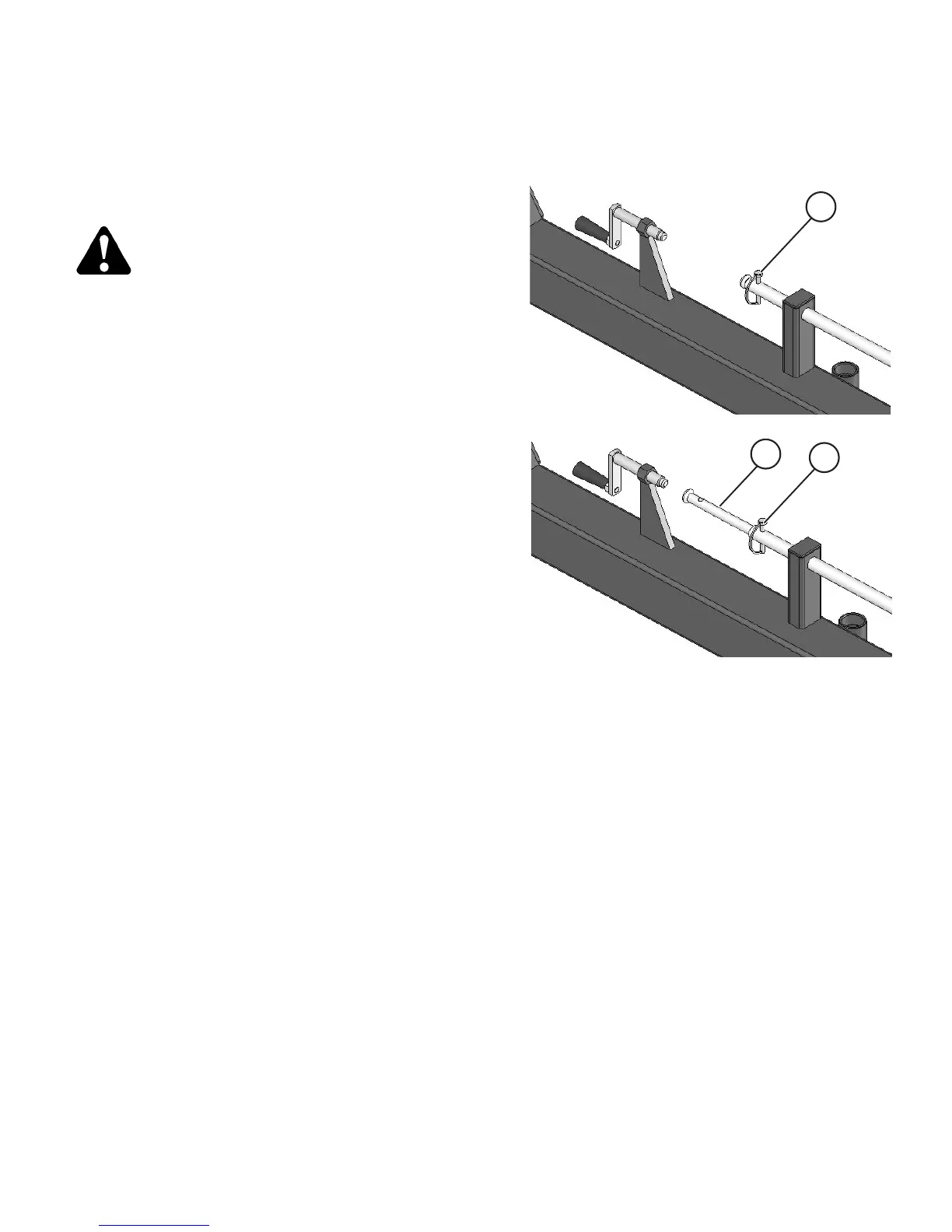

DETACHING RAKE FROM TRACTOR
A—Pin in Operating Position
B—Pipe
C—Pin in Transport Position
CAUTION: To prevent personal injury caused by
unexpected movement:
• Park machines on a level surface.
• Engage tractor parking brake and/or place
transmission in “Park.”
• Shut off tractor engine and remove key.
1. Fold and lock rake frame arms in transport position.
(See Preparing Rake for Transport in the Transporting
section.)
2. Lower rake wheels, or raise rake wheels fully and lock
in transport position.
If rake wheels are raised:
• Remove spring-clip pin from operating position (A).
• Pull short pipe (B) out and align pipe holes. Install
spring-clip pin in transport position (C).
3. Park rake on a level surface, or block ground wheels
so machine cannot roll after detaching from tractor.
4. Engage tractor parking brake and/or place transmission
in ’Park.”
5. Shut off tractor engine and remove key.
19
6. Push tractor SCV levers to the float position.
7. Lower jackstand and fasten with pin.
8. Adjust rake hitch to support the weight of rake on
jackstand.
